SW-PB8 Series
Manufacturer: Adam Tech
Beta
⌘K
SNAP-ACTING PUSHBUTTON SWITCH, B
| Part | Termination Style | Switch Function | Circuit | Mounting Type | Voltage Rating - DC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Type | Actuator Marking | Color - Actuator/Cap | Current Rating (Amps) | Actuator Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

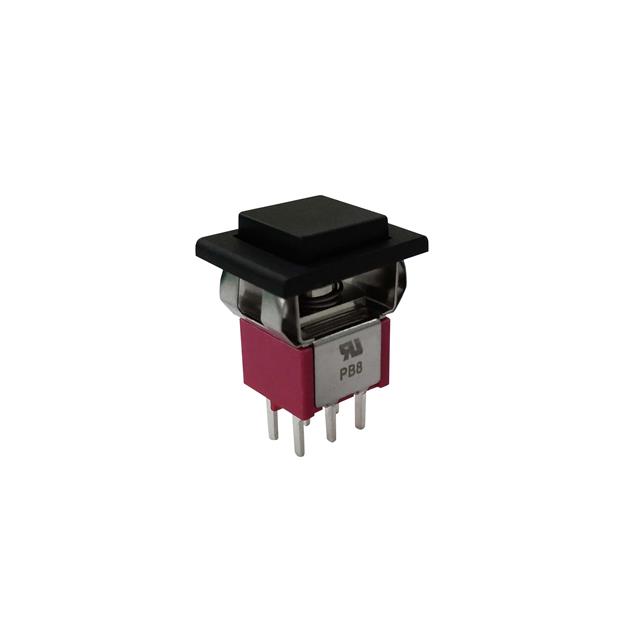

 Adam Tech | PC Pin | On-Mom | DPDT | Panel Mount Snap-In | 38 V | 15.24 mm | 12.7 mm | Standard | No Marking | Black | 1 A | Button Square | 120 V | 85 °C | -30 ░C | |

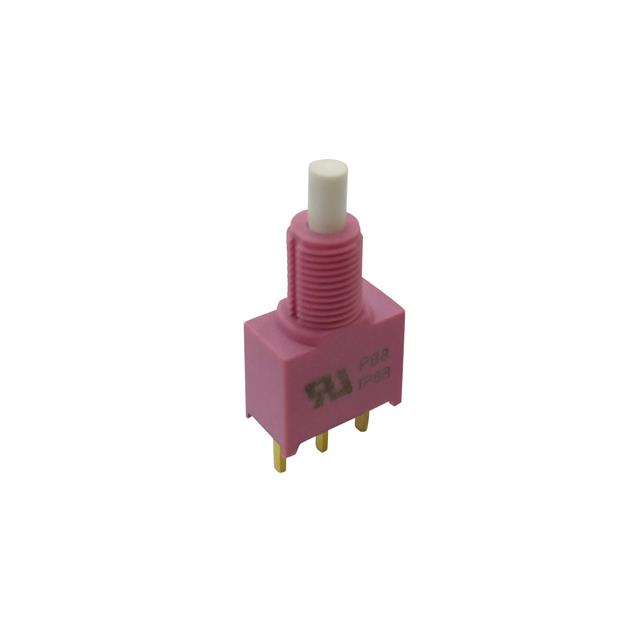

 Adam Tech | PC Pin | On-Mom | SPDT | Panel Mount Rear | 38 V | Standard | No Marking | 1 A | Plunger Round | 120 V | 85 °C | -30 ░C | IP68 - Dust Tight Waterproof | |||

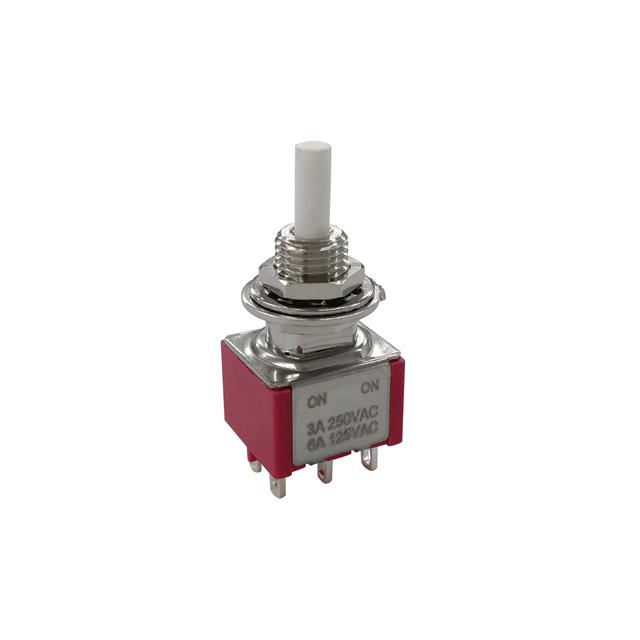

 Adam Tech | Solder Lug | On-On | DPDT | Panel Mount Rear | 28 V | Standard | No Marking | 6 A | Plunger Round | 125 V | 85 °C | -30 ░C |
