DG307 Series

Catalog

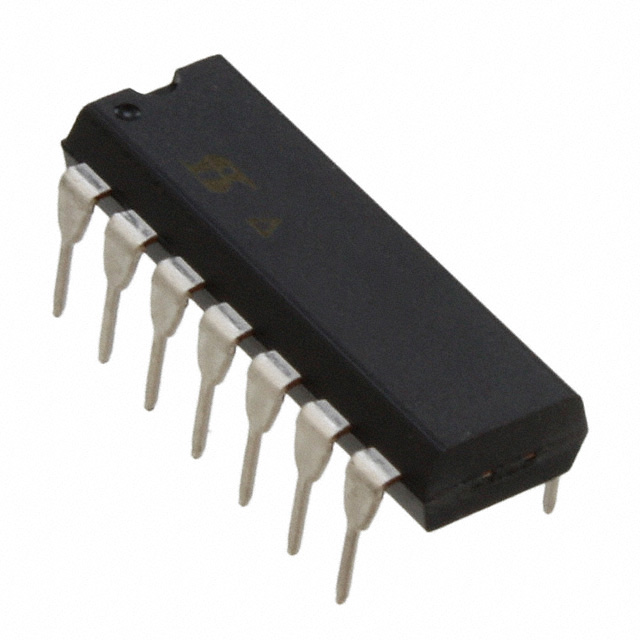

IC SWITCH SPDT X 2 50OHM 14DIP

Part	Charge Injection	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Crosstalk	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	On-State Resistance (Max) [Max]	Switch Circuit	Number of Circuits	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Mounting Type
Vishay General Semiconductor - Diodes Division DG307BDJ	30 pC	85 °C	-40 °C	14-DIP	7.62 mm	0.3 "	-74 dB	15 V	-15 V	14 pF	14 pF	50 Ohm	SPDT	2	110 ns	70 ns	5 nA	2:1	Through Hole
Vishay General Semiconductor - Diodes Division DG307BDJ-E3	30 pC	85 °C	-40 °C	14-DIP	7.62 mm	0.3 "	-74 dB	15 V	-15 V	14 pF	14 pF	50 Ohm	SPDT	2	110 ns	70 ns	5 nA	2:1	Through Hole
