TPS7A96 Series

2-A, ultra-low noise ultra-high PSRR RF voltage regulator

Catalog

2-A, ultra-low noise ultra-high PSRR RF voltage regulator

Part	Output Configuration	Voltage Dropout (Max) [Max]	Number of Regulators	Protection Features	Output Type	Current - Output	Current - Quiescent (Iq)	Control Features	Current - Supply (Max) [Max]	Supplier Device Package	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR [Max]	PSRR [Min]	Operating Temperature [Min]	Operating Temperature [Max]

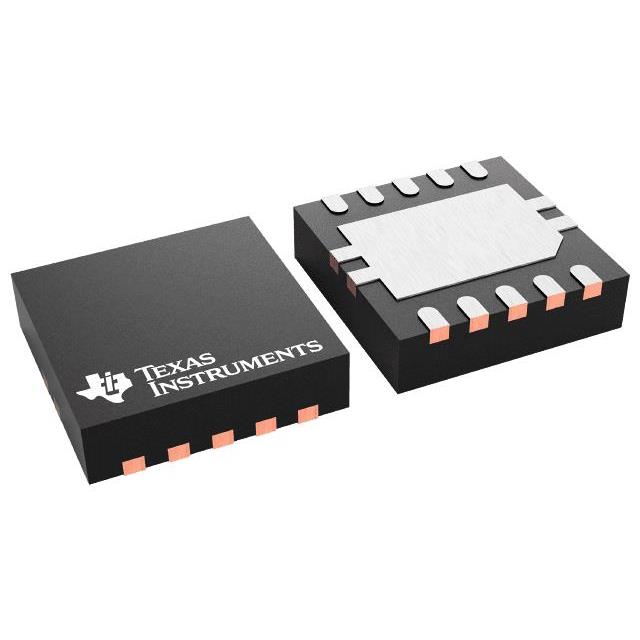

Texas Instruments TPS7A9601DSCR	Positive	0.215 V	1	Over Current Over Temperature	Adjustable	2 A	22 mA	Current Limit Power Good Soft Start	59 mA	10-WSON (3x3)	10-WFDFN Exposed Pad	5.7 V	Surface Mount	5.5 V	0 V	102 dB	50 dB	-40 °C	125 ¯C

Catalog

2-A, ultra-low noise ultra-high PSRR RF voltage regulator

Key Features

• Ultra-low output noise:0.5 µV RMS (typ, 10 Hz to 100 kHz)High power-supply ripple rejection (PSRR):94 dB at 100Hz104 dB at 1 kHz76 dB at 10 kHz58 dB at 100 kHz48 dB at 1 MHzAccuracy over line, load, and temperature: 1%Low dropout: 160 mV at 2 AWide input voltage range: 1.9 V to 5.7 VWide output voltage range: 0.4 V to 5.5 VParallelable for lower noise and higher currentFast transient responsePrecision enable and UVLOProgrammable current limitProgrammable PG thresholdAdjustable start-up inrush controlOpen-drain, power-good (PG) outputPackage: 3.00-mm × 3.00-mm, 10-pin WSON:JEDEC R θJA: 46.1°C/WEVM R θJA: 25.6°C/WUltra-low output noise:0.5 µV RMS (typ, 10 Hz to 100 kHz)High power-supply ripple rejection (PSRR):94 dB at 100Hz104 dB at 1 kHz76 dB at 10 kHz58 dB at 100 kHz48 dB at 1 MHzAccuracy over line, load, and temperature: 1%Low dropout: 160 mV at 2 AWide input voltage range: 1.9 V to 5.7 VWide output voltage range: 0.4 V to 5.5 VParallelable for lower noise and higher currentFast transient responsePrecision enable and UVLOProgrammable current limitProgrammable PG thresholdAdjustable start-up inrush controlOpen-drain, power-good (PG) outputPackage: 3.00-mm × 3.00-mm, 10-pin WSON:JEDEC R θJA: 46.1°C/WEVM R θJA: 25.6°C/W

Description

The TPS7A96 is an ultra-low noise (0.5 µV RMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 200 mV of dropout. The low dropout, in conjunction with a wide bandwidth error amplifier, allows for very high PSRR (104 dB at 1 kHz and 48 dB at 1 MHz) under low operating headroom (500 mV) and high output current (1.75 A). The device output is adjustable from 0.4 V to 5.5 V with an external resistor. With the wide input voltage range, the device supports operation as low as 1.9 V and up to 5.7 V. The device includes a programmable current limit, programmable PG threshold, and precision enable, allowing better control in the application. With the high-accuracy reference and wide-bandwidth topology, the device can be easily paralleled to achieve lower noise and higher current. With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce inrush current, the device is designed for powering sensitive analog low-voltage devices. The TPS7A96 is an ultra-low noise (0.5 µV RMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 200 mV of dropout. The low dropout, in conjunction with a wide bandwidth error amplifier, allows for very high PSRR (104 dB at 1 kHz and 48 dB at 1 MHz) under low operating headroom (500 mV) and high output current (1.75 A). The device output is adjustable from 0.4 V to 5.5 V with an external resistor. With the wide input voltage range, the device supports operation as low as 1.9 V and up to 5.7 V. The device includes a programmable current limit, programmable PG threshold, and precision enable, allowing better control in the application. With the high-accuracy reference and wide-bandwidth topology, the device can be easily paralleled to achieve lower noise and higher current. With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce inrush current, the device is designed for powering sensitive analog low-voltage devices.
