CJSUD6 Series

Catalog

MODULAR CONNECTORS / ETHERNET CONNECTORS MINI-COM CAT 6A UP/DOWN JACK MODULE, SHI

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Orientation [custom]	Number of Rows	Connector Type	Number of Positions/Contacts	Shielding	Number of Ports	Termination	Contact Finish	LED Color	Tab Direction	Ratings	Contact Material
Panduit Corp CJSUD6X88TGGRY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze

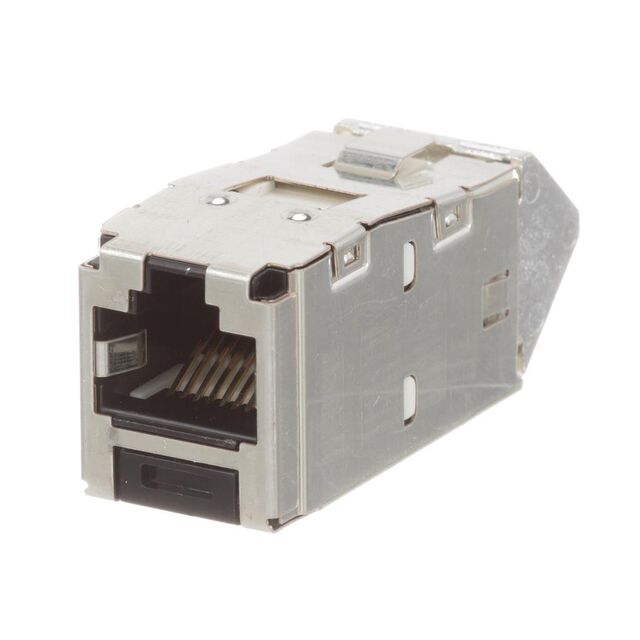

Panduit Corp CJSUD6X88TGY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze

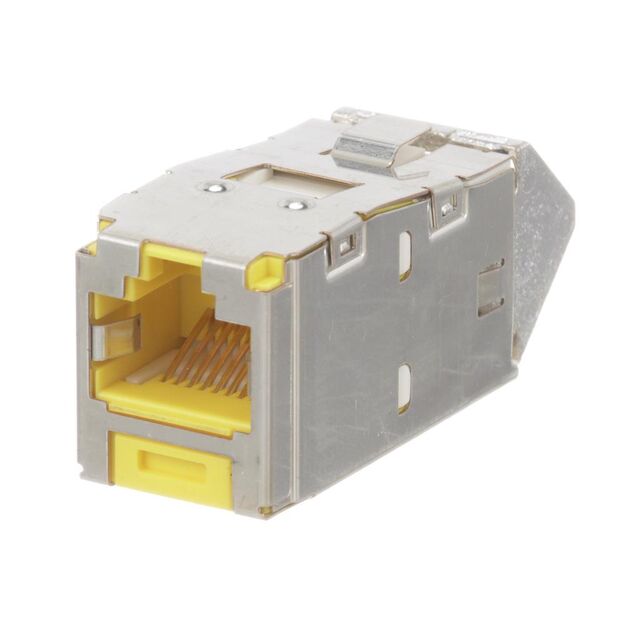

Panduit Corp CJSUD6X88TGYLY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze

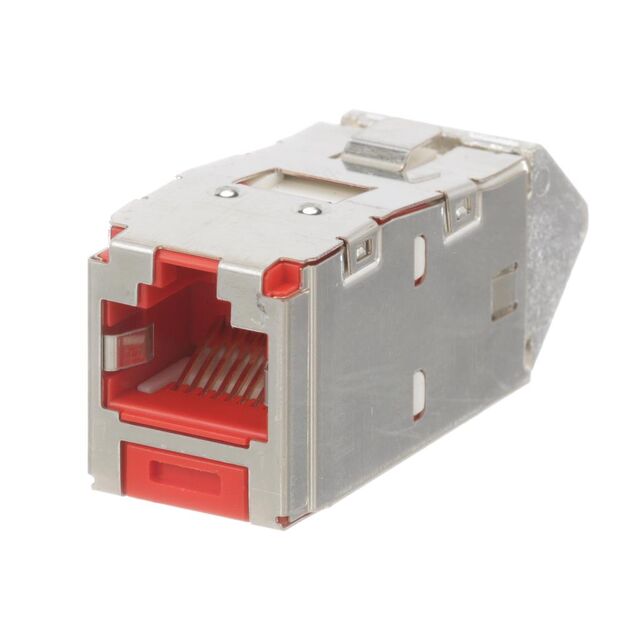

Panduit Corp CJSUD6X88TGRDY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze

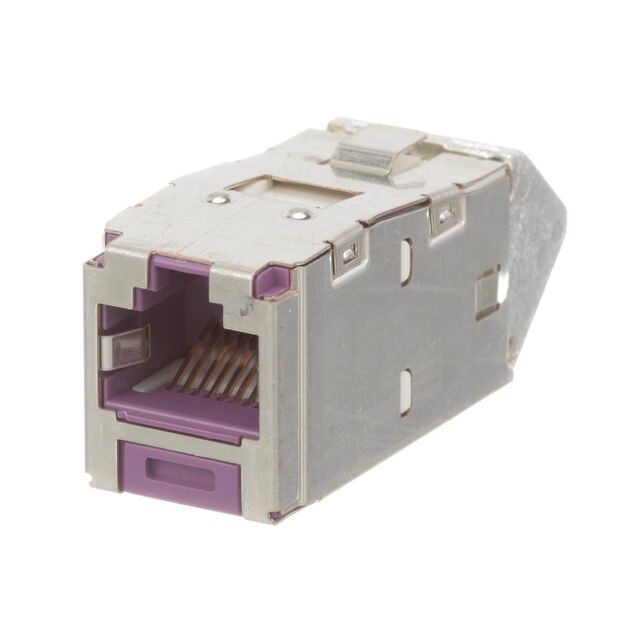

Panduit Corp CJSUD6X88TGVLY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze
Panduit Corp CJSUD6X88TGBUY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze

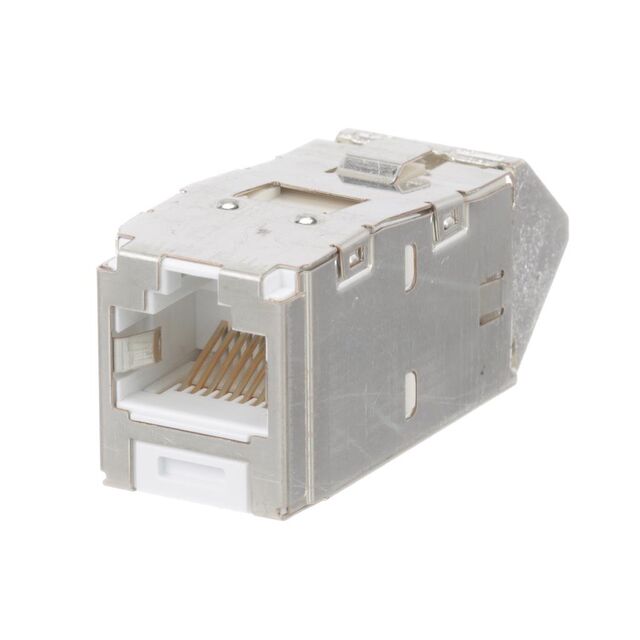

Panduit Corp CJSUD6X88TGWHY	Polycarbonate (PC)	50 µin	1.27 µm	65 °C	-10 °C	Panel Mount	45 °	1	Jack	8p8c (RJ45 Ethernet)	Shielded	1	IDC	Gold	Does Not Contain LED	Down	Cat6a	Phosphor Bronze
