SL-PGR2 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

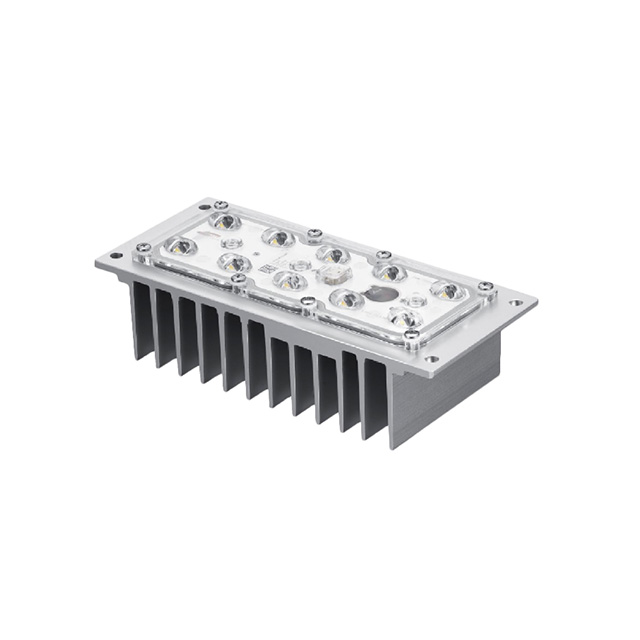

LED MOD T-TYPE GEN2 RECT 5000K

Part	Color	Features	CCT (K)	Lens Type	CRI (Color Rendering Index)	Current - Max [Max]	Lumens/Watt @ Current - Test	Configuration	Luminous Flux @ Current/Temperature	Type	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Height [z]
Samsung Semiconductor, Inc. SL-PGR2W52MBGL	Cool White	IP66	5000 K	Flat	75	1 A	126 lm/W	Rectangle	2650 lm	LED Module
Samsung Semiconductor, Inc. SL-PGR2W53MBWW	Cool White	IP66	5000 K	Flat	75	1 A	135 lm/W	Rectangle	2800 lm	LED Module	58 °C	150 mm	65 mm	30 V	43.2 mm
Samsung Semiconductor, Inc. SL-PGR2W53LBWW	Cool White	IP66	5000 K	Flat	75	1 A	135 lm/W	Rectangle	2800 lm	LED Module	58 °C	150 mm	65 mm	30 V	43.4 mm
Samsung Semiconductor, Inc. SL-PGR2W57MBGL	Cool White		5000 K	Domed	75	1 A	119 lm/W	Rectangle	2500 lm	LED Module	58 °C	126.4 mm	50 mm	30 V	1.2 mm
Samsung Semiconductor, Inc. SL-PGR2W57SBGL	Cool White		5000 K	Domed	76	1 A	119 lm/W	Rectangle	2300 lm	LED Module	58 °C	150 mm	65 mm	30 V	43.2 mm
Samsung Semiconductor, Inc. SL-PGR2T47M3WW	Cool White		5000 K		75	1 A	110 lm/W	Rectangle	2300 lm	LED Module	65 °C	150 mm	65 mm	30 V
Samsung Semiconductor, Inc. SL-PGR2T57MBWW	Cool White		5000 K		75	1 A	114 lm/W	Rectangle	2400 lm	LED Module	65 °C	125.2 mm	50 mm	30 V
Samsung Semiconductor, Inc. SL-PGR2W57MBWW	Cool White	IP66	5000 K	Flat	75	1 A	135 lm/W	Rectangle	2800 lm	LED Module	58 °C	150 mm	65 mm	30 V	43.7 mm
Samsung Semiconductor, Inc. SL-PGR2E25S3WW	Cool White		5000 K		70	1 A	90 lm/W	Rectangle	1900 lm	LED Module	65 °C	125 mm	50 mm	30 V	41.6 mm
Samsung Semiconductor, Inc. SL-PGR2W51SBGL	Cool White		5000 K	Domed	76	1 A	119 lm/W	Rectangle	2300 lm	LED Module	58 °C	150 mm	65 mm	30 V	43.4 mm
