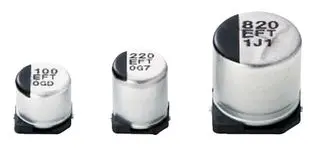

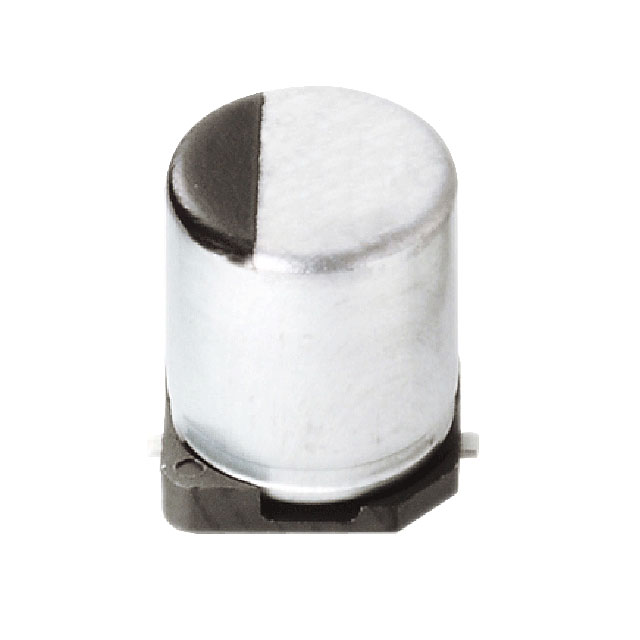

EEE-TC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP ALUM 330UF 20% 10V SMD

Part	Ripple Current @ Low Frequency	Polarization	Package / Case	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Voltage - Rated	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Applications	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales EEE-TC1A331UP	266.5 mA	Polar	Radial Can - SMD	3000 Hrs	0.315 "	8 mm	125 °C	-40 °C	410 mA	10 V	330 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	200 mOhm
Panasonic Industrial Automation Sales EEE-TC1A221P	266.5 mA	Polar	Radial Can - SMD	3000 Hrs	0.315 "	8 mm	125 °C	-40 °C	410 mA	10 V	220 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	200 mOhm
Panasonic Industrial Automation Sales EEE-TC1C221P	266.5 mA	Polar	Radial Can - SMD	3000 Hrs	0.315 "	8 mm	125 °C	-40 °C	410 mA	16 V	220 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	200 mOhm
Panasonic Industrial Automation Sales EEE-TC1A331V		Polar	Radial Can - SMD	3000 Hrs	0.394 in	10 mm	125 °C	-40 °C	750 mA	10 V	330 µF	Surface Mount	0.425 in	10.8 mm	AEC-Q200	Automotive High Temperature Reflow	0.406 in	10.3 mm	0.406 "	10.3 mm	20 %	150 mOhm
Panasonic Industrial Automation Sales EEE-TC1C101XP		Polar	Radial Can - SMD	2000 Hrs	0.248 in	6.3 mm	125 °C	-40 °C	300 mA	16 V	100 µF	Surface Mount			AEC-Q200	Automotive High Temperature Reflow	0.26 in	6.6 mm	0.26 in	6.6 mm	20 %	450 mOhm	8 mm	0.315 in
Panasonic Industrial Automation Sales EEE-TC1A681UP		Polar	Radial Can - SMD	3000 Hrs	0.394 in	10 mm	125 °C	-40 °C	750 mA	10 V	680 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.406 in	10.3 mm	0.406 "	10.3 mm	20 %	150 mOhm
Panasonic Industrial Automation Sales EEE-TC1C331P		Polar	Radial Can - SMD	3000 Hrs	0.394 in	10 mm	125 °C	-40 °C	750 mA	16 V	330 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.406 in	10.3 mm	0.406 "	10.3 mm	20 %	150 mOhm
Panasonic Industrial Automation Sales EEE-TC1C471P		Polar	Radial Can - SMD	3000 Hrs	0.394 in	10 mm	125 °C	-40 °C	750 mA	16 V	470 µF	Surface Mount	0.413 in	10.5 mm	AEC-Q200	Automotive High Temperature Reflow	0.406 in	10.3 mm	0.406 "	10.3 mm	20 %	150 mOhm
Panasonic Industrial Automation Sales EEE-TC1A471V		Polar	Radial Can - SMD	3000 Hrs	0.394 in	10 mm	125 °C	-40 °C	750 mA	10 V	470 µF	Surface Mount	0.425 in	10.8 mm	AEC-Q200	Automotive High Temperature Reflow	0.406 in	10.3 mm	0.406 "	10.3 mm	20 %	150 mOhm
Panasonic Industrial Automation Sales EEE-TC1A561UV	266.5 mA	Polar	Radial Can - SMD	3000 Hrs	0.315 "	8 mm	125 °C	-40 °C	410 mA	10 V	560 µF	Surface Mount	0.425 in	10.8 mm	AEC-Q200	Automotive High Temperature Reflow	0.327 "	8.3 mm	0.327 in	8.3 mm	20 %	200 mOhm
