TPS56121 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5-V TO 14-V, 15-A SYNCHRONOUS SWIFT™ BUCK CONVERTER
| Part | Voltage - Input (Max) [Max] | Voltage - Output (Max) [Max] | Output Configuration | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Supplier Device Package | Function | Output Type | Topology | Voltage - Output (Min/Fixed) | Voltage - Input (Min) [Min] | Synchronous Rectifier | Frequency - Switching | Number of Outputs | Current - Output | Utilized IC / Part | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose | Board Type | Supplied Contents | Regulator Topology | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 14 V | 13.02 V | Positive | 22-PowerLFDFN | -40 °C | 125 ¯C | Surface Mount | 22-LSON-CLIP (6x5) | Step-Down | Adjustable | Buck | 0.6 V | 4.5 V | 300 kHz 500 kHz 950 kHz | 1 | 15 A | |||||||||||

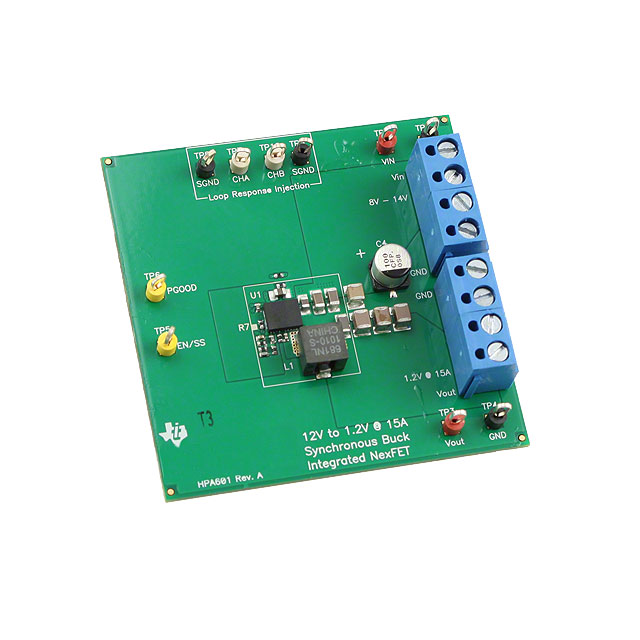

 Texas Instruments | 500 kHz | 15 A | TPS56121 | Non-Isolated | 1 | 1 V | DC/DC Step Down | Fully Populated | Board(s) | Buck | 14 V | 8 V | |||||||||||||||
Texas Instruments | 14 V | 13.02 V | Positive | 22-PowerLFDFN | -40 °C | 125 ¯C | Surface Mount | 22-LSON-CLIP (6x5) | Step-Down | Adjustable | Buck | 0.6 V | 4.5 V | 300 kHz 500 kHz 950 kHz | 1 | 15 A |
