RER125 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

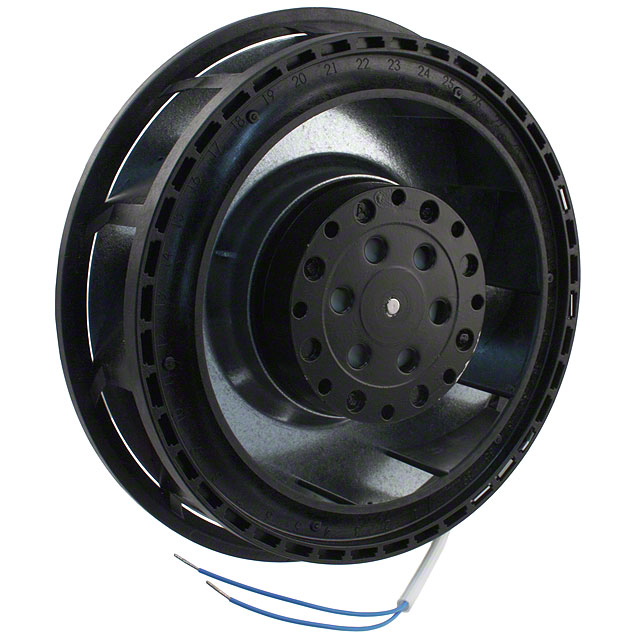

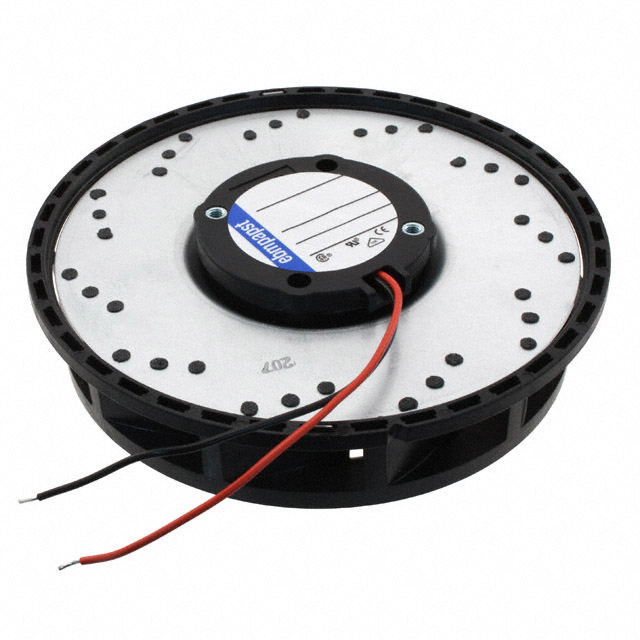

FAN IMP MTRZD 138X40MM 115VAC
| Part | Lifetime @ Temp. | Material - Blade | Air Flow | Air Flow | Power (Watts) | Fan Type | Weight | Weight | Width [x] | Bearing Type | Termination | RPM | Noise | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Size / Dimension [diameter] | Voltage Range [Min] | Voltage Range [Max] | Weight [custom] | Weight [custom] | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 40000 Hrs | Fiberglass Reinforced Plastic | 1.9 m³/min | 67.7 CFM | 18 W | Motorized Impellers | 499 g | 1.1 lbs | 40 mm | Ball | 2 Wire Leads | 2850 RPM | 65 dB | CE CSA UL VDE | 70 °C | -30 ░C | -30 °C | 70 °C | 115 VAC | 138 mm | |||||
ebm-papst Inc. | 37500 Hrs | Fiberglass Reinforced Plastic | 1.71 m³/min | 61.2 CFM | 19 W | Motorized Impellers | 499 g | 1.1 lbs | 40 mm | Ball | 2 Wire Leads | 2600 RPM | 65 dB | CE CSA UL VDE | -30 ░C | 60 °C | 230 VAC | 138 mm | |||||||
 ebm-papst Inc. | 62500 Hrs | Fiberglass Reinforced Plastic | 1.81 mł/min | 64.7 CFM | 4.5 W | Motorized Impellers | Ball | 2 Wire Leads | 2650 RPM | 47 dB | -30 ░C | 75 ░C | 12 VDC | 138 mm | 7 V | 15 V | 319.78 g | 0.705 lb | 35 mm |
