29070 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE 4PDT 6A 24V
| Part | Coil Resistance | Coil Voltage | Features | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Relay Type | Mounting Type | Contact Rating (Current) | Termination Style | Approval Agency | Switching Voltage | Contact Form | Coil Current | Release Time | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

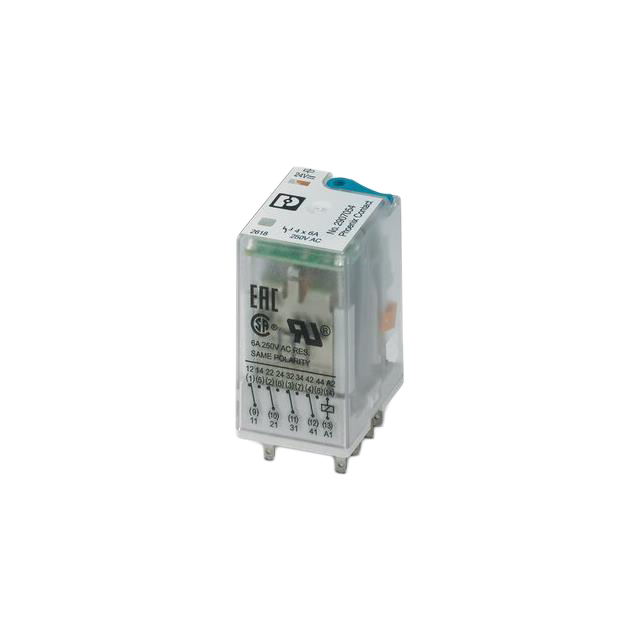

 Phoenix Contact | 630 Ohms | 24 VDC | Mechanical Indicator Test Button | Non Latching | 70 °C | -40 C | Silver Nickel (AgNi) | General Purpose | Socketable | 6 A | Plug In | cULus EAC UL VDE | 250 VAC 250 VDC | 4PDT (4 Form C) | 38 mA | 3 ms | 13 ms |

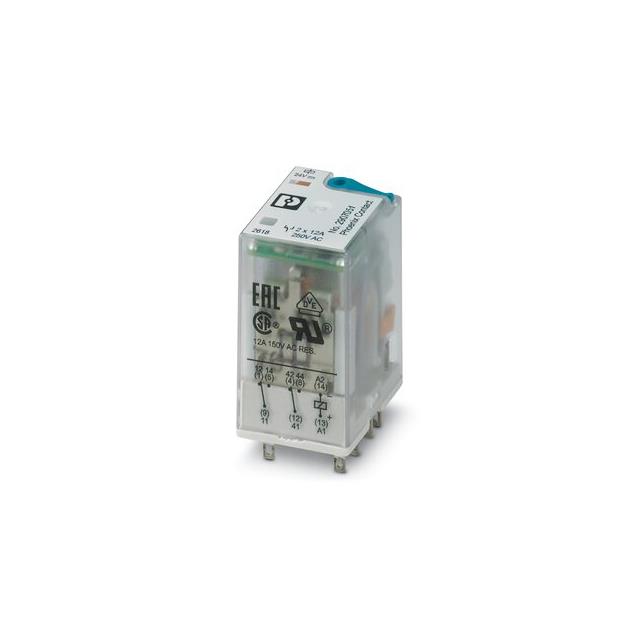

 Phoenix Contact | 630 Ohms | 24 VDC | Mechanical Indicator Test Button | Non Latching | 70 °C | -40 C | Silver Nickel (AgNi) | General Purpose | Socketable | 12 A | Plug In | cULus EAC UL VDE | 250 VAC 250 VDC | DPDT (2 Form C) | 38 mA | 3 ms | 13 ms |
