2823145 Series

Catalog

BOARD CONNECTOR, 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Connector Type	Contact Shape	Voltage Rating	Fastening Type	Contact Material	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Insulation Height	Insulation Height	Contact Type	Number of Positions Loaded	Number of Positions	Contact Finish - Mating	Shrouding	Features	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows

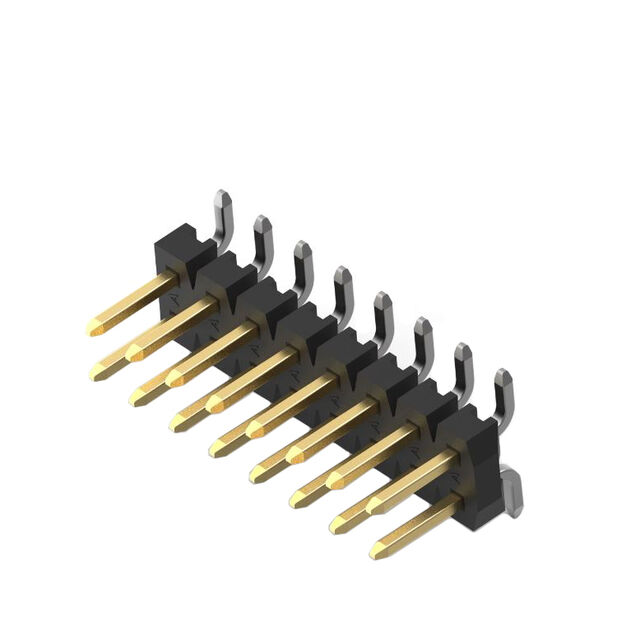

TE Connectivity Raychem Cable Protection 2-2823145-0	0.3 µm	12 µin	0.079 in	2 mm	2 A	Breakaway Header	Square	125 VAC	Push-Pull	Phosphor Bronze	Surface Mount	4 mm	0.157 in	Solder	1.5 mm	0.059 "	Male Pin	All	20	Gold	Unshrouded	Pick and Place	UL94 V-0	Tin	30 Áin	0.76 Ám	Thermoplastic	125 °C	-40 °C	Black	0.079 in	2 mm	2
