CPH5518 Series

Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat) Complementary Dual CPH5

Catalog

Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat) Complementary Dual CPH5

Part	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Min]	Package / Case	Transistor Type	Power - Max [Max]	Supplier Device Package	Mounting Type

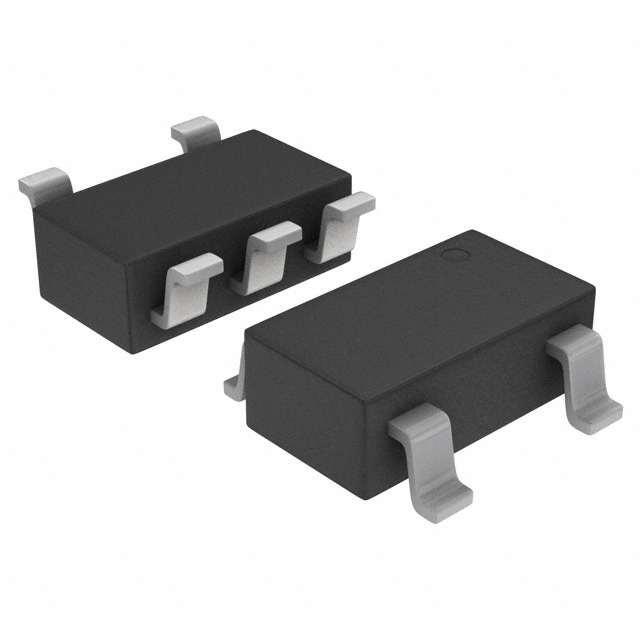

ON Semiconductor CPH5518-TL-E	190 mV	100 nA	1 A	150 °C	420 MHz	200	80 V	50 V	SOT-23-5 Thin TSOT-23-5	1 NPN 1 PNP	1.2 W	5-CPH	Surface Mount
ON Semiconductor CPH5518-TL-H	190 mV	100 nA	1 A	150 °C	420 MHz	200	80 V	50 V	SOT-23-5 Thin TSOT-23-5	1 NPN 1 PNP	1.2 W	5-CPH	Surface Mount

Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat) Complementary Dual CPH5

• Composite type with a PNP transistor and an NPN transistor contained in one package, facilitating high-density mounting

• The CPH5518 consists of two chips encapsulated in a package which are equivalent to the CPH3116 andthe CPH3216, respectively

• Ultrasmall package facilitate miniaturization in end products (0.9mm mounting height)

CPH5518 is Bipolar Transistor, (-)50V, (-)3A, Low VCE(sat) Complementary Dual CPH5 for Various Driver and High Current Switching Application.
