CR-2354 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

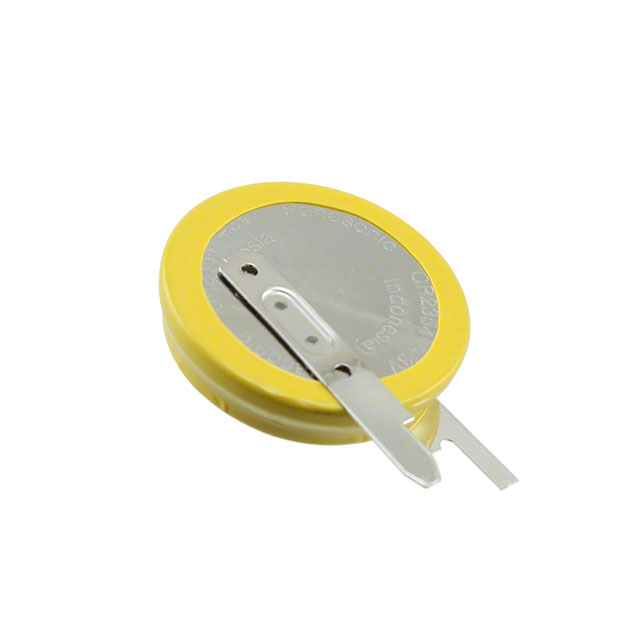

BATTERY LITHIUM 3V COIN 23MM
| Part | Capacity | Weight | Battery Chemistry | Battery Cell Size [diameter] | Battery Cell Size | Shipping Info | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Voltage - Rated | Size / Dimension [z] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 560 mAh | 5.8 g | Lithium Manganese Dioxide | 23 mm | Coin | Due to restrictions only ground shipment is allowed. | 0.21 in | 22.9 mm | 5.3 mm | 0.9 in | 3 VDC | ||
 Panasonic Industrial Automation Sales | 560 mAh | 5.8 g | Lithium Manganese Dioxide | 23 mm | Coin | Due to restrictions only ground shipment is allowed. | 0.91 in 23 mm | 3 VDC | 0.21 in 5.4 mm | PC Pin (Vertical Mount) | |||
Panasonic Industrial Automation Sales | 560 mAh | 5.8 g | Lithium Manganese Dioxide | 23 mm | Coin | Due to restrictions only ground shipment is allowed. | 0.21 in | 22.9 mm | 5.3 mm | 0.9 in | 3 VDC |
