213353 Series

LTE/GPS Combo Flexible Antenna, 200.00mm Cable Length, Compatible with U.FL/I-PEX MHF Connectors

Manufacturer: Molex

Catalog

LTE/GPS Combo Flexible Antenna, 200.00mm Cable Length, Compatible with U.FL/I-PEX MHF Connectors

Part	Height (Max)	Height (Max) [Max]	Termination	Number of Bands	Gain	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Antenna Type	Features	Features	Frequency Group	Mounting Type	Applications	RF Family/Standard

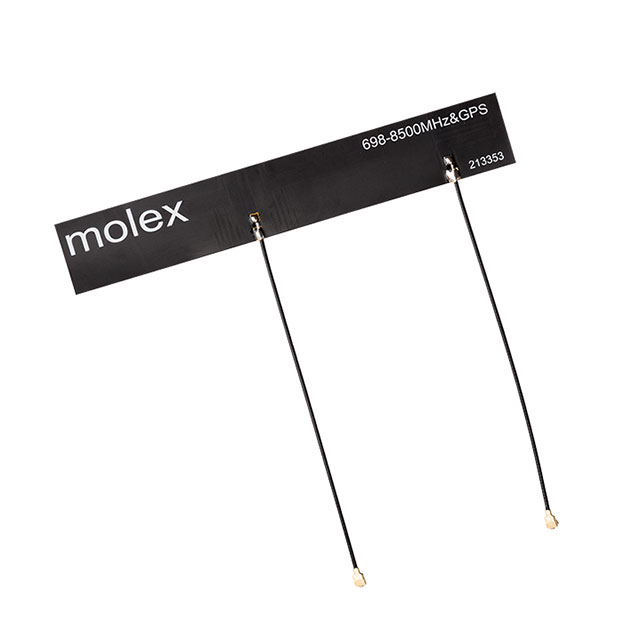

Molex 2133530100	0.1 mm	0.004 in	I-PEX MHF1 U.FL (UMCC)	10	2.3 dBi 2.5 dBi 4.5 dBi 5.4 dBi 7 dBi	1.45 GHz 1.561 GHz 1.575 GHz 1.6 GHz 1.602 GHz 2.2 GHz 3.75 GHz 4.7 GHz 7.2 GHz 829 MHz	1.4 GHz 1.5 GHz 1.558 GHz 1.573 GHz 1.598 GHz 1.7 GHz 3.3 GHz 4.4 GHz 5.9 GHz 698 MHz	1.5 GHz 1.563 GHz 1.576 GHz 1.606 GHz 1.7 GHz 2.7 GHz 4.2 GHz 5 GHz 8.5 GHz 960 MHz	Flat Patch	Cable	100 mm	Wide Band	Adhesive	Beidou GLONASS GPS LTE UWB	Cellular Navigation

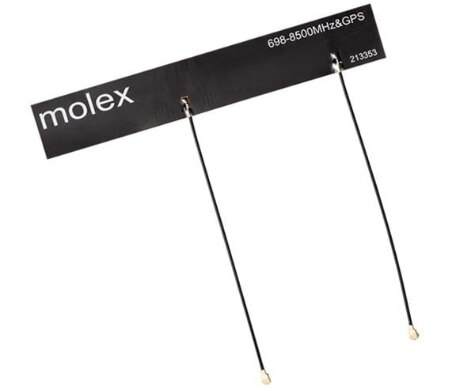

Molex 2133530150				10	2.3 dBi 2.5 dBi 4.5 dBi 5.4 dBi 7 dBi	1.45 GHz 1.5605 GHz 1.5745 GHz 1.6 GHz 1.602 GHz 2.2 GHz 3.75 GHz 4.7 GHz 7.2 GHz 829 MHz	1.4 GHz 1.5 GHz 1.558 GHz 1.573 GHz 1.598 GHz 1.7 GHz 3.3 GHz 4.4 GHz 5.9 GHz 698 MHz	1.5 GHz 1.563 GHz 1.576 GHz 1.606 GHz 1.7 GHz 2.7 GHz 4.2 GHz 5 GHz 8.5 GHz 960 MHz		Cable - 150mm		Wide Band		Beidou GLONASS GPS LTE UWB	Cellular Navigation

LTE/GPS Combo Flexible Antenna, 200.00mm Cable Length, Compatible with U.FL/I-PEX MHF Connectors
