PTH05060W Series

10 A 5-V Input Bus Termination Power Module for DDR/QDR Memory

Catalog

10 A 5-V Input Bus Termination Power Module for DDR/QDR Memory

Part	Mounting Type	Applications	Type	Current - Output (Max) [Max]	Package / Case	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency

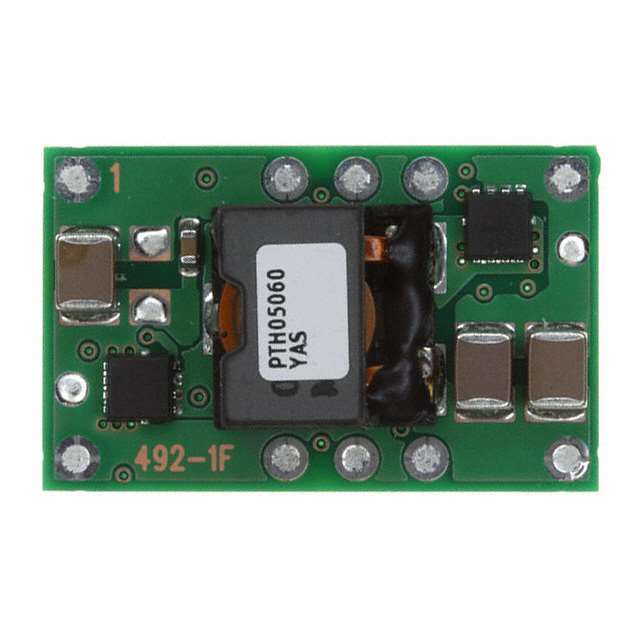

Texas Instruments PTH05060YAS	Surface Mount	ITE (Commercial)	Non-Isolated PoL Module	10 A	10-SMD Module	OCP Remote On/Off UVLO	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	1	5.5 V	9.6 mm	0.99 in	0.62 "	15.8 mm	25.3 mm	0.38 in	86 %
Texas Instruments PTH05060WAST	Surface Mount	ITE (Commercial)	Non-Isolated PoL Module	10 A	10-SMD Module	OCP Remote On/Off UVLO	3.6 V	0.8 V	4.5 V	85 °C	-40 °C	1	5.5 V	9.6 mm	0.99 in	0.62 "	15.8 mm	25.3 mm	0.38 in	94 %

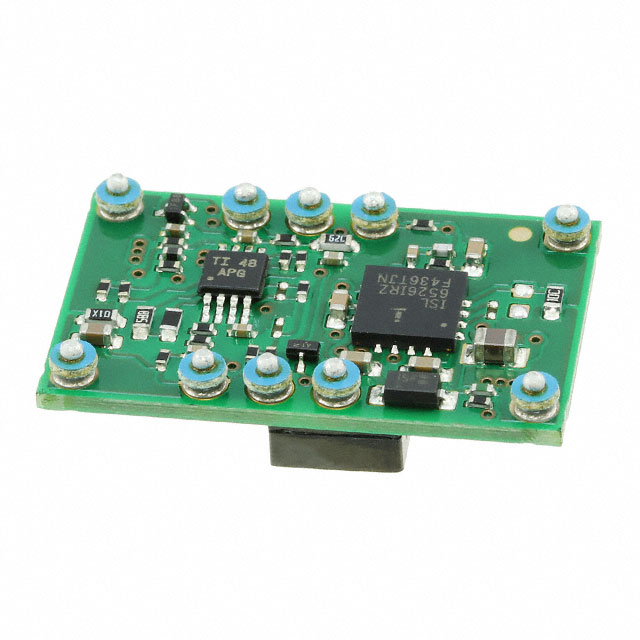

Texas Instruments PTH05060WAZT	Surface Mount	ITE (Commercial)	Non-Isolated PoL Module	10 A	10-SMD Module	OCP Remote On/Off UVLO	3.6 V	0.8 V	4.5 V	85 °C	-40 °C	1	5.5 V	9.6 mm	0.99 in	0.62 "	15.8 mm	25.3 mm	0.38 in	94 %

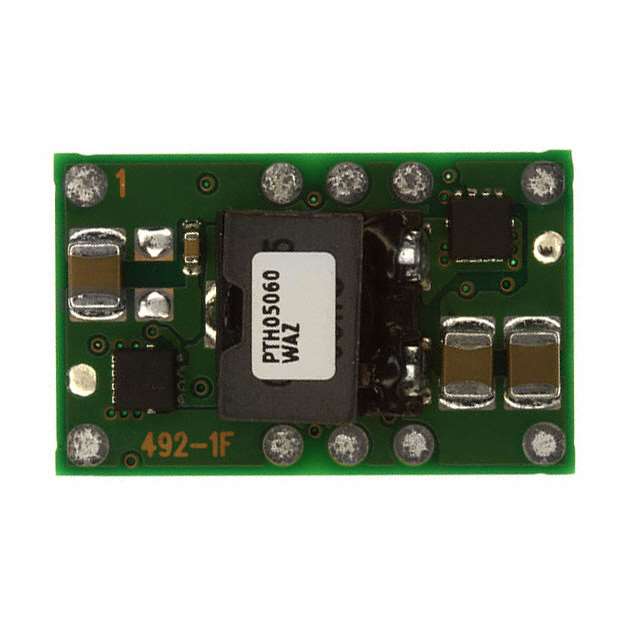

Texas Instruments PTH05060WAZ	Surface Mount	ITE (Commercial)	Non-Isolated PoL Module	10 A	10-SMD Module	OCP OTP Remote On/Off UVLO	3.6 V	0.8 V	4.5 V	85 °C	-40 °C	1	5.5 V	9.6 mm	0.99 in	0.62 "	15.8 mm	25.3 mm	0.38 in	94 %

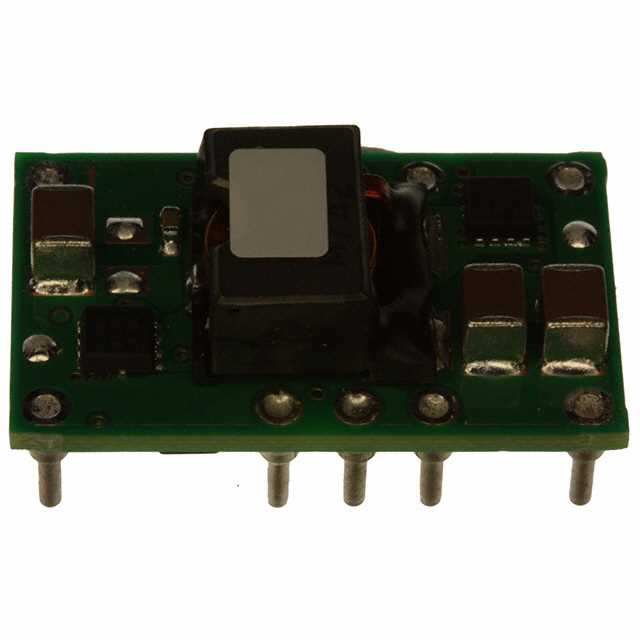

Texas Instruments PTH05060YAH	Through Hole	ITE (Commercial)	Non-Isolated PoL Module	10 A	10-DIP Module	UVLO	1.8 V	0.55 V	4.5 V	85 °C	-40 °C	1	5.5 V	8.9 mm	1 in	0.62 "	15.7 mm	25.4 mm	0.35 "	86 %

Catalog

10 A 5-V Input Bus Termination Power Module for DDR/QDR Memory

Key Features

• Up to 10-A Output Current5 V, Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)Efficiencies up to 96%150 W/in³ Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupMargin Up/Down ControlsUnder-Voltage LookoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Operating Temp: –40 to +85°CDSP Compatible Output VoltagesSafety Agency ApprovalsUL1950, CSA 22.2 950, & EN60950 VDE (Pending)Point-of-Load Alliance (POLA) CompatibleUp to 10-A Output Current5 V, Input VoltageWide-Output Voltage Adjust (0.8 V to 3.6 V)Efficiencies up to 96%150 W/in³ Power DensityOn/Off InhibitOutput Voltage SensePre-Bias StartupMargin Up/Down ControlsUnder-Voltage LookoutAuto-Track™ SequencingOutput Over-Current Protection (Non-Latching, Auto-Reset)Operating Temp: –40 to +85°CDSP Compatible Output VoltagesSafety Agency ApprovalsUL1950, CSA 22.2 950, & EN60950 VDE (Pending)Point-of-Load Alliance (POLA) Compatible

Description

The PTH05060 series of non-isolated power modules are small in size but big on performance and flexibility. Their high output current, compact footprint, and industry-leading features offers system designers a versatile module for powering complex multi-processor digital systems. The series employs double-sided surface mount construction and provides high performance step-down power conversion for up to 10 A of output current from a 5-V input bus voltage. The output voltage of the PTH05060W can be set to any value over the range, 0.8 V to 3.6 V, using a single resistor. This series includes Auto-Track™ Sequencing. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, margin up/down controls, and the ability to start up into an existing output voltage or prebias. To ensure tight load regulation, an output voltage sense is also provided. A non-latching overcurrent trip serves as load fault protection. Target applications include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers. The PTH05060 series of non-isolated power modules are small in size but big on performance and flexibility. Their high output current, compact footprint, and industry-leading features offers system designers a versatile module for powering complex multi-processor digital systems. The series employs double-sided surface mount construction and provides high performance step-down power conversion for up to 10 A of output current from a 5-V input bus voltage. The output voltage of the PTH05060W can be set to any value over the range, 0.8 V to 3.6 V, using a single resistor. This series includes Auto-Track™ Sequencing. Auto-Track simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Other operating features include an on/off inhibit, margin up/down controls, and the ability to start up into an existing output voltage or prebias. To ensure tight load regulation, an output voltage sense is also provided. A non-latching overcurrent trip serves as load fault protection. Target applications include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers.
