25194 Series

Catalog

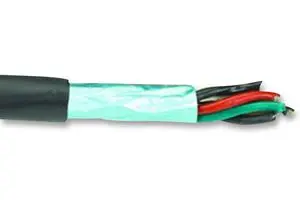

MULTICONDUCTOR CABLE, XTRA-GUARD® 2, SHIELDED, 4 CONDUCTOR, 22 AWG, 0.35 MM², 100 FT, 30.5 M

Part	Shield Coverage	Shield Material	Number of Conductors	Conductor Insulation	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Material	Features	Jacket (Insulation) Material	Ratings	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Length [x]	Length [x]	Length	Length
ALPHA WIRE 25194 BK005	100 %	Aluminum	4	Poly-Vinyl Chloride (PVC)	300 VDC	0.193 in	4.9 mm	0.813 mm	0.032 in	Foil	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	Black	22 AWG	30 AWG	7	-30 ░C	90 °C	Multi-Conductor	100 ft	30.5 m
ALPHA WIRE 25194 SL199	100 %	Aluminum	4	Poly-Vinyl Chloride (PVC)	300 VDC	0.193 in	4.9 mm	0.813 mm	0.032 in	Foil	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	Slate	22 AWG	30 AWG	7	-30 ░C	90 °C	Multi-Conductor			304.8 m	1000 ft
ALPHA WIRE 25194 YL199	100 %	Aluminum	4	Poly-Vinyl Chloride (PVC)	300 VDC	0.193 in	4.9 mm	0.813 mm	0.032 in	Foil	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	Yellow	22 AWG	30 AWG	7	-30 ░C	90 °C	Multi-Conductor
ALPHA WIRE 25194 BL199	100 %	Aluminum	4	Poly-Vinyl Chloride (PVC)	300 VDC	0.193 in	4.9 mm	0.813 mm	0.032 in	Foil	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	Blue	22 AWG	30 AWG	7	-30 ░C	90 °C	Multi-Conductor			304.8 m	1000 ft
ALPHA WIRE 25194 WH199	100 %	Aluminum	4	Poly-Vinyl Chloride (PVC)	300 VDC	0.193 in	4.9 mm	0.813 mm	0.032 in	Foil	Copper Tinned	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	ISO 10993 UL Style 20668	White	22 AWG	30 AWG	7	-30 ░C	90 °C	Multi-Conductor			304.8 m	1000 ft
