0934-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

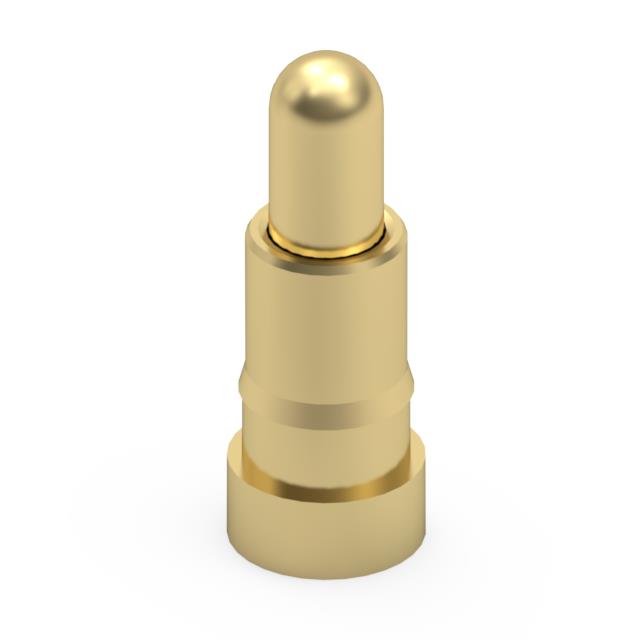

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pad Layout Dimension | Pad Layout Dimension | Current Rating (Amps) | Minimum Working Height [Min] | Minimum Working Height [Min] | Recommended Working Height | Recommended Working Height | Operating Force - Mid Compression | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Initial | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 5 mm | 0.197 in | 1000000 | Gold | 20 µin | 0.51 µm | Surface Mount | 0.072 in | 1.83 mm | 5.2 A | 0.142 in | 3.6 mm | 4.3 mm | 0.169 in | 40 gf | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | 7 gf | Brass Alloy |
