SFR18EZPJ000 Series

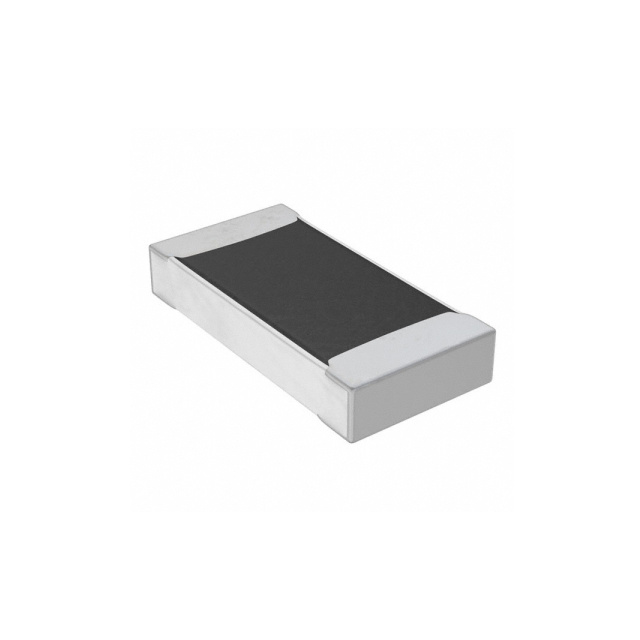

3216(1206)Size, Sulfur Tolerant Chip Jumper (AEC-Q200 Qualified)

Catalog

3216(1206)Size, Sulfur Tolerant Chip Jumper (AEC-Q200 Qualified)

Part	Ratings	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Composition	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Features	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Rohm Semiconductor SFR18EZPJ000	AEC-Q200	2	0.063 "	0.126 "	3.2 mm	1.6 mm	Thick Film	Jumper	0.026 in	0.65 mm	0 mOhms	Anti-Sulfur Automotive AEC-Q200	1206	1206 (3216 Metric)	155 C	-55 C

Catalog

3216(1206)Size, Sulfur Tolerant Chip Jumper (AEC-Q200 Qualified)

Description

ROHM's anti-sulfur chip resistors are featuring unique internal structure having high tolerance to sulfuric environments. This product is suitable for high-reliability sets and circuits.
