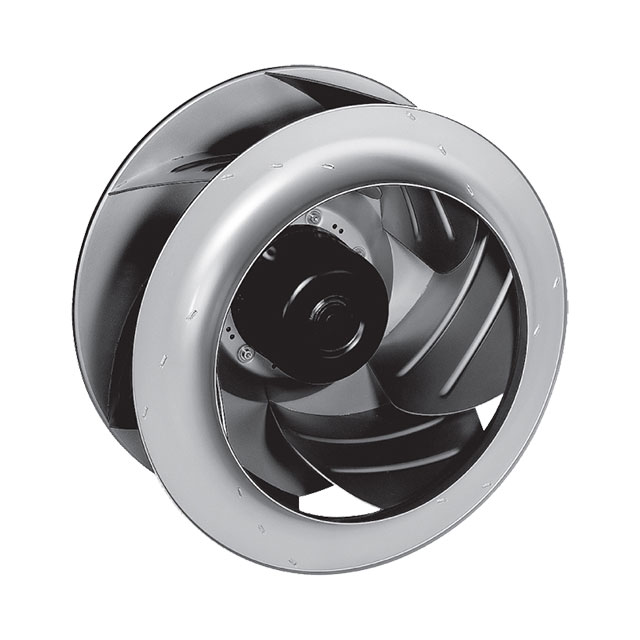

R3G630 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN BLOWER CENTRIFUGAL
| Part | Current Rating (Amps) | Material - Frame | Air Flow | Air Flow | Material - Blade [custom] | Fan Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | RPM | Weight | Weight | Size / Dimension [diameter] | Size / Dimension | Width [x] | Power (Watts) | Voltage - Rated | Features | Approval Agency | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 7.8 A | Aluminum | 282.8 mł/min | 10100 CFM | Aluminum | Motorized Impellers | 40 °C | -25 °C | -25 °C | 40 °C | IP54 - Dust Protected Water Resistant | 1230 RPM | 29.5 kg | 65 lbs | 635 mm | Round | 376 mm | 2850 W | 240 VAC | Electronic Commutation (EC) | UL | ||
 ebm-papst Inc. | 5.4 A | Aluminum | 312.2 m³/min | 11150 CFM | Aluminum | Motorized Impellers | 50 °C | -25 °C | -25 °C | 50 °C | IP54 - Dust Protected Water Resistant | 1370 RPM | 38.6 kg | 85 lbs | 635 mm | Round | 424 mm | 4000 W | 480 VAC | Electronic Commutation (EC) | UL | 380 VAC | 480 VAC |
