PE4557 Series
Manufacturer: Pasternack
Beta
⌘K

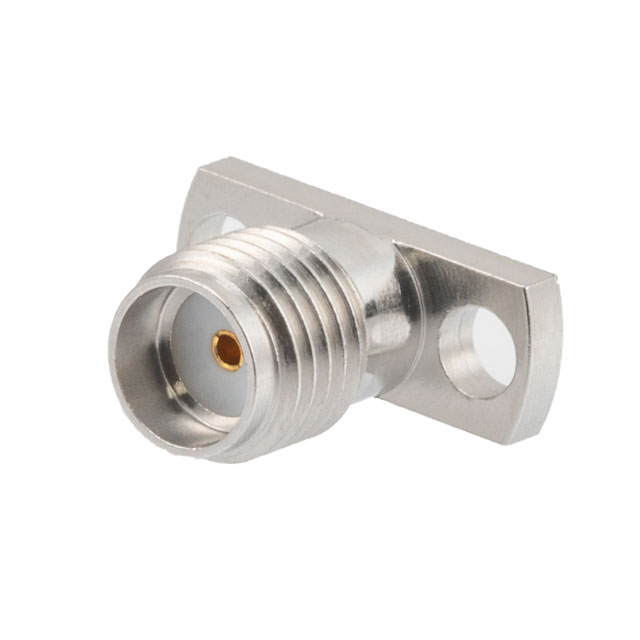

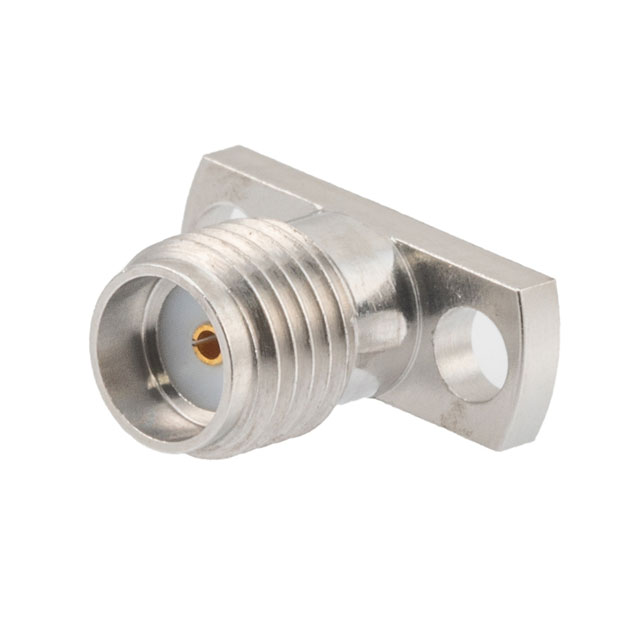

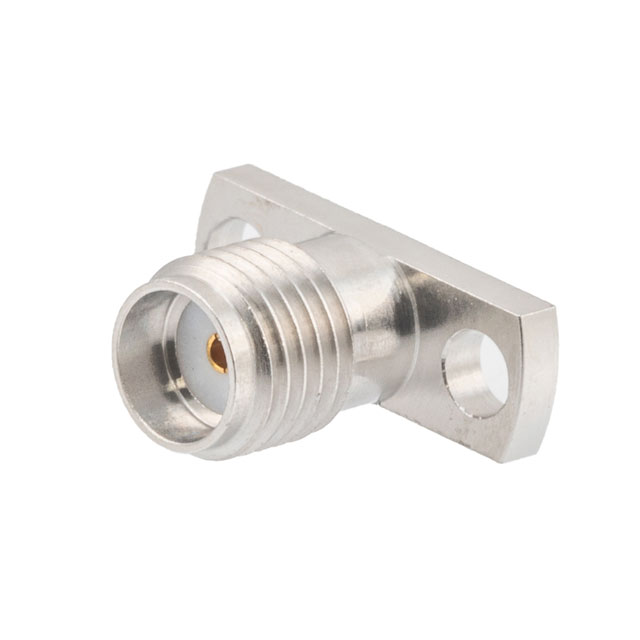

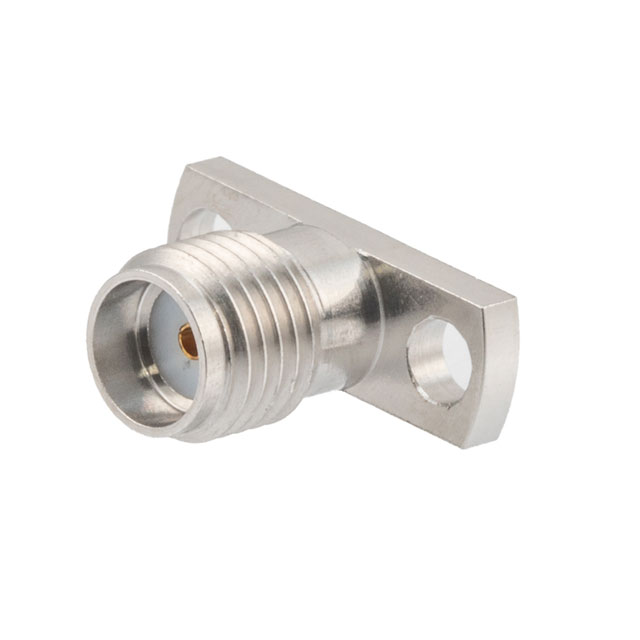

SMA(F) FLD RPL 2HOLE 0.018" PIN
| Part | Dielectric Material | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Frequency - Max [Max] | Connector Type | Mounting Feature | Impedance | Fastening Type | Features | Number of Ports | Housing Color | Mounting Type | Connector Style | Center Contact Material | Shield Termination | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | 27 GHz | Receptacle Female Socket | Flange | 50 Ohms | Threaded | Field Replaceable For Hermetically Sealed Pin | 1 | Silver | Panel Mount | SMA | Beryllium Copper | Screw | Compression |
 Pasternack | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | 27 GHz | Receptacle Female Socket | Flange | 50 Ohms | Threaded | Field Replaceable For Hermetically Sealed Pin | 1 | Silver | Panel Mount | SMA | Beryllium Copper | Screw | Compression |
 Pasternack | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | 27 GHz | Receptacle Female Socket | Flange | 50 Ohms | Threaded | Field Replaceable For Hermetically Sealed Pin | 1 | Silver | Panel Mount | SMA | Beryllium Copper | Screw | Compression |
 Pasternack | Polytetrafluoroethylene (PTFE) | 500 | Stainless Steel | -65 ░C | 165 °C | Gold | 27 GHz | Receptacle Female Socket | Flange | 50 Ohms | Threaded | Field Replaceable For Hermetically Sealed Pin | 1 | Silver | Panel Mount | SMA | Beryllium Copper | Screw | Compression |
