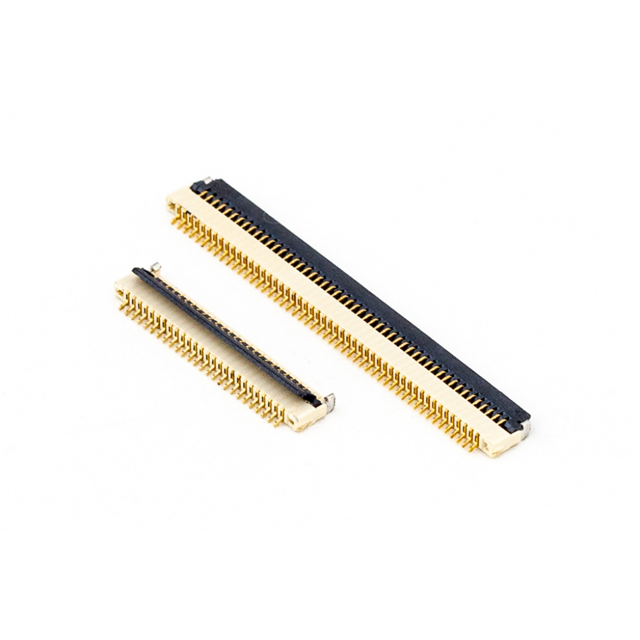

2531-B Series
Manufacturer: Oupiin
Beta
⌘K
CONN FFC BOTTOM 6POS 0.5MM R/A
| Part | Current Rating (Amps) | Material Flammability Rating | Contact Material | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type | Termination | Contact Finish | Features | Number of Positions | Locking Feature | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch | Pitch | Cable End Type | Mounting Type | Flat Flex Type | FFC, FCB Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | 0.5 A | UL94 V-0 | Phosphor Bronze | 50 V | 1 mm | 0.039 " | Contacts Bottom | Solder | Gold | Solder Retention | 6 | Flip Lock | -55 C | 85 °C | Liquid Crystal Polymer (LCP) | 0.02 " | 0.5 mm | Straight | Right Angle Surface Mount | FFC FPC | 0.3 mm |
