25174 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

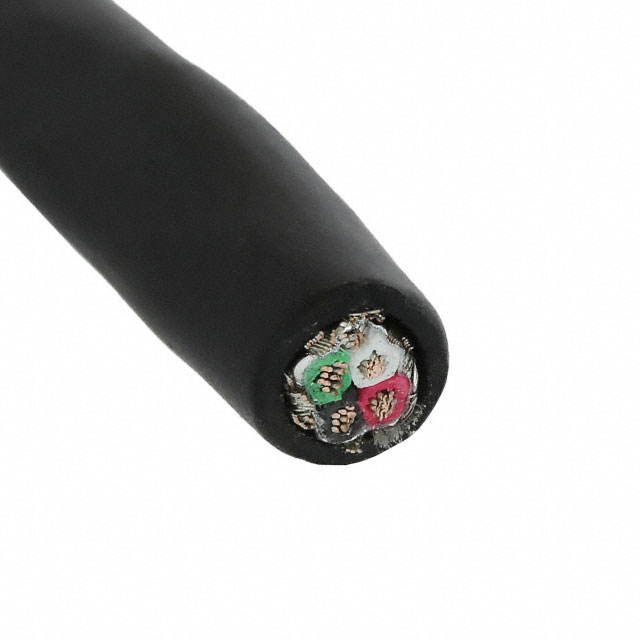

CABLE 4COND 16AWG BLK SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Insulation | Features | Conductor Material | Length | Length | Ratings | Wire Gauge | Shield Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Polyurethane (PU) | 4 | -30 ░C | 90 °C | 19 | 0.0117 in | 8.03 mm | 0.316 " | Multi-Conductor | 0.813 mm | 0.032 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 304.8 m | 1000 ft | ISO 10993 UL Style 20668 | 16 AWG | Braid Foil | Black |
