EDZ350 Series

Catalog

TERM BLK 2P SIDE ENT 5.08MM PCB

Part	Torque - Screw	Torque - Screw	Housing Material	Clamp Material - Plating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating	Screw Thread	Mounting Type	Color	Pitch	Pitch	Current	Wire Termination	Positions Per Level	Mating Orientation	Voltage	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]

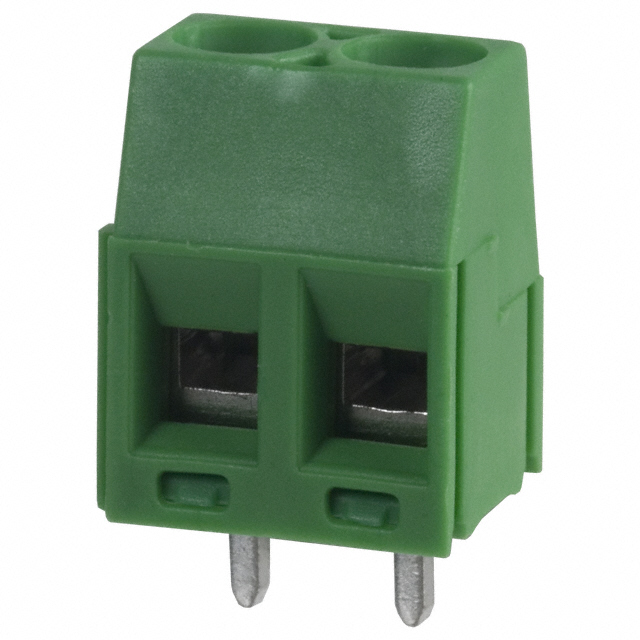

On Shore Technology Inc. EDZ350/2	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	-30 ░C	105 ░C	Brass	M3	Through Hole	Green	5.08 mm	0.2 in	16 A	Screw - Rising Cage Clamp	2	Horizontal with Board	300 VDC	1	12 AWG	28 AWG

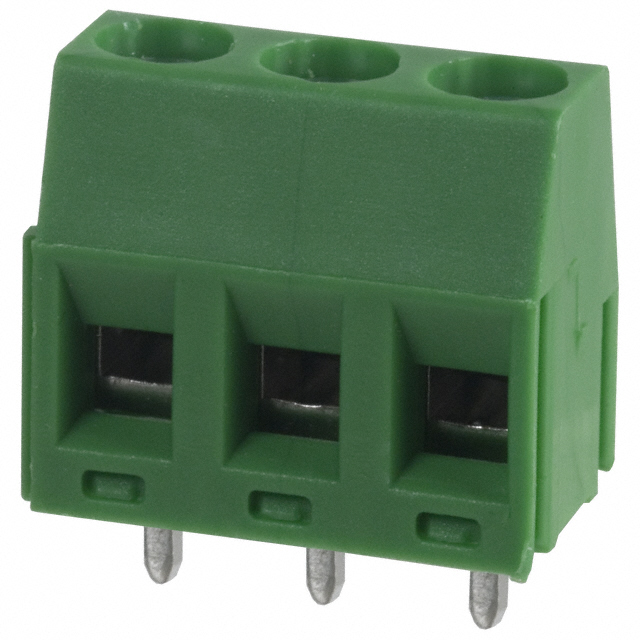

On Shore Technology Inc. EDZ350/3	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Copper	-30 ░C	105 ░C	Brass	M3	Through Hole	Green	5.08 mm	0.2 in	16 A	Screw - Rising Cage Clamp	3	Horizontal with Board	300 VDC	1	12 AWG	28 AWG
