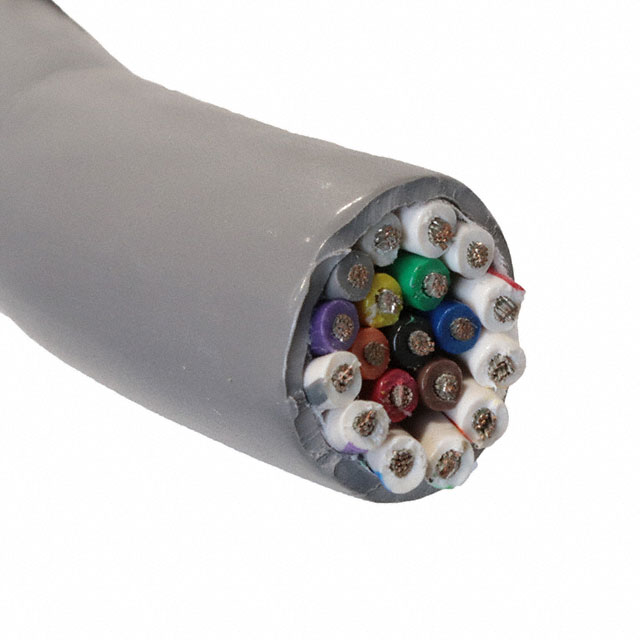

5439/19 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 1 /1000 FT /EACH
| Part | Cable Type | Conductor Strand [custom] | Conductor Strand [diameter] | Features | Conductor Material | Number of Conductors | Jacket Color | Wire Gauge | Conductor Insulation | Usage | Voltage | Jacket (Insulation) Material | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 19 | 0.0117 in | Biological Compatibility Rip Cord | Copper Tinned | 19 | Slate | 16 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 600 V | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 1.6 mm | 0.063 in | ISO 10993 UL Style 2501 | -30 ░C | 105 ░C | 0.746 in | 18.95 mm | ||
ALPHA WIRE | Multi-Conductor | 19 | 0.0117 in | Biological Compatibility Rip Cord | Copper Tinned | 19 | Slate | 16 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 600 V | Poly-Vinyl Chloride (PVC) | 2.108 mm | 0.083 " | ISO 10993 UL Style 2501 | -30 ░C | 105 ░C | 0.746 in | 18.95 mm | ||||
 ALPHA WIRE | Multi-Conductor | 19 | 0.0117 in | Biological Compatibility Rip Cord | Copper Tinned | 19 | Slate | 16 AWG | Poly-Vinyl Chloride (PVC) | Communication Control | 600 V | Poly-Vinyl Chloride (PVC) | 1.6 mm | 0.063 in | ISO 10993 UL Style 2501 | -30 ░C | 105 ░C | 0.746 in | 18.95 mm | 100 ft | 30.5 m |
