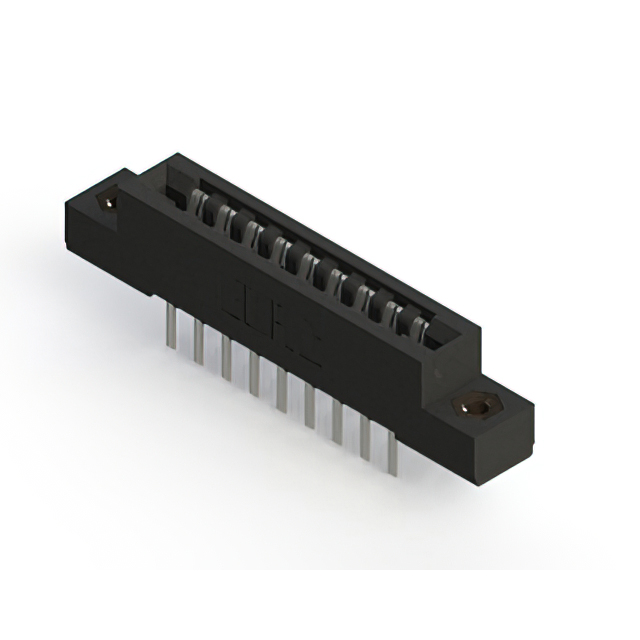

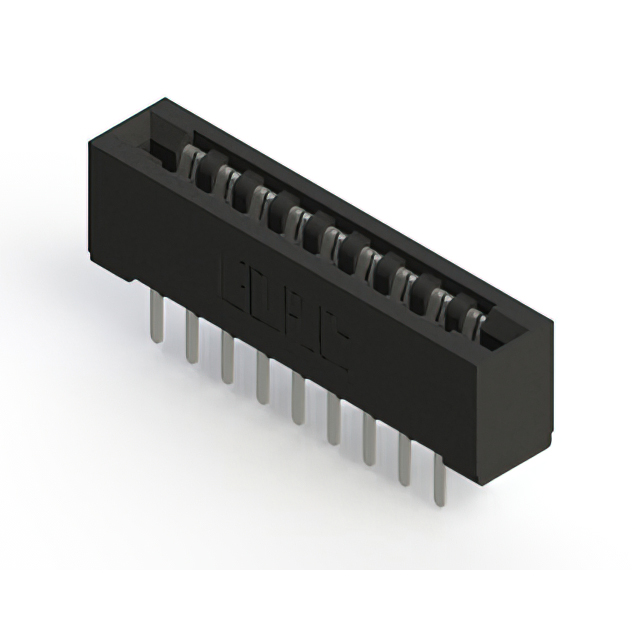

857-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 18POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Gender | Contact Finish | Pitch | Pitch | Number of Rows [custom] | Termination | Color | Card Type | Mounting Type | Number of Positions/Bay/Row | Read Out | Contact Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Gold | 3.96 mm | 0.156 in | 2 | Solder | Black | Non Specified - Dual Edge | Through Hole | 9 | Dual | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.25 Ám | 10 Áin | |||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Female | Gold | 3.96 mm | 0.156 in | Wire Wrap | Black | Non Specified - Single Edge | Through Hole | Single | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.25 Ám | 10 Áin | 1 | 1 | 18 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Female | Gold | 3.96 mm | 0.156 in | Solder | Black | Non Specified - Single Edge | Through Hole | Single | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.25 Ám | 10 Áin | 1 | 1 | 18 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Tin | 3.96 mm | 0.156 in | 2 | Solder | Black | Non Specified - Dual Edge | Right Angle Through Hole | 9 | Single | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | ||||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Female | Tin | 3.96 mm | 0.156 in | 2 | Solder Eyelet(s) | Black | Non Specified - Dual Edge | Through Hole | Dual | Semi Bellows | 36 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 1 | 18 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Tin | 3.96 mm | 0.156 in | 2 | Wire Wrap | Black | Non Specified - Dual Edge | Through Hole | 9 | Dual | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Gold | 3.96 mm | 0.156 in | 2 | Solder | Black | Non Specified - Dual Edge | Through Hole | 9 | Dual | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | ||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | Female | Tin | 3.96 mm | 0.156 in | 2 | Solder Eyelet(s) | Black | Non Specified - Dual Edge | Through Hole | Dual | Semi Bellows | 36 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 1 | 18 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Tin | 3.96 mm | 0.156 in | 2 | Solder | Black | Non Specified - Dual Edge | Board Edge Straddle Mount | 9 | Dual | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Card Extender | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 2 | Female | Tin | 3.96 mm | 0.156 in | 2 | Solder | Black | Non Specified - Dual Edge | Through Hole | 9 | Dual | Semi Bellows | 18 | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
