BD9A600 Series

Catalog

DC-DC SWITCHING BUCK STEP DOWN REGULATOR, ADJUSTABLE, 2.7V-5.5VIN, 800MV-3.85VOUT, 6AOUT, VQFN-16 ROHS COMPLIANT: YES

Part	Output Configuration	Mounting Type	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching	Current - Output	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Output Type	Supplier Device Package	Synchronous Rectifier	Voltage - Output (Min/Fixed)	Function	Topology	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Regulator Topology	Main Purpose	Voltage - Output	Contents
Rohm Semiconductor BD9A600MUV-E2	Positive	Surface Mount	16-VFQFN Exposed Pad	5.5 V	85 C	-40 ¯C	1 MHz	6 A	3.85 V	2.7 V	1	Adjustable	VQFN016V3030		0.8 V	Step-Down	Buck

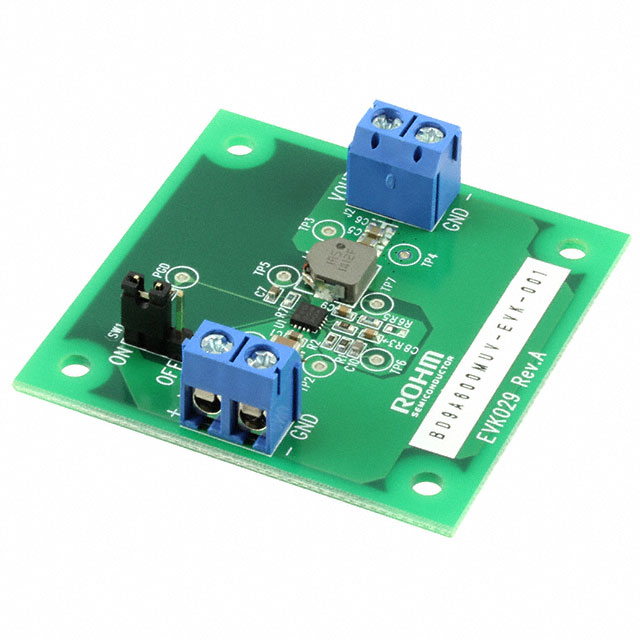

Rohm Semiconductor BD9A600MUV-EVK-001							1 MHz	6 A										1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	5.5 V	2.7 V	BD9A600	Buck	DC/DC Step Down	1.8 V	Board(s)
