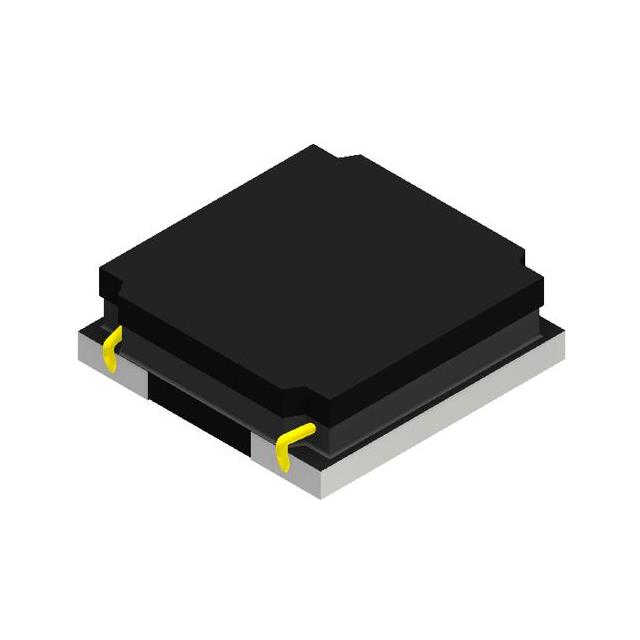

HPC 3015BMV Series
Manufacturer: TAI-TECH Advanced Electronics Co., Ltd.
Beta
⌘K
FIXED IND 22UH 850MA 0.54OHM SMD
| Part | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Current - Saturation (Isat) | Current Rating (Amps) | Shielding | Mounting Type | Inductance | Ratings | Type | Package / Case | Package / Case | DC Resistance (DCR) | Inductance Frequency - Test | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material - Core | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TAI-TECH Advanced Electronics Co., Ltd. | 20 % | -55 C | 125 °C | 590 mA | 0.85 A | Shielded | Surface Mount | 22 µH | AEC-Q200 | Wirewound | 3030 Metric | 1212 | 540 mOhm | 100 kHz | 3 mm | 0.118 in | 3 mm | 0.118 " | Ferrite | 3015 | 0.059 " | 1.5 mm | |
TAI-TECH Advanced Electronics Co., Ltd. | 20 % | -55 C | 125 °C | 900 mA | 1.3 A | Shielded | Surface Mount | 10 µH | AEC-Q200 | Wirewound | 3030 Metric | 1212 | 100 kHz | 3 mm | 0.118 in | 3 mm | 0.118 " | Ferrite | 3015 | 0.059 " | 1.5 mm | 264 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | 20 % | -55 C | 125 °C | 1.9 A | 2.3 A | Shielded | Surface Mount | 2.2 µH | AEC-Q200 | Wirewound | 3030 Metric | 1212 | 72 mOhm | 100 kHz | 3 mm | 0.118 in | 3 mm | 0.118 " | Ferrite | 3015 | 0.059 " | 1.5 mm | |
TAI-TECH Advanced Electronics Co., Ltd. | 20 % | -55 C | 125 °C | 2.7 A | 2.7 A | Shielded | Surface Mount | 1 µH | AEC-Q200 | Wirewound | 3030 Metric | 1212 | 100 kHz | 3 mm | 0.118 in | 3 mm | 0.118 " | Ferrite | 3015 | 0.059 " | 1.5 mm | 36 mOhm | |
TAI-TECH Advanced Electronics Co., Ltd. | 20 % | -55 C | 125 °C | 1.3 A | 1.7 A | Shielded | Surface Mount | 4.7 ÁH | AEC-Q200 | Wirewound | 3030 Metric | 1212 | 100 kHz | 3 mm | 0.118 in | 3 mm | 0.118 " | Ferrite | 3015 | 0.059 " | 1.5 mm | 134 mOhm |
