2823240 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

18P,2MM,PL HDR,DRVT,SMD,0.38AU,T

Part	Shrouding	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Style	Contact Shape	Connector Type	Insulation Material	Voltage Rating	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Mounting Type	Features	Contact Length - Mating	Contact Length - Mating	Contact Type	Termination	Fastening Type

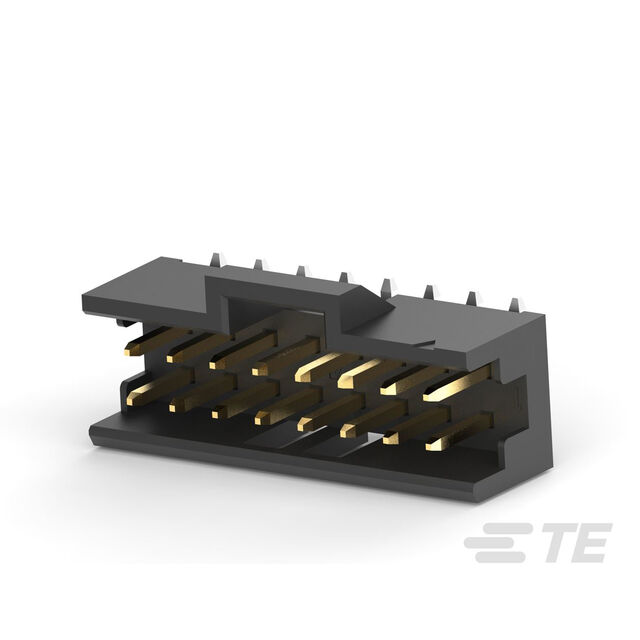

TE Connectivity Raychem Cable Protection 1-2823240-8	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	18	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

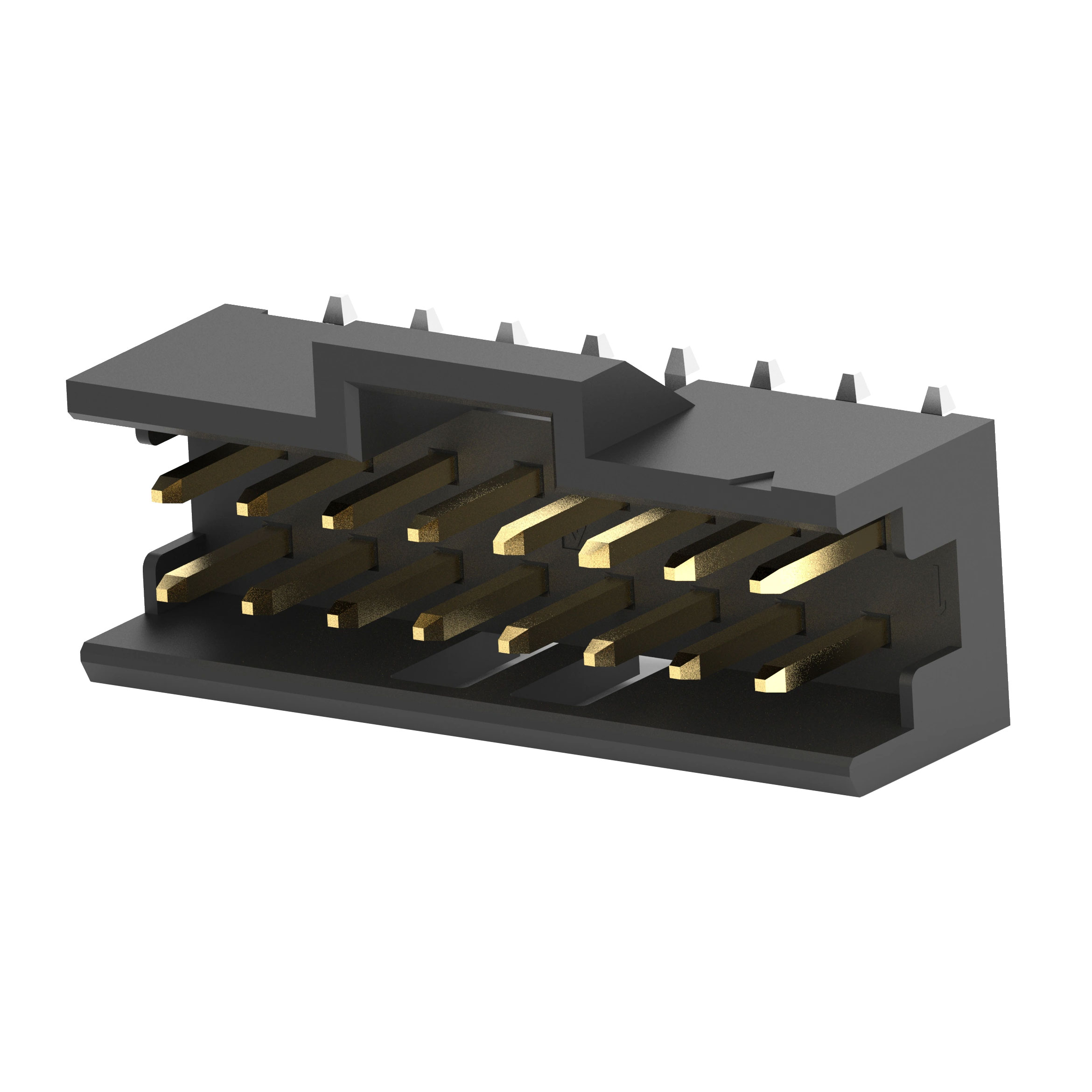

TE Connectivity Raychem Cable Protection 1-2823240-4	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	14	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

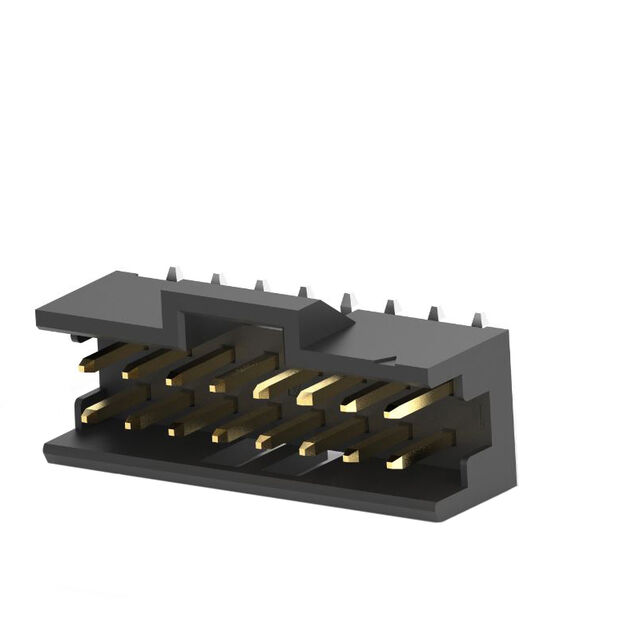

TE Connectivity Raychem Cable Protection 3-2823240-0	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	30	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder
TE Connectivity Raychem Cable Protection 3-2823240-2	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in		Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

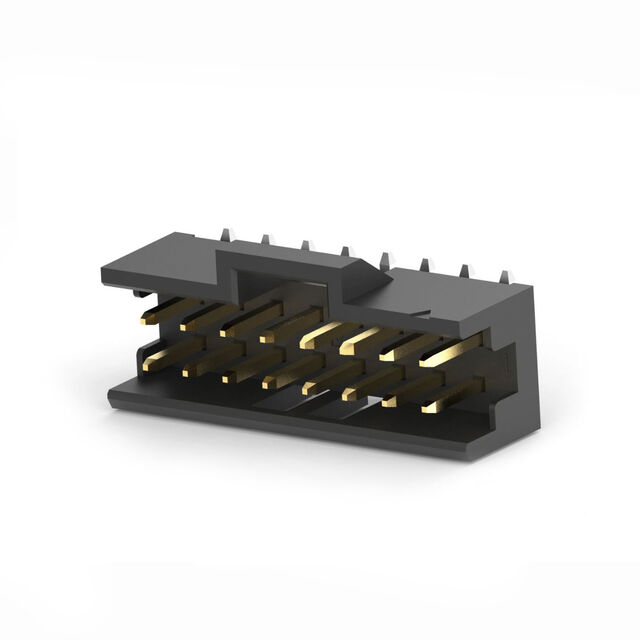

TE Connectivity Raychem Cable Protection 2-2823240-0	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	20	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

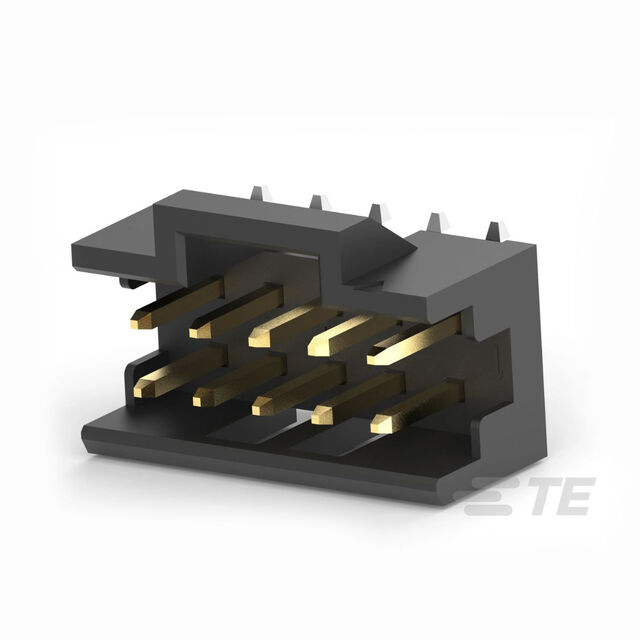

TE Connectivity Raychem Cable Protection 1-2823240-0	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	10	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

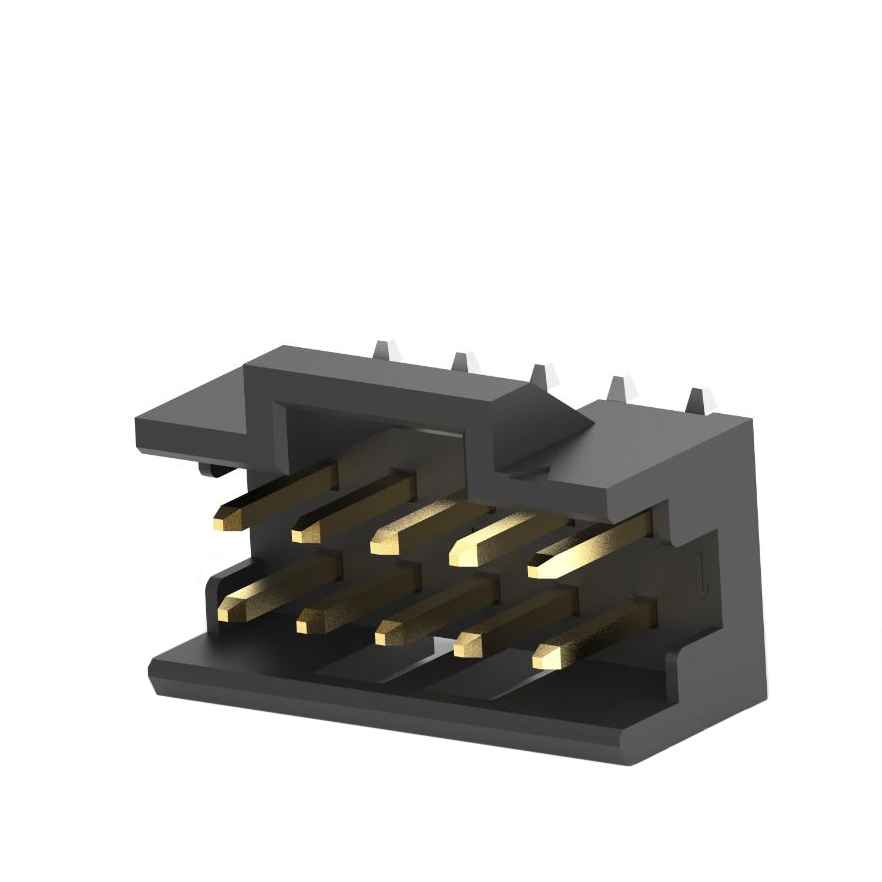

TE Connectivity Raychem Cable Protection 1-2823240-2	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	12	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder

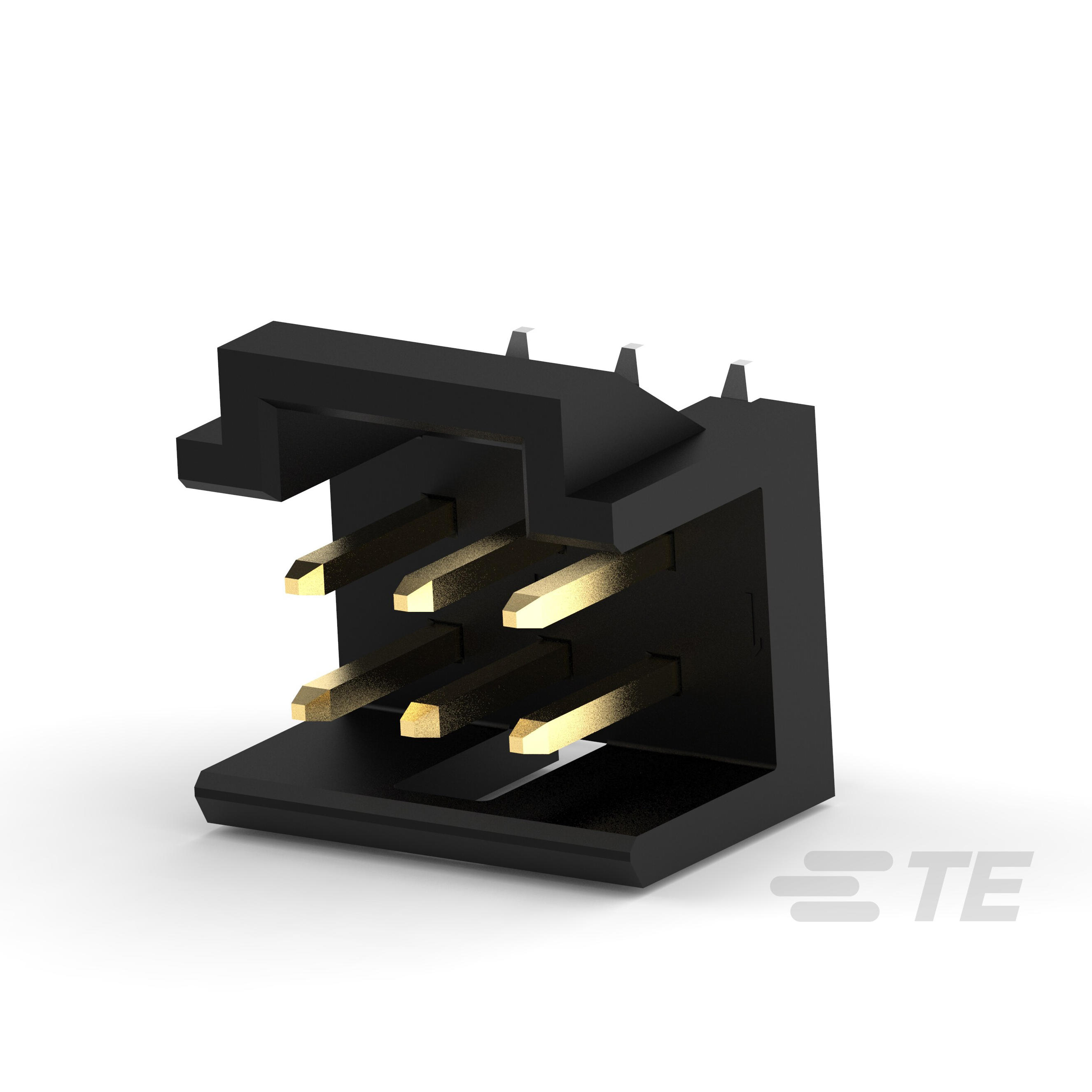

TE Connectivity Raychem Cable Protection 2823240-8	Shrouded - 2 Wall	2	0.079 in	2 mm	Tin	157.5 Áin	4 Ám	All	Board to Board Cable	Square	Header	Thermoplastic	125 VAC	UL94 V-0	125 °C	-40 °C	2 A	Gold	Black	Phosphor Bronze	15 µin	0.38 µm	0.079 in	2 mm	5.51 mm	0.217 in	8	Surface Mount	Pick and Place	4 mm	0.157 in	Male Pin	Solder	Latch Holder
