9SX1212 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

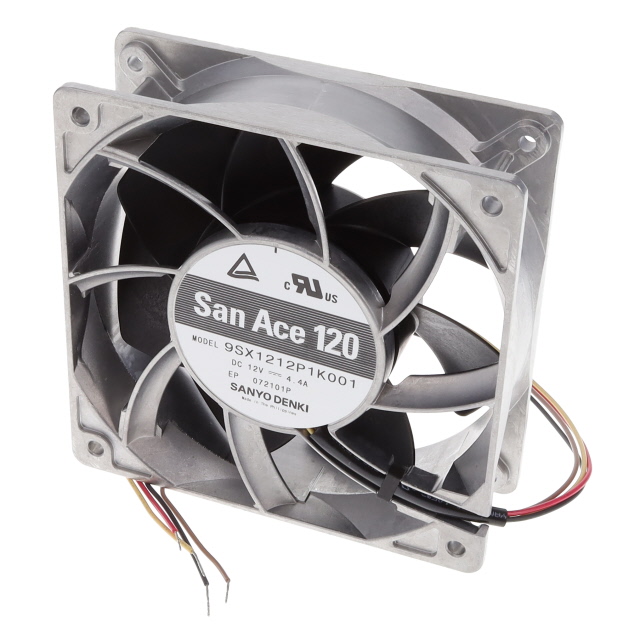

DC FAN AXIAL BALL BEARING 12V 10.8V TO 13.2V 257.7CFM 66DB 120 X 120 X 38MM SENSOR
| Part | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Current Rating (Amps) | Air Flow | Air Flow | Fan Type | RPM | Weight | Weight | Operating Temperature [Min] | Operating Temperature [Max] | Features | Static Pressure | Static Pressure | Voltage - Rated | Bearing Type | Width [y] | Termination | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 40000 Hrs | 10.8 VDC | 13.2 VDC | Aluminum | Plastic | 4.4 A | 257.7 CFM | 7.22 m³/min | Tubeaxial | 7400 RPM | 0.86 lb | 390.09 g | -10 °C | 60 °C | PWM Control Speed Sensor (Tach) | 480.8 Pa | 1.93 in H2O | 12 VDC | Ball | 38 mm | 4 Wire Leads | Square | 119 mm | 119 mm | 52.8 W | CSA TUV UL |
