9WP1248 Series

Catalog

FAN AXIAL 120X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Voltage - Rated	Ingress Protection	Static Pressure	Static Pressure	Termination	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Noise	Operating Temperature [Min]	Operating Temperature [Max]	Weight [custom]	Weight [custom]	Power (Watts)	RPM	Width [y]	Air Flow	Air Flow	Features
Sanyo Denki America Inc. 9WP1248H1021	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	2 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM
Sanyo Denki America Inc. 9WP1248H1011	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	3 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248H102	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	2 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM

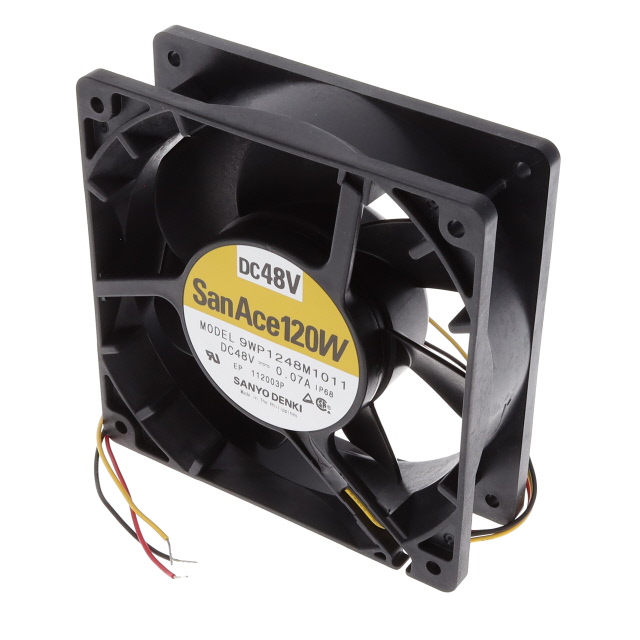

Sanyo Denki America Inc. 9WP1248M1011		Plastic	Plastic				48 VDC	IP68 - Dust Tight Waterproof			3 Wire Leads		120 mm	120 mm	Tubeaxial	Ball						3.36 W		38 mm			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248H101	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	3 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM	Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1248H1D01	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	3 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM	Locked Rotor Sensor

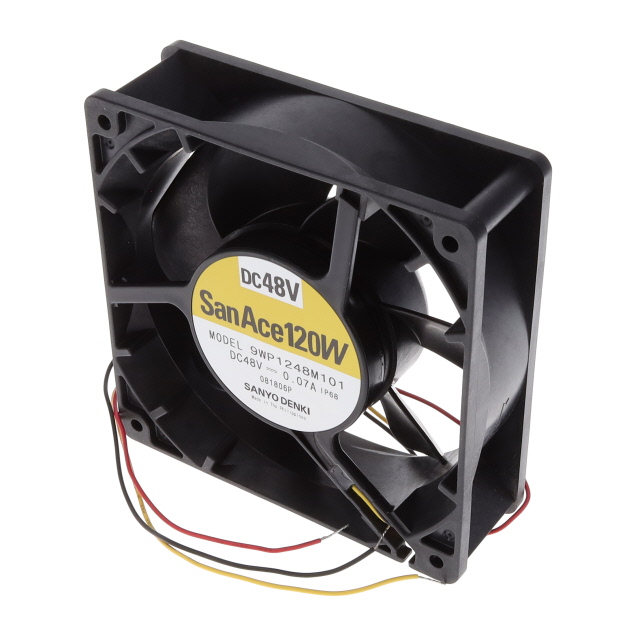

Sanyo Denki America Inc. 9WP1248M101		Plastic	Plastic				48 VDC	IP68 - Dust Tight Waterproof			3 Wire Leads		120 mm	120 mm	Tubeaxial	Ball						3.36 W		38 mm			Locked Rotor Protection Speed Sensor (Tach)

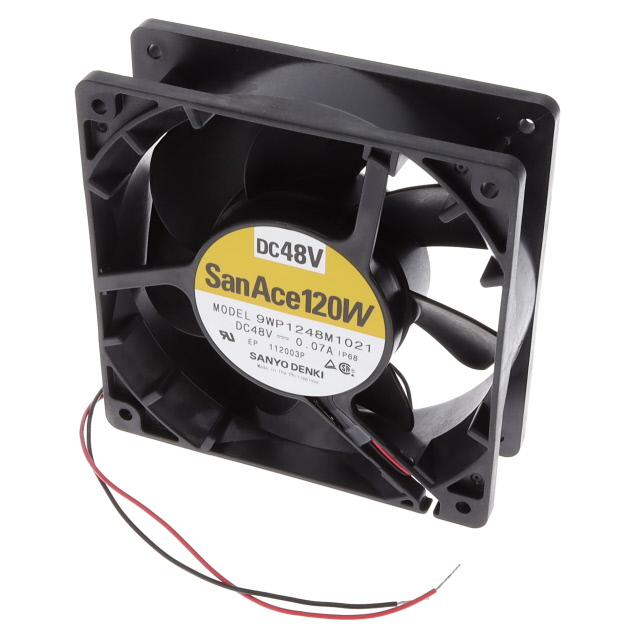

Sanyo Denki America Inc. 9WP1248M1021		Plastic	Plastic				48 VDC	IP68 - Dust Tight Waterproof			2 Wire Leads		120 mm	120 mm	Tubeaxial	Ball						3.36 W		38 mm
Sanyo Denki America Inc. 9WP1248H1D011	40000 Hrs	Plastic	Plastic	55.2 VDC	40.8 VDC	110 mA	48 VDC	IP68 - Dust Tight Waterproof	0.283 in H2O	70.5 Pa	3 Wire Leads	CSA TUV UL	120 mm	120 mm	Tubeaxial	Ball	39 dB(A)	-20 ░C	70 °C	0.794 lb	360.15 g	5.28 W	2600 RPM	38 mm	2.77 m³/min	99 CFM	Locked Rotor Sensor
