SMS-110 Series
Manufacturer: Samtec Inc.
Beta
⌘K

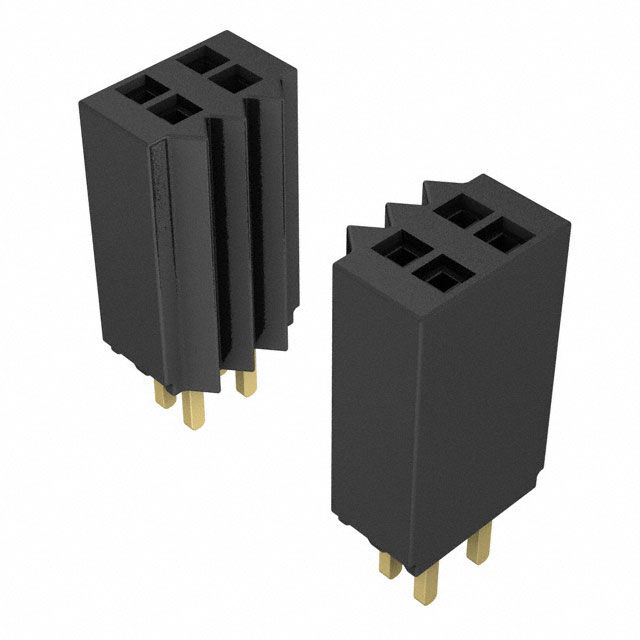

CONN RCPT 20POS 0.05 GOLD PCB
| Part | Connector Type | Contact Shape | Contact Finish - Mating | Insulation Color | Fastening Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Number of Rows | Number of Positions Loaded | Insulation Material | Contact Finish - Post | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | Receptacle | Square | Gold | Black | Push-Pull | 5 A | 0.05 in | 1.27 mm | 20 | Phosphor Bronze | 10 çin | 0.25 çm | Forked | 3 µin | 0.076 µm | Through Hole | -55 °C | 125 °C | 2.54 mm | 0.1 in | 2.54 mm | 0.1 in | 0.335 " | 8.51 mm | 2 | All | Liquid Crystal Polymer (LCP) | Gold | Solder |
