896-058 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 58POS 0.125

...

Part	Termination Rows [custom]	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Type	Number of Rows [custom]	Mounting Type	Termination	Number of Positions	Read Out	Pitch	Pitch	Contact Type	Number of Positions/Bay/Row	Color	Card Thickness [Max]	Card Thickness [Min]	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]

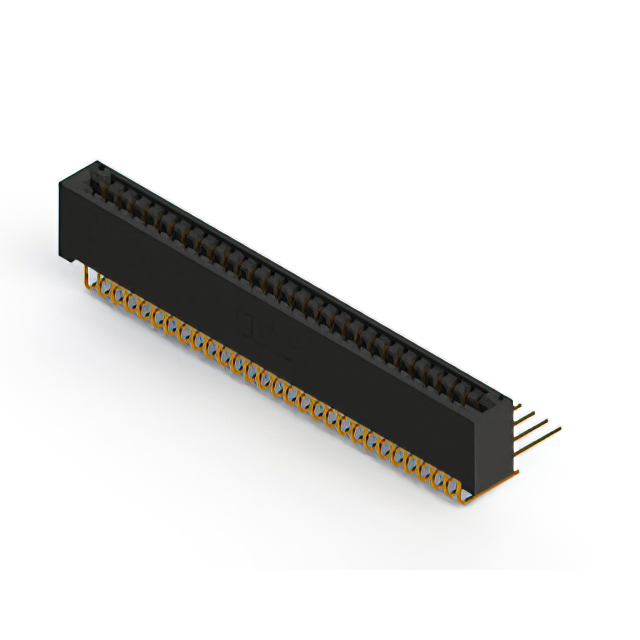

EDAC Inc. 896-058-559-201	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Right Angle Through Hole	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 896-058-560-807	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	M3 Threaded Insert Top Mount Opening
EDAC Inc. 896-058-560-808	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-058-500-208	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Through Hole	Solder Eyelet(s)	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 896-058-558-802	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Right Angle Through Hole	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm			3.25 mm	0.128 "

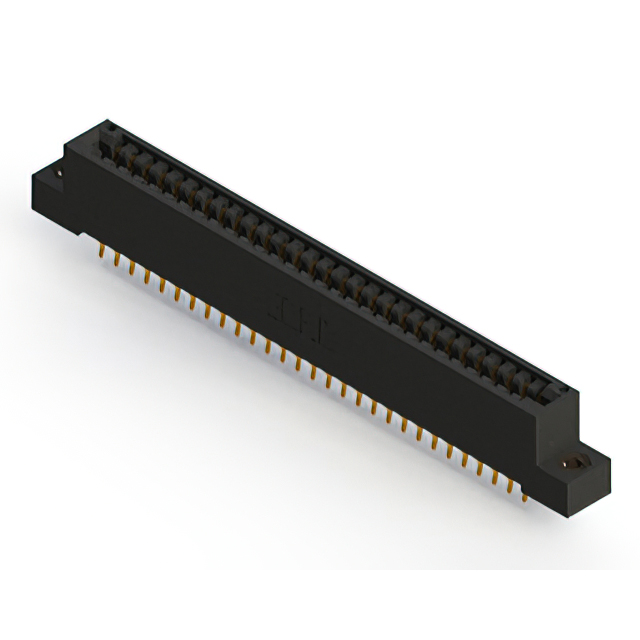

EDAC Inc. 896-058-556-207	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 896-058-556-808	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-058-520-808	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Through Hole	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-058-555-808	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder Eyelet(s)	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 896-058-560-203	2	Polyphenylene Sulfide (PPS)	125 °C	-40 C	Gold	Copper Alloy	0.25 Ám	10 Áin	Female	Non Specified - Dual Edge	2	Board Edge Straddle Mount	Solder	58	Dual	3.18 mm	0.125 in	Cantilever	29	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender	Floating Bobbin Flush Mount	2.95 mm	0.116 "
