LM2735-Q1 Series

520-kHz, 1.6-MHz space efficient boost and SEPIC DC/DC regulator, AEC-Q100 qualified

Catalog

520-kHz, 1.6-MHz space efficient boost and SEPIC DC/DC regulator, AEC-Q100 qualified

Part	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Output Configuration	Package / Case	Current - Output	Voltage - Input (Min) [Min]	Topology	Number of Outputs	Mounting Type	Output Type	Function	Voltage - Output (Max)	Frequency - Switching	Voltage - Input (Max) [Max]	Grade	Qualification	Regulator Topology	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Board Type	Voltage - Output	Main Purpose	Supplied Contents	Outputs and Type	Outputs and Type
Texas Instruments LM2735XQMFX/NOPB	-40 °C	125 ¯C	SOT-23-5	Positive	SC-74A SOT-753	2.1 A	2.7 V	Boost Flyback SEPIC	1	Surface Mount	Adjustable	Step-Up Step-Up/Step-Down	24 V	1.6 MHz	5.5 V	Automotive	AEC-Q100
Texas Instruments LM2735XQMF/NOPB	-40 °C	125 ¯C	SOT-23-5	Positive	SC-74A SOT-753	2.1 A	2.7 V	Boost Flyback SEPIC	1	Surface Mount	Adjustable	Step-Up Step-Up/Step-Down	24 V	1.6 MHz	5.5 V	Automotive	AEC-Q100

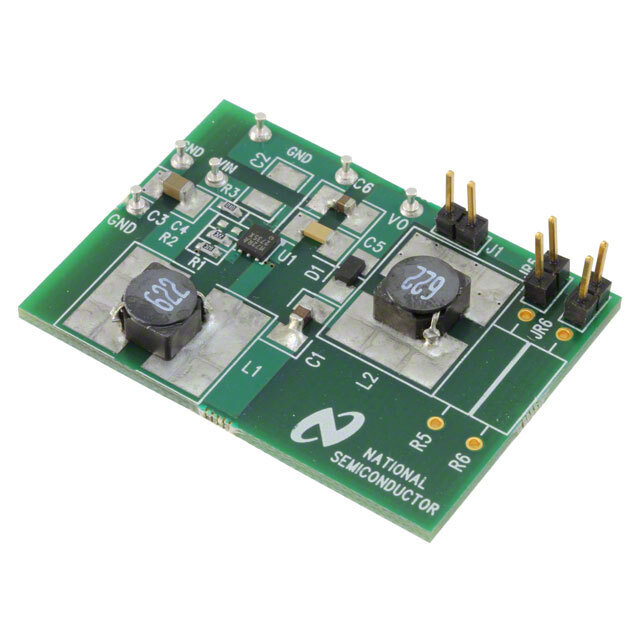

Texas Instruments LM2735SD3.3EVAL						500 mA								1.6 MHz				Boost	5.5 V	3 V	LM2735	Fully Populated	3.3 V	DC/DC Step Up	Board(s)	Non-Isolated	1
Texas Instruments LM2735XSDX/NOPB	-40 °C	125 ¯C	6-WSON (3x3)	Positive		2.1 A	2.7 V	Boost Flyback SEPIC	1	Surface Mount	Adjustable	Step-Up Step-Up/Step-Down	24 V	1.6 MHz	5.5 V
Texas Instruments LM2735YQSD/NOPB	-40 °C	125 ¯C	6-WSON (3x3)	Positive		2.1 A	2.7 V	Boost Flyback SEPIC	1	Surface Mount	Adjustable	Step-Up Step-Up/Step-Down	24 V	520 kHz	5.5 V	Automotive	AEC-Q100

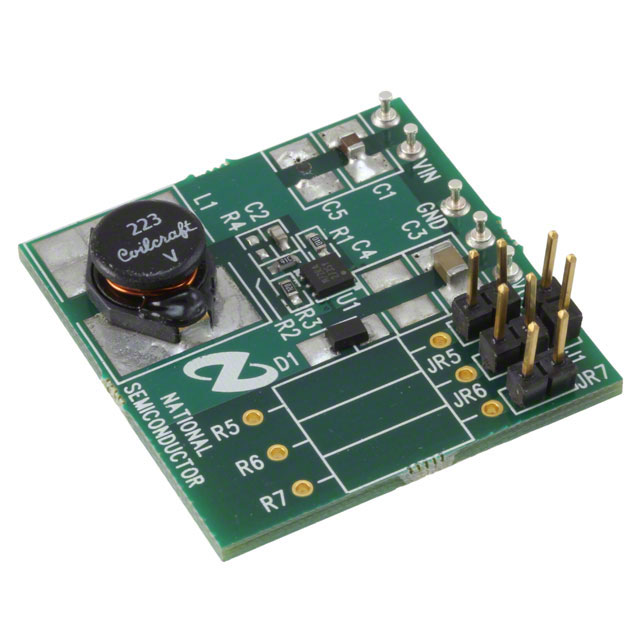

Texas Instruments LM2735XSDEVAL						500 mA								1.6 MHz				Boost	5.5 V	3 V	LM2735	Fully Populated	12 V	DC/DC Step Up	Board(s)	Non-Isolated	1
Texas Instruments LM2735XMFEVAL						500 mA								1.6 MHz				Boost	5.5 V	3 V	LM2735	Fully Populated	12 V	DC/DC Step Up	Board(s)	Non-Isolated	1
Texas Instruments LM2735XMFEVAL/NOPB						500 mA								1.6 MHz				Boost	5.5 V	3 V	LM2735	Fully Populated	12 V	DC/DC Step Up	Board(s)	Non-Isolated	1
Texas Instruments LM2735YMF	-40 °C	125 ¯C	SOT-23-5	Positive	SC-74A SOT-753	2.1 A	2.7 V	Boost Flyback SEPIC	1	Surface Mount	Adjustable	Step-Up Step-Up/Step-Down	24 V	520 kHz	5.5 V
Texas Instruments LM2735YMYEVAL						500 mA								520 kHz				Boost	5.5 V	3 V	LM2735	Fully Populated	12 V	DC/DC Step Up	Board(s)	Non-Isolated	1

Catalog

520-kHz, 1.6-MHz space efficient boost and SEPIC DC/DC regulator, AEC-Q100 qualified

Key Features

• AEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125°C Ambient Operating RangeInput Voltage Range: 2.7 V to 5.5 VOutput Voltage Range: 3 V to 24 V2.1-A Switch Current Over Full Temperature RangeCurrent-Mode ControlLogic High Enable PinUltra-Low Standby Current of 80 nA in Shutdown170-mΩ NMOS Switch±2% Feedback Voltage AccuracyEase-of-Use, Small Total Solution SizeInternal Soft StartInternal CompensationTwo Switching Frequencies520 kHz (LM2735-Y)1.6 MHz (LM2735-X)Uses Small Surface Mount Inductors and Chip CapacitorsTiny SOT-23 and WSON PackagesCreate a Custom Design Using the LM2735-Q1 With theWEBENCH®Power DesignerAEC-Q100 Qualified for Automotive Applications:Device Temperature Grade 1: –40°C to +125°C Ambient Operating RangeInput Voltage Range: 2.7 V to 5.5 VOutput Voltage Range: 3 V to 24 V2.1-A Switch Current Over Full Temperature RangeCurrent-Mode ControlLogic High Enable PinUltra-Low Standby Current of 80 nA in Shutdown170-mΩ NMOS Switch±2% Feedback Voltage AccuracyEase-of-Use, Small Total Solution SizeInternal Soft StartInternal CompensationTwo Switching Frequencies520 kHz (LM2735-Y)1.6 MHz (LM2735-X)Uses Small Surface Mount Inductors and Chip CapacitorsTiny SOT-23 and WSON PackagesCreate a Custom Design Using the LM2735-Q1 With theWEBENCH®Power Designer

Description

The LM2735-Q1 device is an easy-to-use, space-efficient 2.1-A low-side switch regulator, ideal for boost and SEPIC DC/DC regulation. The device provides all the active functions to provide local DC-DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductor and chip capacitors, while providing efficiencies of up to 90%. The device can be used as a post-boost, boosting from the main automotive system 3.3V rail to power CAN transceivers and other circuits requiring 5V. The 24V output capability allows the LM2735-Q1 to power audio amplifiers, antenna, power-over-coax (PoC), and automotive audio bus (A2B) devices as well. Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA, ideal for portable applications. Tiny SOT-23 and WSON packages provide space savings. Additional features include internal soft start, circuitry to reduce inrush current, pulse-by-pulse current limit, and thermal shutdown. The LM2735-Q1 device is an easy-to-use, space-efficient 2.1-A low-side switch regulator, ideal for boost and SEPIC DC/DC regulation. The device provides all the active functions to provide local DC-DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductor and chip capacitors, while providing efficiencies of up to 90%. The device can be used as a post-boost, boosting from the main automotive system 3.3V rail to power CAN transceivers and other circuits requiring 5V. The 24V output capability allows the LM2735-Q1 to power audio amplifiers, antenna, power-over-coax (PoC), and automotive audio bus (A2B) devices as well. Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA, ideal for portable applications. Tiny SOT-23 and WSON packages provide space savings. Additional features include internal soft start, circuitry to reduce inrush current, pulse-by-pulse current limit, and thermal shutdown.
