L6R60D Series

Catalog

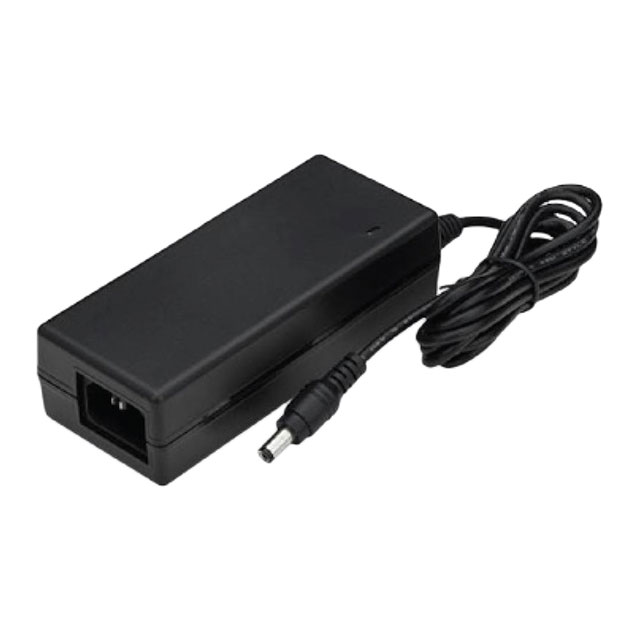

AC/DC DESKTOP ADAPTER 24V 65W

Part	Weight	Weight	Form	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Current - Output (Max) [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption	Cord Length	Cord Length	Approval Agency	Applications	Input Type	Region Utilized	Voltage - Output	Standard Number	Efficiency
Tri-Mag, LLC L6R60D-240-C14	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C14	2.71 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	24 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-300-C6	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C6	2.16 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	30 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-090-C14	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	63 W	264 VAC	90 VAC	IEC 320-C14	7 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	9 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-480	0.617 lb	280 g	Desktop (Class II)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C8	1.35 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	48 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-180-C8	0.617 lb	280 g	Desktop (Class II)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C8	3.61 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	18 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-420-C6	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C6	1.55 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	42 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-120-C8	0.617 lb	280 g	Desktop (Class II)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C8	5.41 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	12 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-420-C14	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C14	1.55 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	42 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-090-C6	0.617 lb	280 g	Desktop (Class I)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	63 W	264 VAC	90 VAC	IEC 320-C6	7 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	9 V	62368-1	Level VI
Tri-Mag, LLC L6R60D-360-C8	0.617 lb	280 g	Desktop (Class II)	40 °C	4.72 "	34 mm	2.01 "	120 mm	1.34 "	51 mm	65 W	264 VAC	90 VAC	IEC 320-C8	1.81 A	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	100 mW	1 m	39.4 in	cUL FCC UL	ITE (Commercial)	Cord (Sold Separately)	International	36 V	62368-1	Level VI
