TPS3847085 Series

380-nA voltage monitor for 12-V rails

Catalog

380-nA voltage monitor for 12-V rails

Part	Reset	Voltage - Threshold	Reset Timeout	Type	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output	Number of Voltages Monitored	Function	Supplied Contents	Utilized IC / Part
Texas Instruments TPS3847085DBVT	Active Low	8.5 V	4.5 ms	Simple Reset/Power-On Reset	SOT-23-5	SC-74A SOT-753	-40 °C	85 °C	Surface Mount	Push-Pull Totem Pole	1

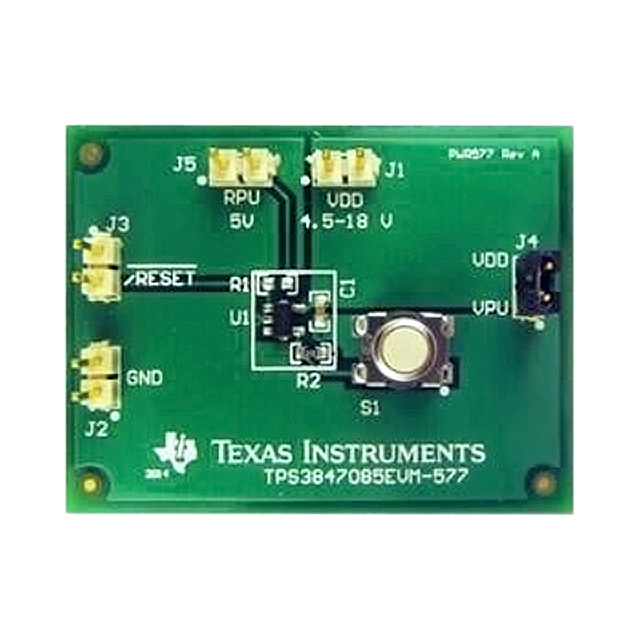

Texas Instruments TPS3847085EVM-577				Power Management								Power Supply Supervisor/Tracker/Sequencer	Board(s)	TPS3847085
Texas Instruments TPS3847108DBVR	Active Low	10.8 V	4.5 ms	Simple Reset/Power-On Reset	SOT-23-5	SC-74A SOT-753	-40 °C	85 °C	Surface Mount	Push-Pull Totem Pole	1
Texas Instruments TPS3847108DBVT	Active Low	10.8 V	4.5 ms	Simple Reset/Power-On Reset	SOT-23-5	SC-74A SOT-753	-40 °C	85 °C	Surface Mount	Push-Pull Totem Pole	1
Texas Instruments TPS3847085DBVR	Active Low	8.5 V	4.5 ms	Simple Reset/Power-On Reset	SOT-23-5	SC-74A SOT-753	-40 °C	85 °C	Surface Mount	Push-Pull Totem Pole	1

Catalog

380-nA voltage monitor for 12-V rails

Key Features

• Ultralow Supply Current: 380 nAWide Supply Voltage Range: 4.5 V to 18 VHigh Threshold Accuracy: ±2.5%Internal HysteresisPush-Pull Output20-ms (max) Delay TimingFactory-Trimmed, Fixed-Voltage ThresholdsSpecified Operating Temperature Range:–40°C to +85°COperational from –40°C to +105°CPackage: 5-Pin SOTUltralow Supply Current: 380 nAWide Supply Voltage Range: 4.5 V to 18 VHigh Threshold Accuracy: ±2.5%Internal HysteresisPush-Pull Output20-ms (max) Delay TimingFactory-Trimmed, Fixed-Voltage ThresholdsSpecified Operating Temperature Range:–40°C to +85°COperational from –40°C to +105°CPackage: 5-Pin SOT

Description

The TPS3847 family consists of wide operating voltage, ultralow-current devices that monitor the voltage at the supply pin. The device asserts an active-low reset signal whenever the VCC supply voltage drops below the factory-trimmed reset threshold voltage. The reset output remains asserted for 20 ms (max) after the VCC voltage rises above the threshold voltage. The ultralow current consumption of 380 nA combined with 18-V capability makes the TPS3847 ideal for use in low-power and portable applications. The TPS3847 features precision, factory-trimmed threshold voltages and extremely low-power operation. The TPS3847 is available in an industry-standard, 5-pin, SOT package. The TPS3847 family consists of wide operating voltage, ultralow-current devices that monitor the voltage at the supply pin. The device asserts an active-low reset signal whenever the VCC supply voltage drops below the factory-trimmed reset threshold voltage. The reset output remains asserted for 20 ms (max) after the VCC voltage rises above the threshold voltage. The ultralow current consumption of 380 nA combined with 18-V capability makes the TPS3847 ideal for use in low-power and portable applications. The TPS3847 features precision, factory-trimmed threshold voltages and extremely low-power operation. The TPS3847 is available in an industry-standard, 5-pin, SOT package.
