PZC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Style	Contact Shape	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Shrouding	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Post	Termination	Number of Rows	Contact Finish - Mating	Connector Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Overall Contact Length [x]	Overall Contact Length [x]	Contact Material	Insulation Color	Mounting Type	Number of Positions	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]

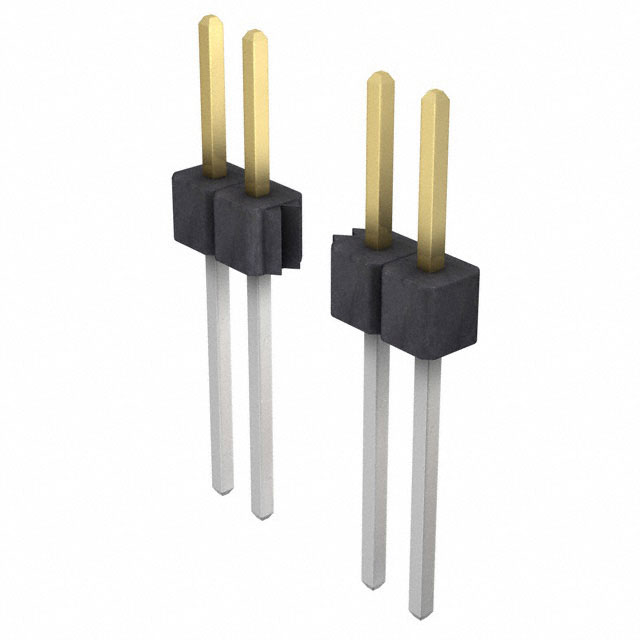

Sullins Connector Solutions PZC36SADN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	10.67 mm	0.42 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.1 in	2.54 mm	Tin	Solder	1	Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull	19.05 mm	0.75 in	Copper Alloy	Black	Through Hole	36	3 A

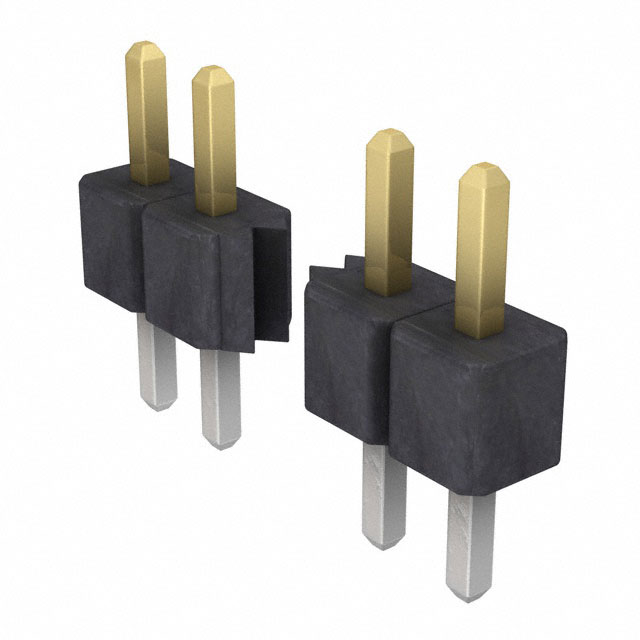

Sullins Connector Solutions PZC36SZAN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	3.05 mm	0.12 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.1 in	2.54 mm	Tin	Solder	1	Gold	Header	Male Pin	0.12 in	3.05 mm	Push-Pull			Copper Alloy	Black	Through Hole	36	3 A	0.34 in	8.64 mm

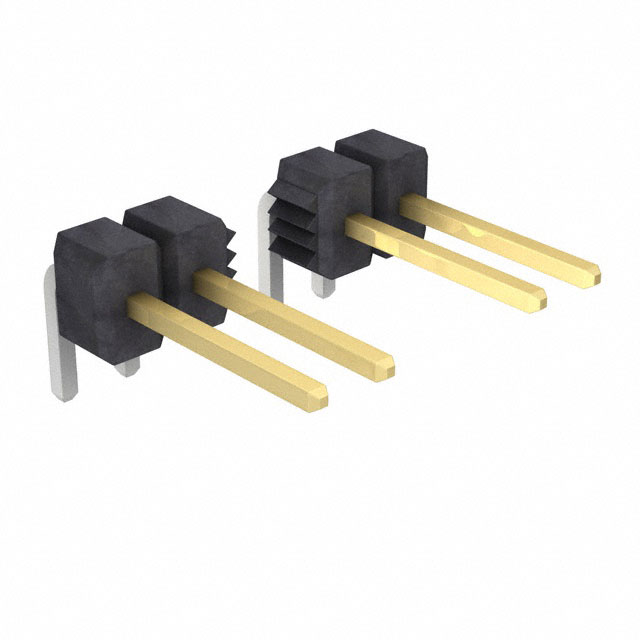

Sullins Connector Solutions PZC36SGAN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	3.05 mm	0.12 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.14 in	3.56 mm	Tin	Solder	1	Gold	Header	Male Pin	0.318 in	8.08 mm	Push-Pull			Copper Alloy	Black	Right Angle Through Hole	36	3 A

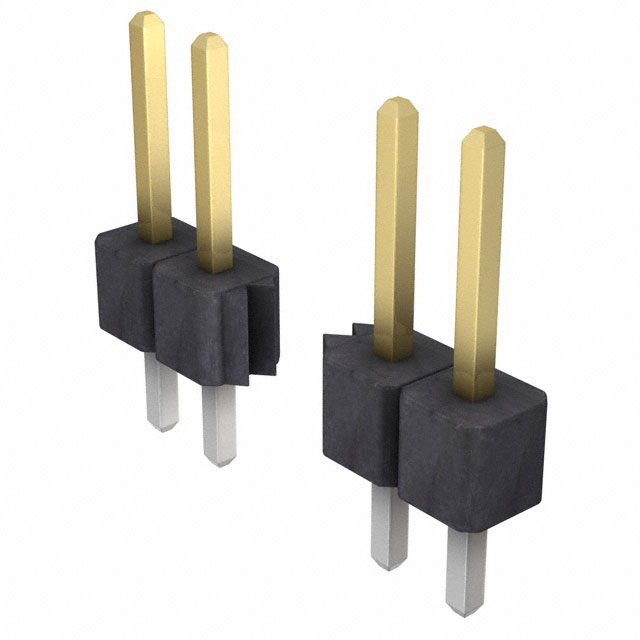

Sullins Connector Solutions PZC36SAAN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	3.05 mm	0.12 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.1 in	2.54 mm	Tin	Solder	1	Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull	11.43 mm	0.45 in	Copper Alloy	Black	Through Hole	36	3 A
Sullins Connector Solutions PZC36SFAN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	3.05 mm	0.12 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.1 in	2.54 mm	Tin	Solder	1	Gold	Header	Male Pin	0.318 in	8.08 mm	Push-Pull	13.67 mm	0.538 in	Copper Alloy	Black	Through Hole	36	3 A

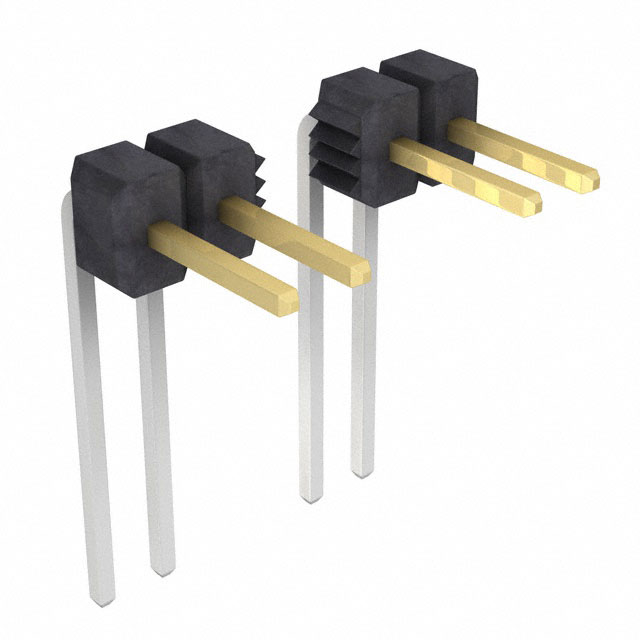

Sullins Connector Solutions PZC36SBEN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	13.21 mm	0.52 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.14 in	3.56 mm	Tin	Solder	1	Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull			Copper Alloy	Black	Right Angle Through Hole	36	3 A
Sullins Connector Solutions PZC36SAEN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	13.21 mm	0.52 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.1 in	2.54 mm	Tin	Solder	1	Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull			Copper Alloy	Black	Through Hole	36	3 A	0.85 in	21.59 mm

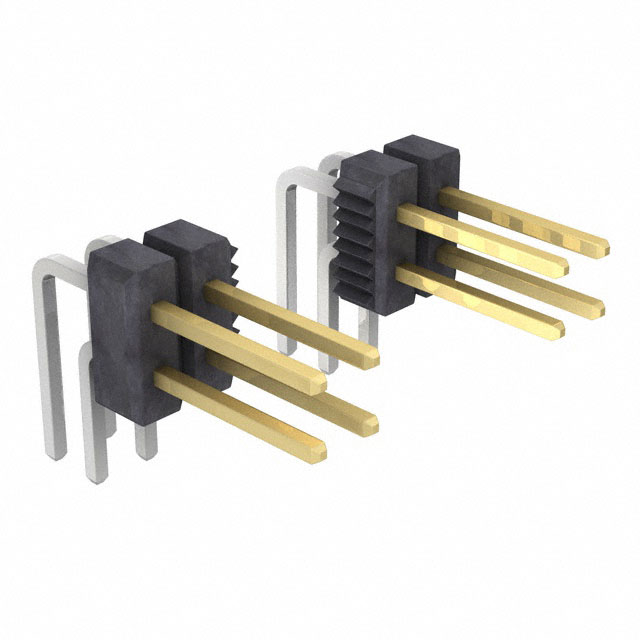

Sullins Connector Solutions PZC36DGBN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	5.58 mm	0.22 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin			Tin	Solder		Gold	Header	Male Pin	0.318 in	8.08 mm	Push-Pull			Copper Alloy	Black	Right Angle Through Hole	72	3 A			6.1 mm	0.24 in	2	0.1 in	2.54 mm

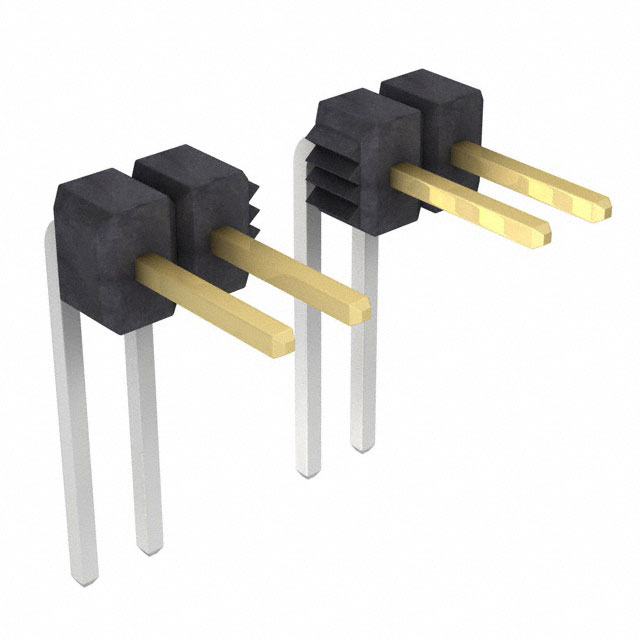

Sullins Connector Solutions PZC36SBDN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	10.67 mm	0.42 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin	0.14 in	3.56 mm	Tin	Solder	1	Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull			Copper Alloy	Black	Right Angle Through Hole	36	3 A

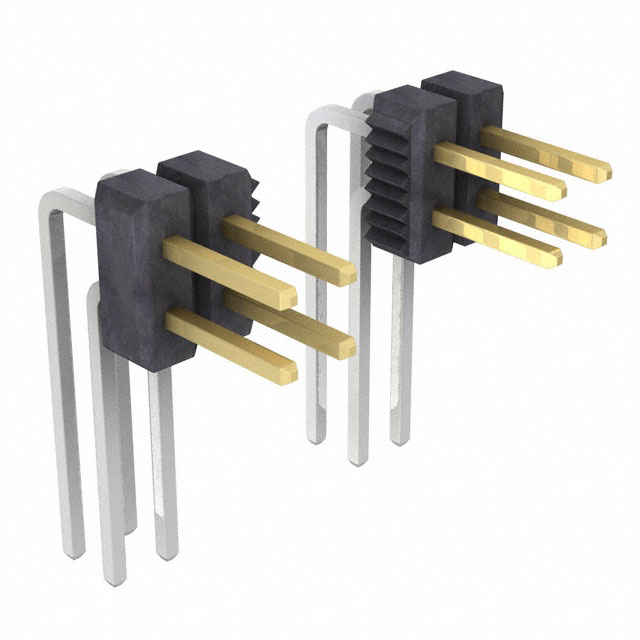

Sullins Connector Solutions PZC36DBDN	2.54 µm	100 µin	Polyester Thermoplastic	Board to Board Cable	Square	10.67 mm	0.42 in	0.1 "	2.54 mm	All	Unshrouded	UL94 V-0	0.25 µm	10 µin			Tin	Solder		Gold	Header	Male Pin	0.23 in	5.84 mm	Push-Pull			Copper Alloy	Black	Right Angle Through Hole	72	3 A			6.1 mm	0.24 in	2	0.1 in	2.54 mm
