842-110 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 110POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Color	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Mounting Type	Read Out	Pitch	Pitch	Contact Type	Termination	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 842-110-541-207	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Wire Wrap
EDAC Inc. 842-110-540-208	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Wire Wrap

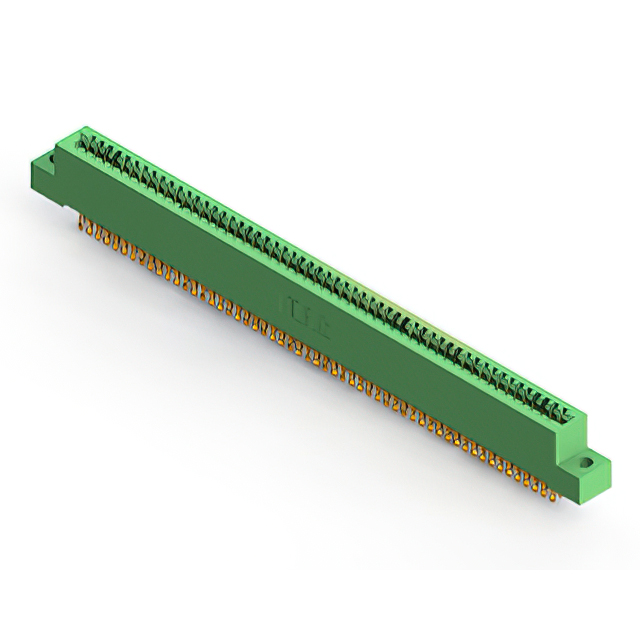

EDAC Inc. 842-110-555-204	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	Cantilever	Solder	0.156 "	3.96 mm	Card Extender

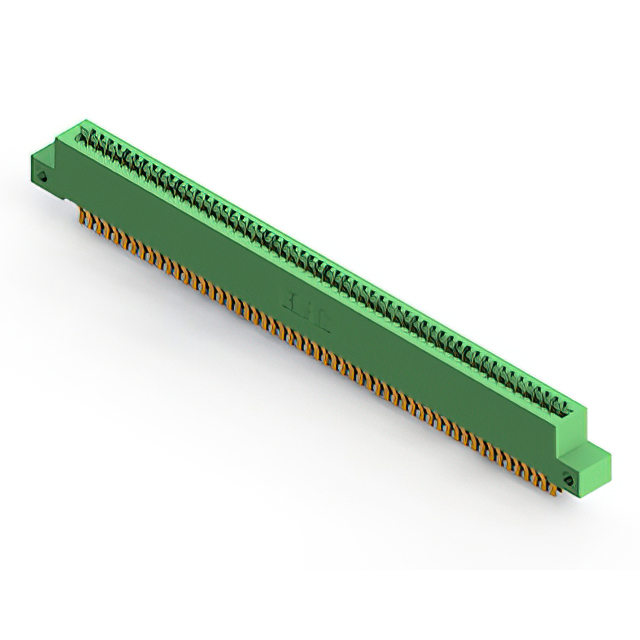

EDAC Inc. 842-110-560-212	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Board Edge Straddle Mount	Dual	0.1 "	2.54 mm	Cantilever	Solder	0.128 "	3.25 mm	Card Extender

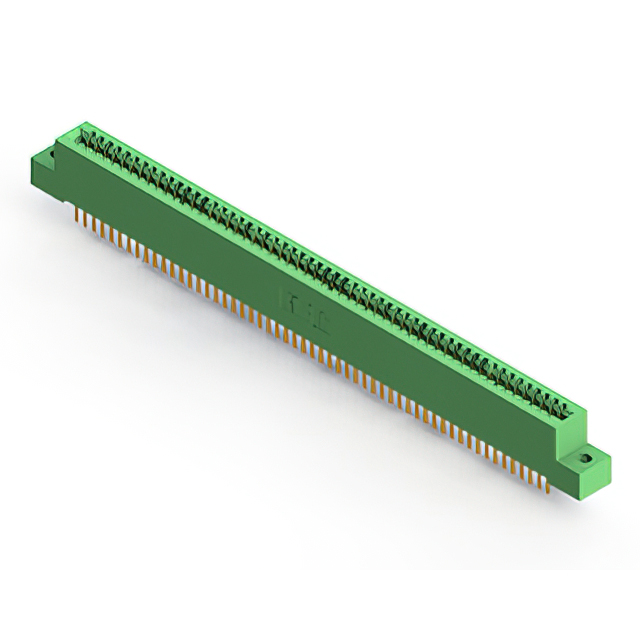

EDAC Inc. 842-110-520-202	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Solder	0.128 "	3.25 mm

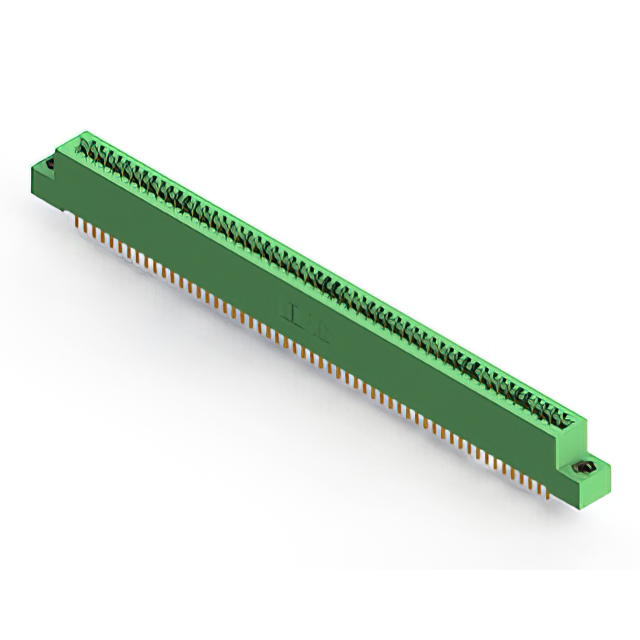

EDAC Inc. 842-110-521-208	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Solder
EDAC Inc. 842-110-520-201	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin		110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Solder

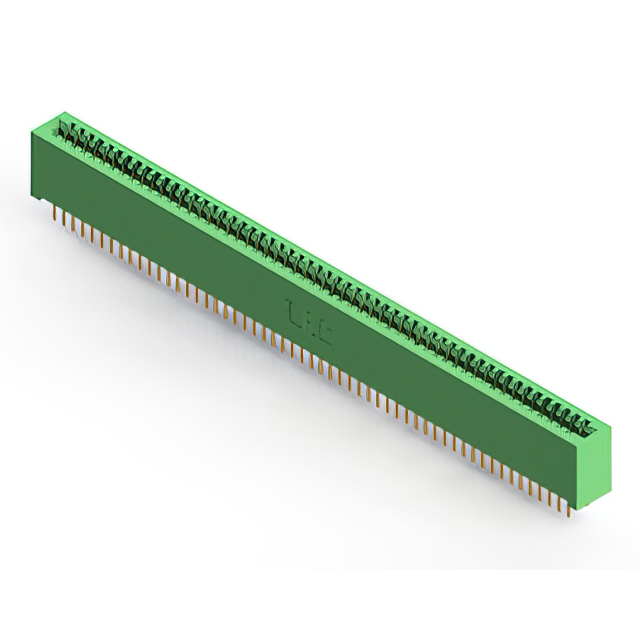

EDAC Inc. 842-110-524-201	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin		110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Solder
EDAC Inc. 842-110-521-203	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Solder	0.116 "	2.95 mm
EDAC Inc. 842-110-540-202	2	Diallyl Phthalate (DAP)	55	Green	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	110	125 °C	-40 C	Female	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Through Hole	Dual	0.1 "	2.54 mm	Cantilever	Wire Wrap	0.128 "	3.25 mm
