1470513 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

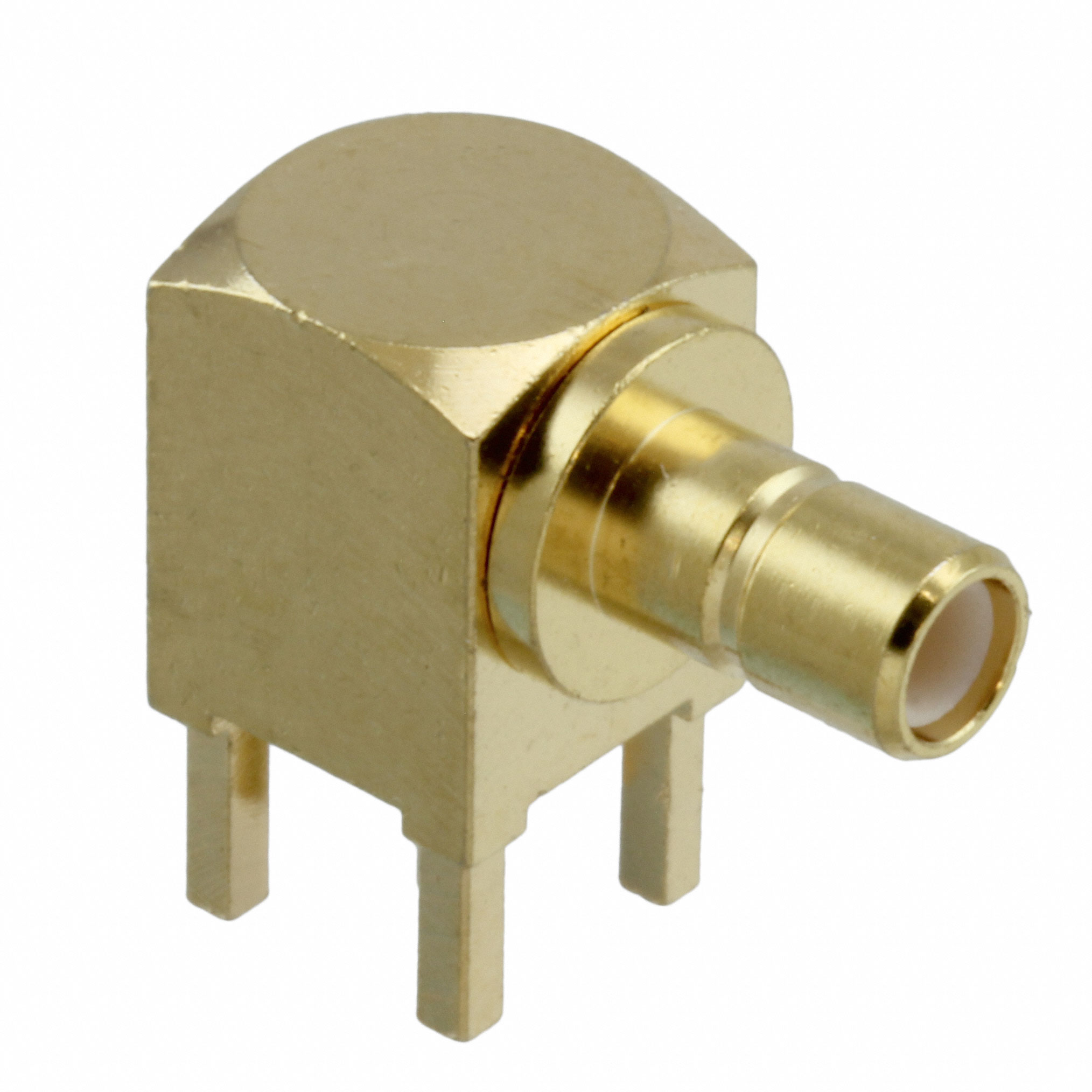

CONN SMB JACK R/A 50 OHM PCB
| Part | Mounting Type | Insertion Loss | Fastening Type | Body Material | Mating Cycles | Frequency - Max [Max] | Dielectric Material | Center Contact Material | Body Finish | Connector Type | Shield Termination | Number of Ports | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Center Contact Plating | Housing Color | Voltage Rating | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | 0.6 dB | Snap-On | Brass | 500 | 4 GHz | Polytetrafluoroethylene (PTFE) | Brass | Gold | Jack Male Pin | Solder | 1 | SMB | -65 ░C | 165 °C | Solder | Gold | Gold | 335 V | 50 Ohms |
