TPS542 Series
Manufacturer: Texas Instruments
Beta
⌘K

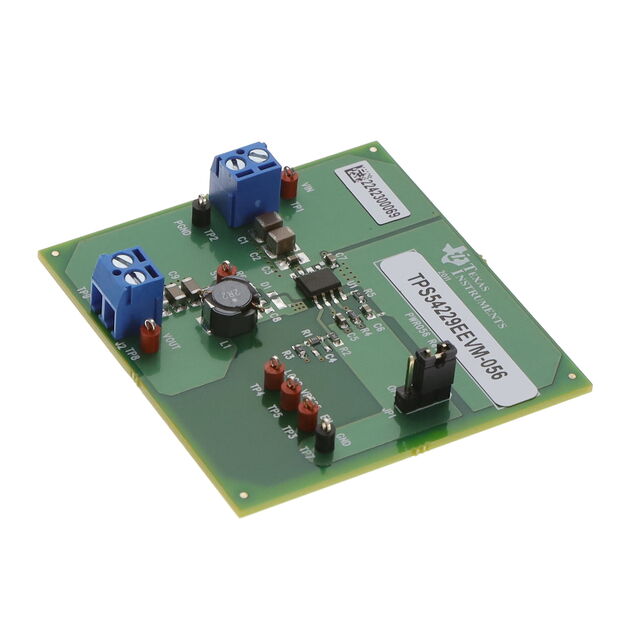

EVAL MODULE FOR TPS54229E-056
| Part | Main Purpose | Regulator Topology | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Utilized IC / Part | Frequency - Switching | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Voltage - Output [Min] | Voltage - Output [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DC/DC Step Down | Buck | Board(s) | Non-Isolated | 1 | Fully Populated | TPS54229 | 650 kHz | 2 A | 18 V | 4.5 V | 1.05 V | ||

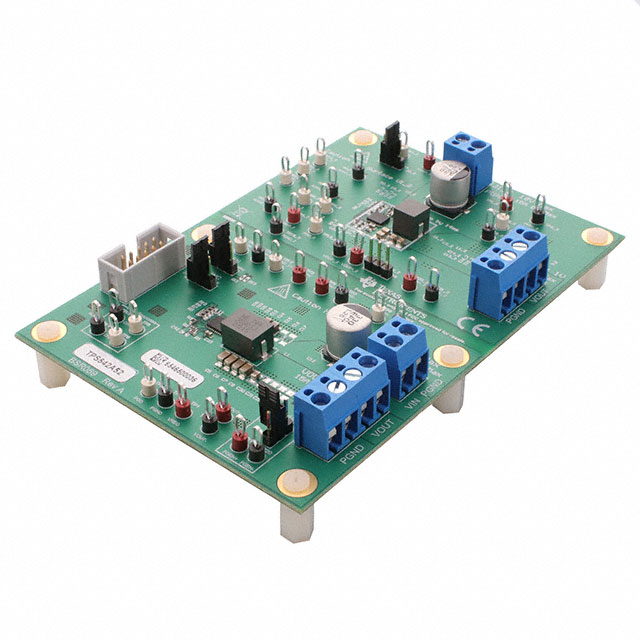

 Texas Instruments | DC/DC Step Down | Buck | Board(s) | Non-Isolated | 1 | Fully Populated | TPS542A50 | 1 MHz | 15 A | 18 V | 4 V | 0.5 V | 5.5 V |
