WB15L Series
Manufacturer: NKK Switches
Beta
⌘K

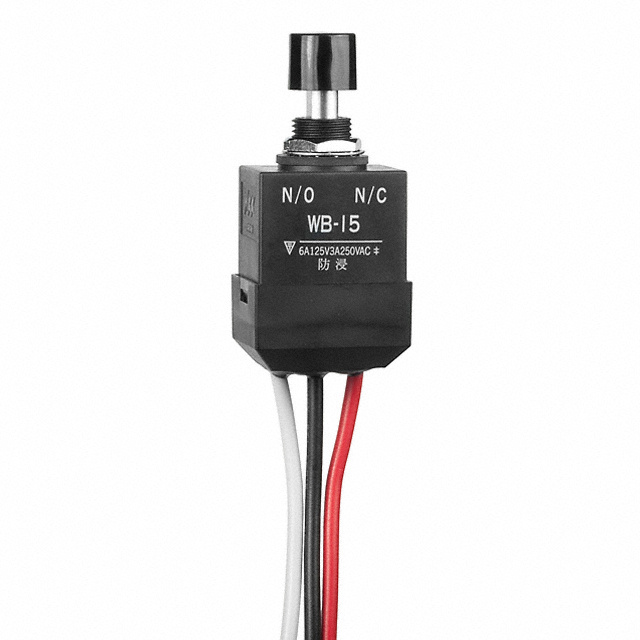

PUSHBUTTON SWITCH, WB SERIES, 12.5 MM, SPDT, ON-(ON), ROUND, BLACK
| Part | Mechanical Life | Electrical Life | Switch Function | Current Rating (Amps) | Termination Style | Color - Actuator/Cap | Voltage Rating - DC | Ingress Protection | Actuator Type | Voltage Rating - AC | Type | Panel Cutout Dimensions [diameter] | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 30000 Steps | 15000 Cycles | On-Mom | 6 A | Wire Leads | Black | 30 V | IP67 - Dust Tight Waterproof | Button Round | 125 V | Standard | 12.5 mm | No Marking | -30 ░C | 70 °C | SPDT | Stainless Steel | Panel Mount Rear |
