PFB1224 Series

Catalog

FAN AXIAL 120X38MM 24VDC WIRE

Part	Material - Blade	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Power (Watts)	Noise	Static Pressure	Static Pressure	RPM	Weight	Weight	Termination	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Width [y]	Features	Voltage - Rated	Air Flow	Air Flow	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Ingress Protection
Delta Electronics PFB1224UHE-R00	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	48 W	66.5 dB(A)	1.412 in H2O	351.7 Pa	5500 RPM	0.838 lb	380.11 g	3 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm	Locked Rotor Sensor	24 VDC	7.08 mł/min	252.9 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C

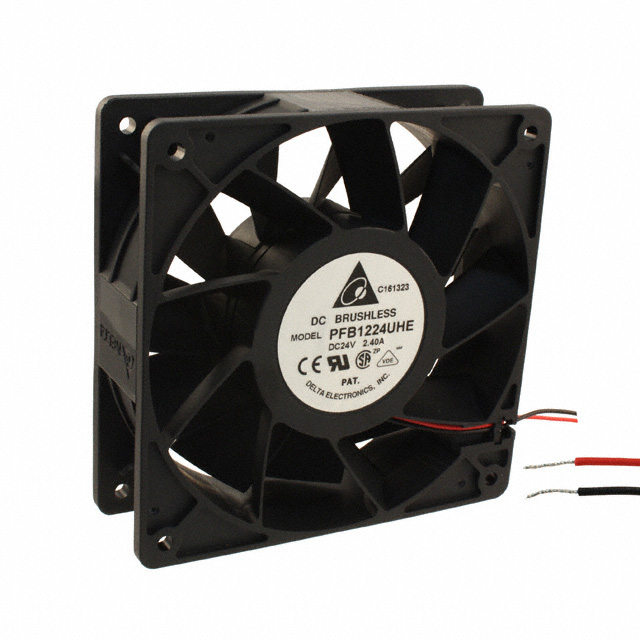

Delta Electronics PFB1224UHE	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	48 W	66.5 dB(A)	1.412 in H2O	351.7 Pa	5500 RPM	0.838 lb	380.11 g	2 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm		24 VDC	7.08 mł/min	252.9 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C

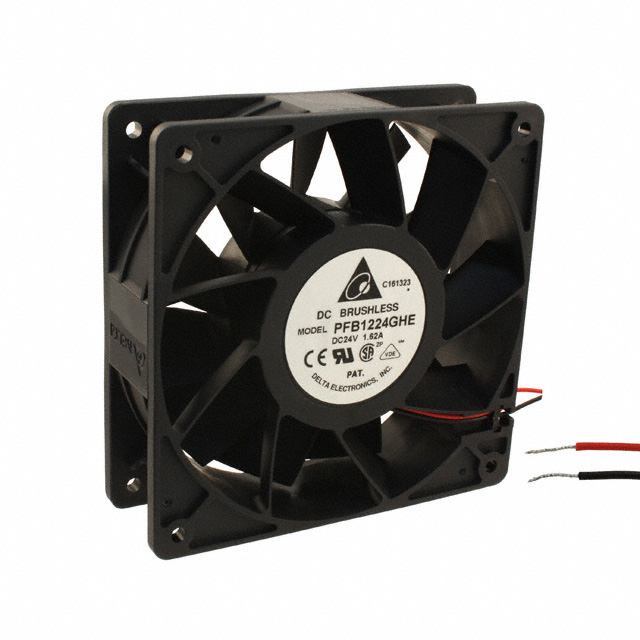

Delta Electronics PFB1224GHE	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	32.4 W	64 dB(A)	1.075 in H2O	267.8 Pa	4800 RPM	0.838 lb	380.11 g	2 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm		24 VDC	6.1 m³/min	217.8 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C	1.35 A

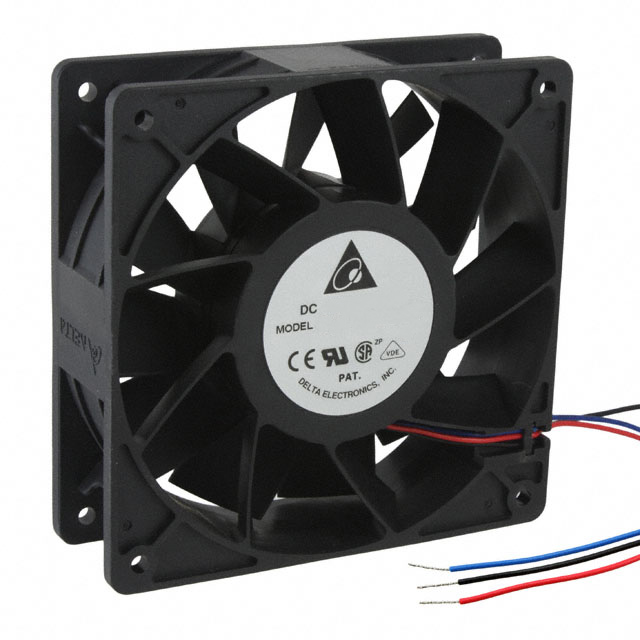

Delta Electronics PFB1224UHE-T50F	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	48 W	66.5 dB(A)	1.412 in H2O	351.7 Pa	5500 RPM	0.838 lb	380.11 g	3 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	7.08 mł/min	252.9 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C		IP55 - Dust Protected Water Resistant

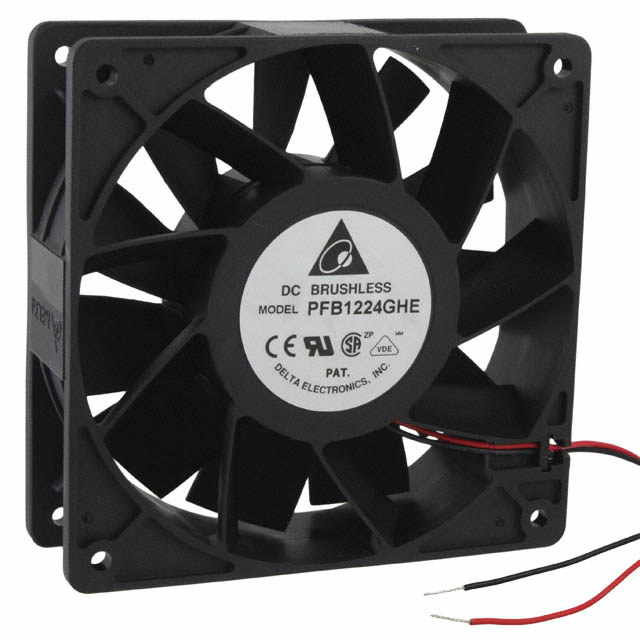

Delta Electronics PFB1224GHE-T500	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	32.4 W	64 dB(A)	1.075 in H2O	267.8 Pa	4800 RPM	0.838 lb	380.11 g	2 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm		24 VDC	6.1 m³/min	217.8 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C	1.35 A	IP55 - Dust Protected Water Resistant
Delta Electronics PFB1224EHE-R00	Plastic	70000 Hrs	14 VDC	26.5 VDC	Plastic	21.6 W	59 dB(A)	0.751 in H2O	187 Pa	4000 RPM	0.838 lb	380.11 g	3 Wire Leads	120 mm	120 mm	Tubeaxial	38 mm	Locked Rotor Sensor	24 VDC	5.08 mł/min	181.3 CFM	CE CSA UL VDE	Ball	-10 °C	60 °C	900 mA
