CMLB063T Series

Catalog

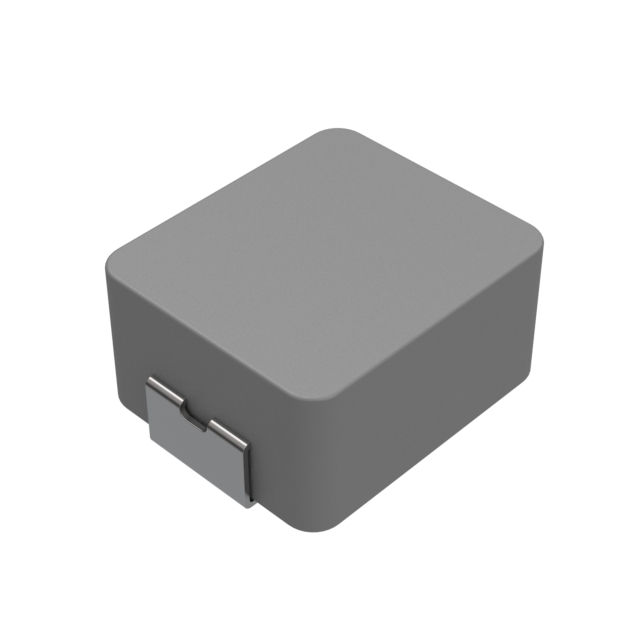

FIXED IND 8.2UH 4.5A 60MOHM SMD

Part	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance Frequency - Test	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Inductance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Package / Case	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLB063T-8R2MS	Surface Mount	4.5 A	0.118 "	3 mm	Shielded	100 kHz	4.92 A	6.95 mm	0.26 in	6.6 mm	0.274 in	8.2 µH	20 %	-55 C	125 °C	Metal	Nonstandard
Delta Electronics/Cyntec CMLB063T-R68MS	Surface Mount	16 A	0.118 "	3 mm	Shielded	100 kHz	15 A	6.95 mm	0.26 in	6.6 mm	0.274 in	0.68 µH	20 %	-55 C	125 °C	Metal	Nonstandard	5.3 mOhm
Delta Electronics/Cyntec CMLB063T-330MS	Surface Mount	2.1 A	0.118 "	3 mm	Shielded	100 kHz	2 A	6.95 mm	0.26 in	6.6 mm	0.274 in	33 µH	20 %	-55 C	125 °C	Metal	Nonstandard		284 mOhm
Delta Electronics/Cyntec CMLB063T-150MS	Surface Mount	2.7 A	0.118 "	3 mm	Shielded	100 kHz	3.3 A	6.95 mm	0.26 in	6.6 mm	0.274 in	15 µH	20 %	-55 C	125 °C	Metal	Nonstandard	150 mOhm
Delta Electronics/Cyntec CMLB063T-R36MS	Surface Mount	20 A	0.118 "	3 mm	Shielded	100 kHz	22 A	6.95 mm	0.26 in	6.6 mm	0.274 in	360 nH	20 %	-55 C	125 °C	Metal	Nonstandard		3.8 mOhm
Delta Electronics/Cyntec CMLB063T-1R2MS	Surface Mount	11.7 A	0.118 "	3 mm	Shielded	100 kHz	12.5 A	6.95 mm	0.26 in	6.6 mm	0.274 in	1.2 µH	20 %	-55 C	125 °C	Metal	Nonstandard		8.6 mOhm
Delta Electronics/Cyntec CMLB063T-4R7MS	Surface Mount	6 A	0.118 "	3 mm	Shielded	100 kHz	5.5 A	6.95 mm	0.26 in	6.6 mm	0.274 in	4.7 ÁH	20 %	-55 C	125 °C	Metal	Nonstandard	33 mOhm
Delta Electronics/Cyntec CMLB063T-R10MS	Surface Mount	40 A	0.118 "	3 mm	Shielded	100 kHz	48 A	6.95 mm	0.26 in	6.6 mm	0.274 in	100 nH	20 %	-55 C	125 °C	Metal	Nonstandard		0.99 mOhm
Delta Electronics/Cyntec CMLB063T-1R5MS	Surface Mount	11 A	0.118 "	3 mm	Shielded	100 kHz		6.95 mm	0.26 in	6.6 mm	0.274 in	1.5 µH	20 %	-55 C	125 °C	Metal	Nonstandard	10.5 mOhm
Delta Electronics/Cyntec CMLB063T-2R2MS	Surface Mount	8.5 A	0.118 "	3 mm	Shielded	100 kHz	10.5 A	6.95 mm	0.26 in	6.6 mm	0.274 in	2.2 µH	20 %	-55 C	125 °C	Metal	Nonstandard		15 mOhm
