56K107 Series
Manufacturer: Rosenberger
Beta
⌘K

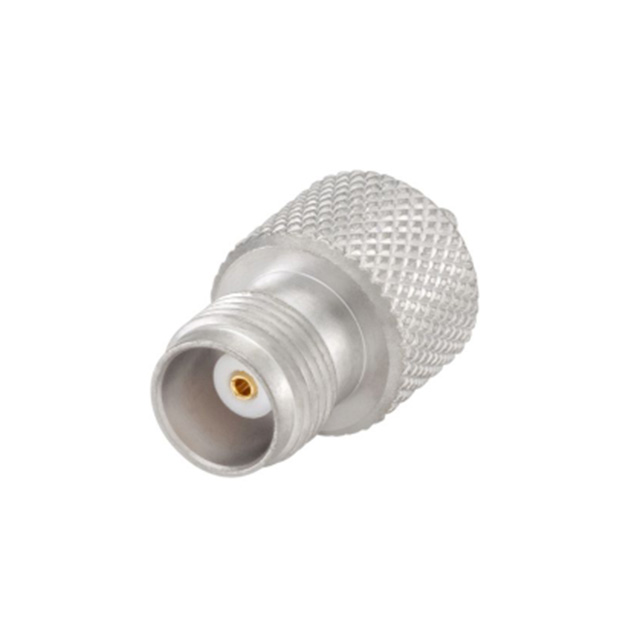

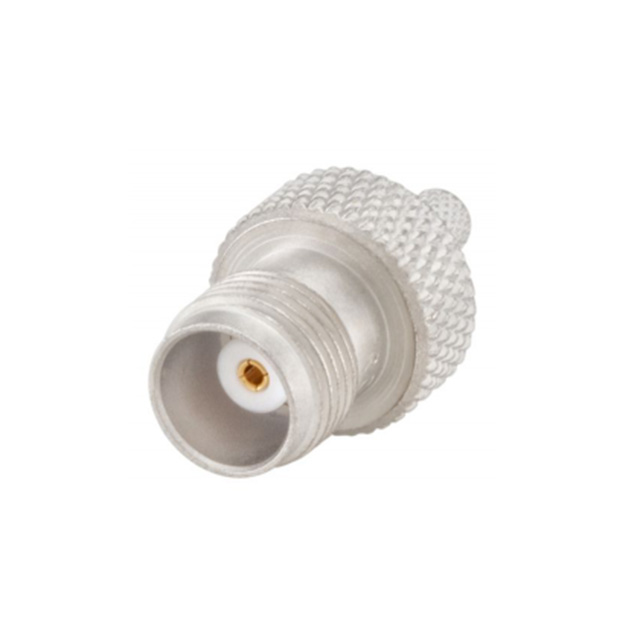

CONN TNC JACK STR 50OHM CRIMP
| Part | Mating Cycles | Center Contact Plating | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Includes | Contact Termination | Center Contact Material | Fastening Type | Frequency - Max [Max] | Shield Termination | Housing Color | Number of Ports | Connector Type | Mounting Type | Connector Style | Impedance | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Gold | White Bronze | Brass | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 V | 1 Connector 1 Contact 1 Ferrule | Crimp | Beryllium Copper | Threaded | 10 GHz | Crimp | Silver | 1 | Female Socket Jack | Free Hanging (In-Line) | TNC | 50 Ohms | 188A 316 RG-174A |
