QS186 Series

Catalog

LASER EMITTER, MULTI-BEAM® QS186LE SERIES, SMALL SPOT, 30 M, CLASS 1, 10 TO 30 VDC

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Sensing Method	Sensing Distance	Sensing Distance	Connection Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Cable Length	Cable Length

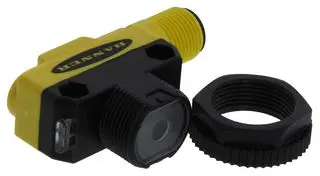

BANNER ENGINEERING QS186LEQ8	IEC IEC IP67 IP67 NEMA 6P	50 °C	-10 °C	LED	Through-Beam	590.551 in	15 m	Connector	10 VDC	30 VDC
BANNER ENGINEERING QS186LE211	IEC IEC IP67 IP67 NEMA 6P	50 °C	-10 °C	RED (650nm)	Through-Beam	590.551 in	15 m	Cable	10 VDC	30 VDC	78.74 "	2 m

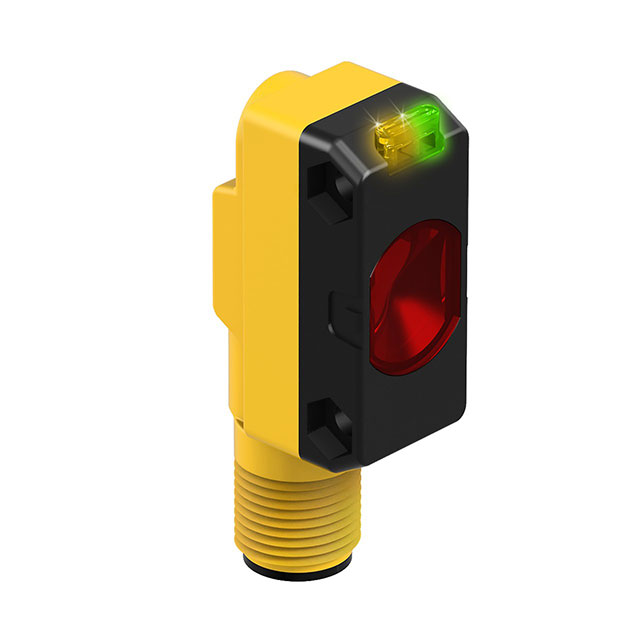

BANNER ENGINEERING QS186EBQ8	IEC IEC IP67 IP67 NEMA 6P	70 °C	-20 ░C	LED	Through-Beam	118.11 in	3 m	Connector	10 VDC	30 VDC
BANNER ENGINEERING QS186LE14Q5	IEC IEC IP67 IP67 NEMA 6P	50 °C	-10 °C	RED (650nm)	Through-Beam	590.551 in	15 m	Connector	10 VDC	30 VDC
BANNER ENGINEERING QS186LE	IEC IEC IP67 IP67 NEMA 6P	50 °C	-10 °C	LED	Through-Beam	590.551 in	15 m	Cable	10 VDC	30 VDC	78.74 "	2 m

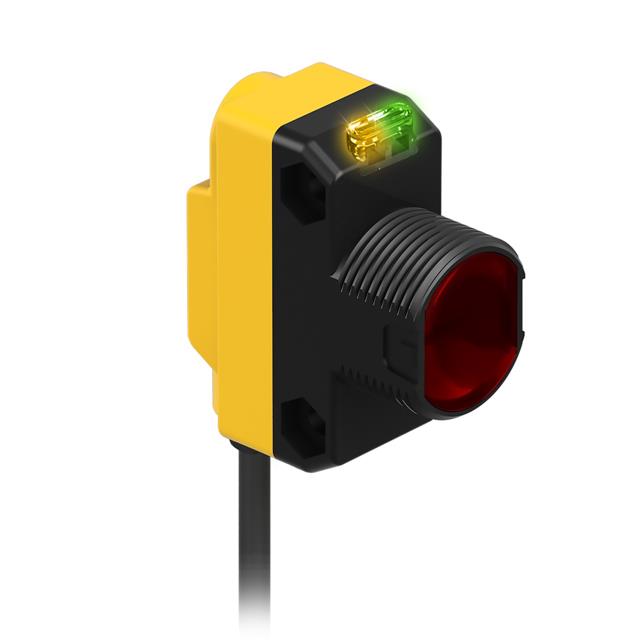

BANNER ENGINEERING QS186E W/30	IEC IEC IP67 IP67 NEMA 6P	70 °C	-20 ░C	Infrared	Through-Beam	787.402 in	2000 cm	Cable	10 VDC	30 VDC	354.33 in	9 m
BANNER ENGINEERING QS186E	IEC IEC IP67 IP67 NEMA 6P	70 °C	-20 ░C	LED	Through-Beam	787.402 in	2000 cm	Cable	10 VDC	30 VDC	78.74 "	2 m
BANNER ENGINEERING QS186LE211Q5	IEC IEC IP67 IP67 NEMA 6P	50 °C	-10 °C	RED (650nm)	Through-Beam	590.551 in	15 m	Connector	10 VDC	30 VDC
BANNER ENGINEERING QS186EQ	IEC IEC IP67 IP67 NEMA 6P	70 °C	-20 ░C	LED	Through-Beam	787.402 in	2000 cm	Connector	10 VDC	30 VDC
BANNER ENGINEERING QS186EQ8	IEC IEC IP67 IP67 NEMA 6P	70 °C	-20 ░C	LED	Through-Beam	787.402 in	2000 cm	Connector	10 VDC	30 VDC
