7105-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

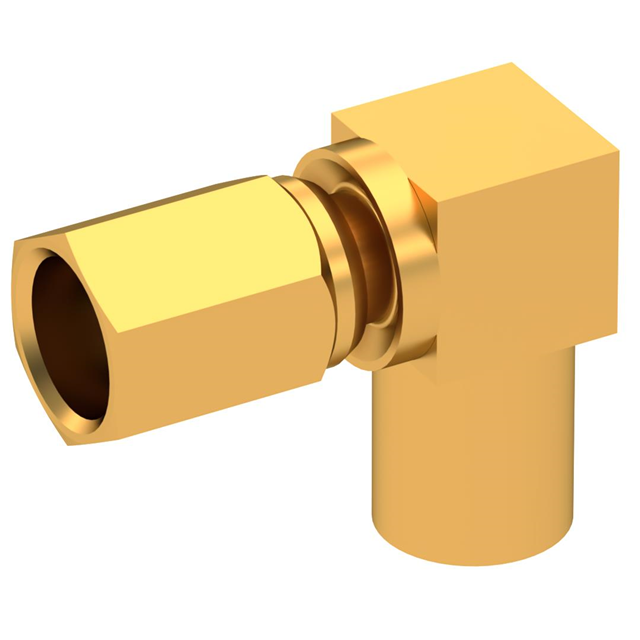

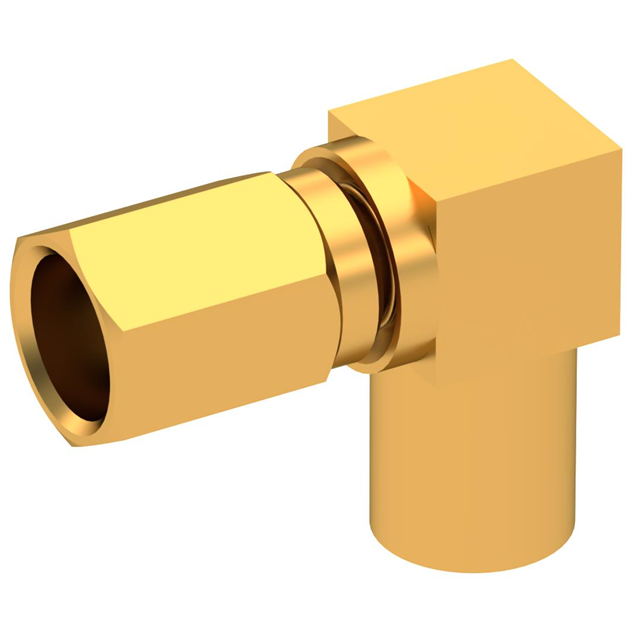

SSMC F RA NA CR 2/50S
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Mating Cycles | Dielectric Material | Body Finish | Center Contact Plating | Shield Termination | Mounting Type | Contact Termination | Fastening Type | Number of Ports | Center Contact Material | Housing Color | Cable Group | Cable Group | Frequency - Max [Max] | Impedance | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | Crimp | Free Hanging (In-Line) Right Angle | Crimp | Threaded | 1 | Beryllium Copper | Gold | 196 | RG-178 | 12.4 GHz | 50 Ohms | Female Socket Plug | SSMC |
 Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | Crimp | Free Hanging (In-Line) Right Angle | Crimp | Threaded | 1 | Beryllium Copper | Gold | RD-316 RG-316DS | 12.4 GHz | 50 Ohms | Female Socket Plug | SSMC | |
Radiall USA, Inc. | -65 ░C | 165 °C | 250 V | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | Crimp | Free Hanging (In-Line) Right Angle | Crimp | Threaded | 1 | Beryllium Copper | Gold | 316 | RG-174 | 12.4 GHz | 50 Ohms | Female Socket Plug | SSMC |
