SM24B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

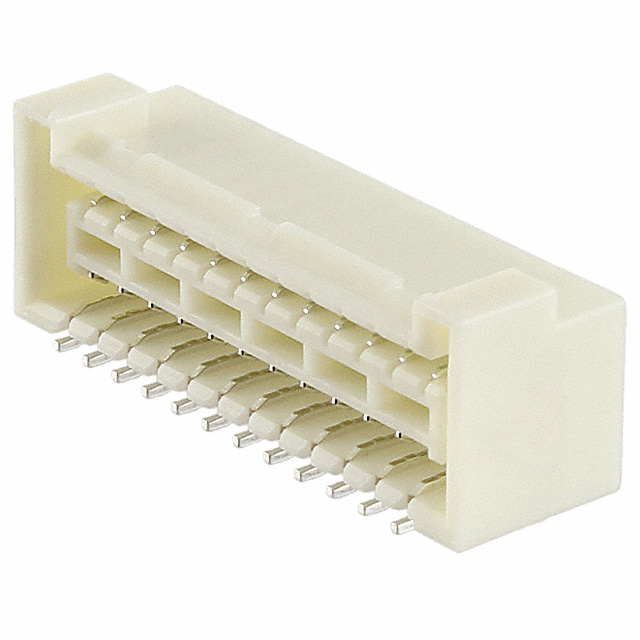

CONN HEADER SMD R/A 24POS 1.5MM
| Part | Fastening Type | Contact Material | Insulation Material | Connector Type | Number of Rows [custom] | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Insulation Height | Insulation Height | Current Rating (Amps) | Number of Positions Loaded | Style | Voltage Rating | Number of Positions | Termination | Contact Type | Contact Shape | Mounting Type | Contact Finish - Post | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Locking Ramp | Copper Alloy | Nylon Polyamide (PA) | Header | 2 | Natural | 85 °C | -25 °C | Shrouded - 4 Wall | 7.85 mm | 0.309 in | 2 A | All | Board to Cable/Wire | 100 V | 24 | Solder | Outer Shroud Contact | Rectangular | Right Angle Surface Mount | Tin | UL94 V-0 |
