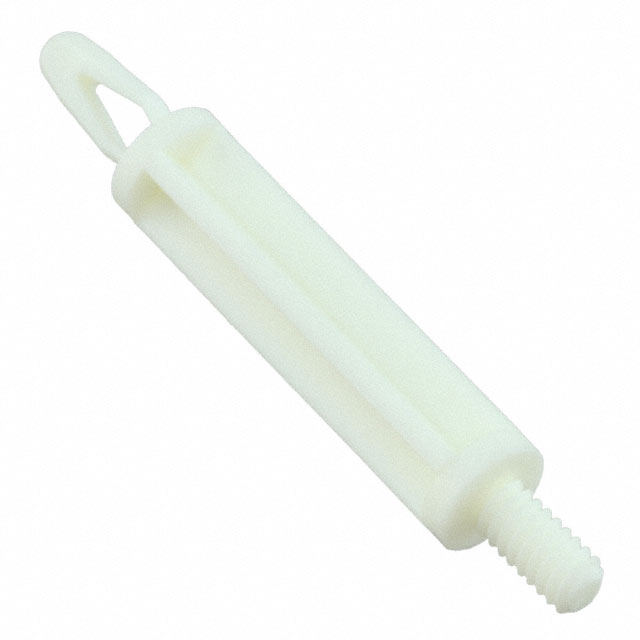

CBS THREAD MALE 3/4" NYLON

Part	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Between Board Height	Features	Holding Type	Material	Length - Overall [x]	Length - Overall [x]	Mounting Type	Between Board Height	Length - Overall	Length - Overall
Essentra Components CBS-TM-12-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	19.05 mm	0.75 "	0.75 "	6-32 Thread	Snap Lock	Nylon	36.9 mm	1.453 in	Threaded Stud
Essentra Components CBS-TM-10-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	15.88 mm	5 8	0.625 in	6-32 Thread	Snap Lock	Nylon	33.7 mm	1.327 in	Threaded Stud
Essentra Components CBS-TM-24-19	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	38.1 mm		1.5 in	6-32 Thread	Snap Lock	Nylon	55.8 mm	2.197 in	Threaded Stud
Essentra Components CBS-TM-12-19	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	19.05 mm	0.75 "	0.75 "	6-32 Thread	Snap Lock	Nylon	36.9 mm	1.453 in	Threaded Stud
Essentra Components CBS-TM-18-19	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	28.58 mm		1.125 in	6-32 Thread	Snap Lock	Nylon	46.4 mm	1.827 in	Threaded Stud
Essentra Components CBS-TM-22-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in		34.93 mm	1.375 in	6-32 Thread	Snap Lock	Nylon	52.73 mm	2.076 in	Threaded Stud	1 3/8
Essentra Components CBS-TM-14-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	22.23 mm	0.875 in	0.875 in	6-32 Thread	Snap Lock	Nylon	40 mm	1.575 in	Threaded Stud
Essentra Components CBS-TM-6-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	9.53 mm	0.375 "	0.375 in	6-32 Thread	Snap Lock	Nylon			Threaded Stud		1.075 in	27.3 mm
Essentra Components CBS-TM-4-01	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	0.25 in		6.35 mm	6-32 Thread	Snap Lock	Nylon	24.21 mm	0.953 in	Threaded Stud
Essentra Components CBS-TM-20-19	3.99 mm	0.157 "	1.57 mm	0.062 in	0.0625 in	31.75 mm		1.25 in	6-32 Thread	Snap Lock	Nylon	49.6 mm	1.953 in	Threaded Stud
