5499/19C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

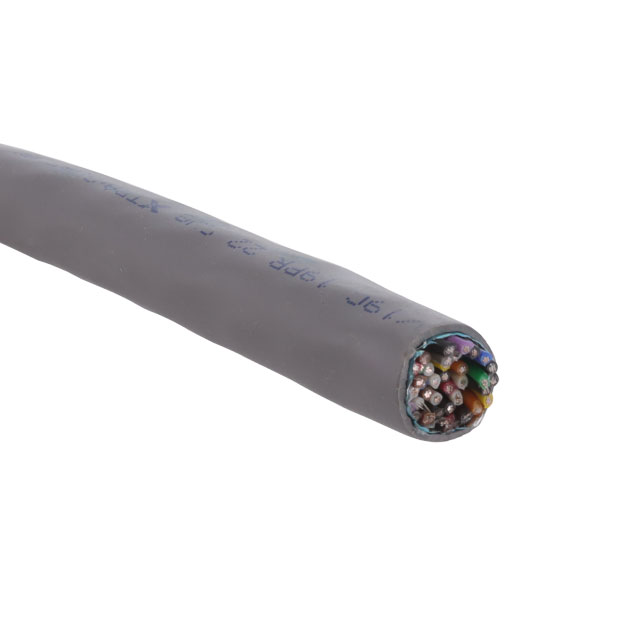

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 19 PAIR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Jacket (Insulation) Material | Voltage | Conductor Material | Length [x] | Length [x] | Number of Conductors | Conductor Insulation | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Jacket Color | Ratings | Features | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Communication Control | -35 °C | 105 ░C | 24 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | 100 ft | 30.5 m | 38 | Poly-Vinyl Chloride (PVC) | Foil | 0.813 mm | 0.032 in | Multi-Pair | 11 mm | 0.433 " | Slate | ISO 10993 UL Style 2464 | Biological Compatibility Drain Wire Rip Cord | 7 | 32 AWG |
 ALPHA WIRE | 100 % | Aluminum | Communication Control | -35 °C | 105 ░C | 24 AWG | Poly-Vinyl Chloride (PVC) | 300 VDC | Copper Tinned | 38 | Poly-Vinyl Chloride (PVC) | Foil | 0.813 mm | 0.032 in | Multi-Pair | 11 mm | 0.433 " | Slate | ISO 10993 UL Style 2464 | Biological Compatibility Drain Wire Rip Cord | 7 | 32 AWG |
