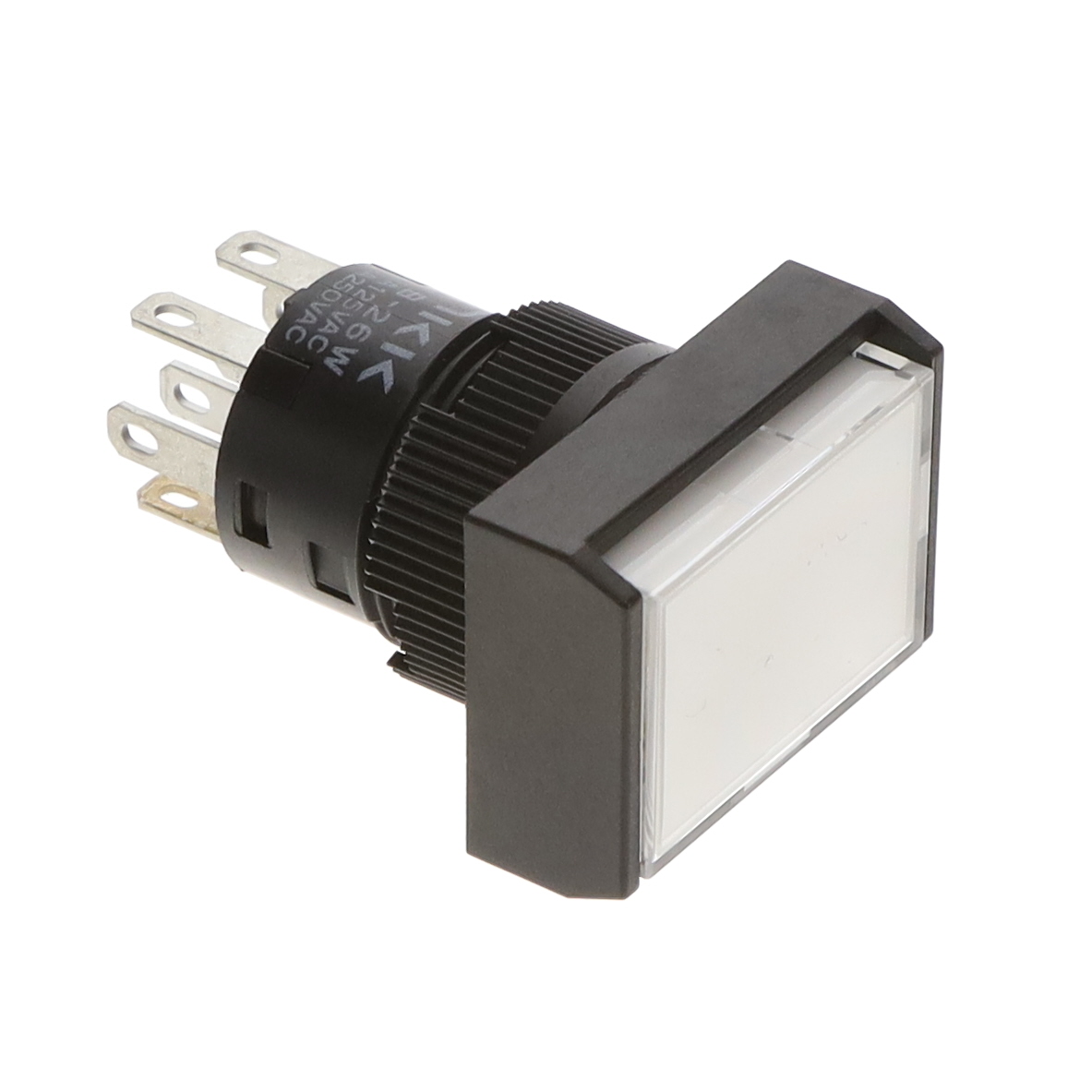

YB26WR Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Mechanical Life | Electrical Life | Termination Style | Circuit | Type | Actuator Marking | Color - Actuator/Cap | Illumination Voltage (Nominal) | Illumination Type, Color | Current Rating (Amps) | Switch Function | Features | Actuator Type | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 12 VDC | LED Red | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
 NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 5 VDC | Green LED | 0.4 VA | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 28 V | 50 °C | -25 °C | 28 V | 16 mm | IP65 - Dust Tight Water Resistant |

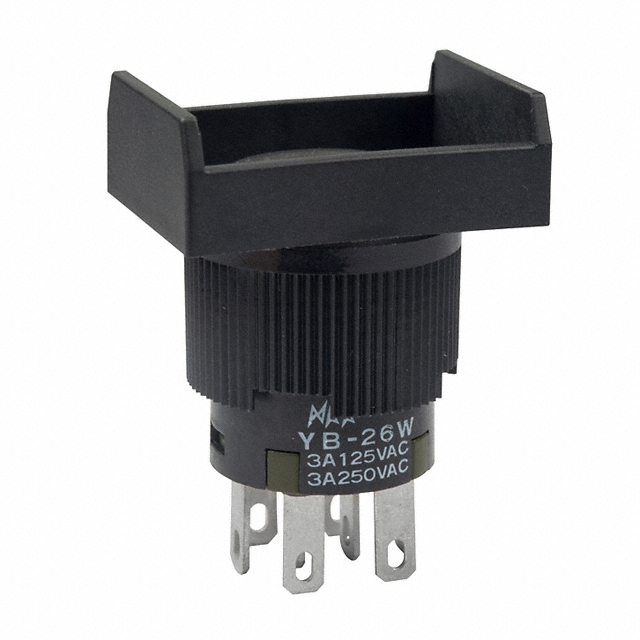

 NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Standard | No Marking | 3 A | On-On | Voltage Reduction Lighting | Plunger for Cap | Panel Mount Front | 125 V | 70 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant | |||
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Standard | No Marking | Clear | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 70 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant | ||
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 2.2 VDC | Green LED | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 3.6 VDC | Blue LED | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 24 V | Green/Red LED | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
 NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 24 V | Amber LED | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Illuminated Standard | No Marking | Clear | 24 V | LED Red | 3 A | On-On | Voltage Reduction Lighting | Button Rectangular | Panel Mount Front | 125 V | 50 °C | -25 °C | 30 V | 16 mm | IP65 - Dust Tight Water Resistant |
NKK Switches | 200000 Cycles | 100000 Cycles | Solder Quick Connect - 0.110" (2.8mm) | DPDT | Standard | No Marking | 0.4 VA | On-On | Voltage Reduction Lighting | Plunger for Cap | Panel Mount Front | 28 V | 70 °C | -25 °C | 28 V | 16 mm | IP65 - Dust Tight Water Resistant |
