2.50mm, 3.50mm, 3.70mm CMC Header, Right-Angle, 48 Circuits, Gray
2.50mm, 3.50mm, 3.70mm CMC Header, Right-Angle, 48 Circuits, Gray
| Part | Material Flammability Rating | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Insulation Color | Features | Contact Finish - Post | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Contact Material | Insulation Material | Termination | Style | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Connector Type | Fastening Type | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

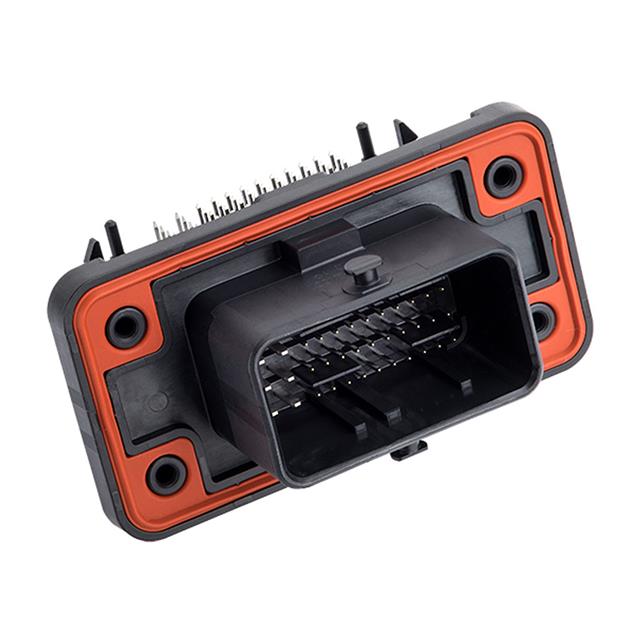

 Molex | UL94 V-0 | Male Pin | 125 °C | -40 °C | Shrouded - 4 Wall | Black | Board Guide Board Lock | Tin | All | 3.5 mm | 0.138 in | 1.7 " | 43.18 mm | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Board to Cable/Wire | 8 | 40 | Panel Mount Right Angle Through Hole | Header | |||
 Molex | Male Pin | Shrouded - 4 Wall | Brown | Board Guide Board Lock Mounting Flange | Tin | All | 1.063 in | 27 mm | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Board to Cable/Wire | Board Edge Right Angle Through Hole | Header | Latch Lock | Automotive | 48 | |||||||

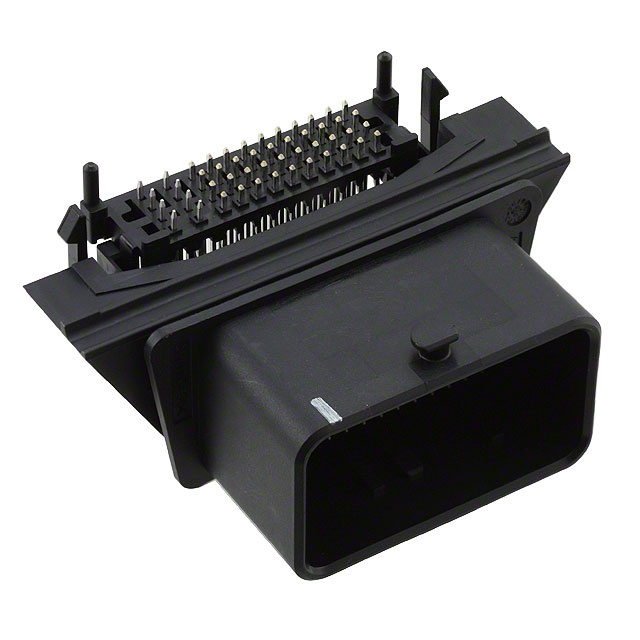

 Molex | Male Pin | Shrouded - 4 Wall | Black | Board Guide Board Lock Mounting Flange | Tin | All | 1.063 in | 27 mm | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Board to Cable/Wire | Board Edge Right Angle Through Hole | Header | Latch Lock | Automotive | 48 | |||||||

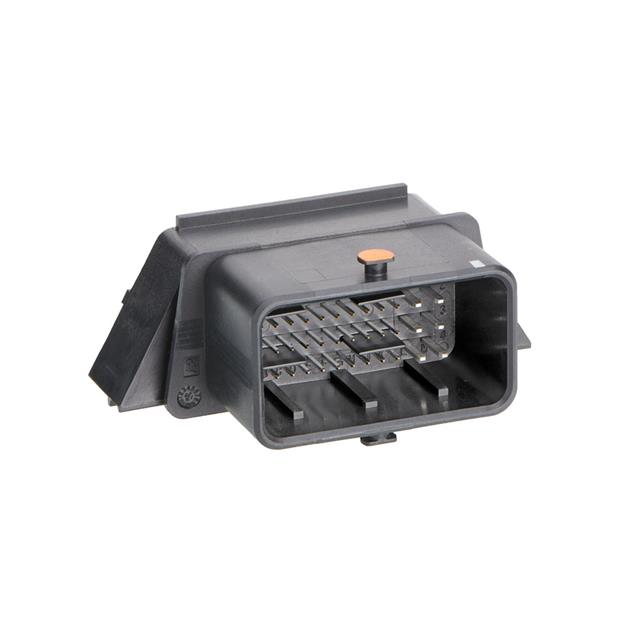

Molex | Male Pin | Shrouded - 4 Wall | Gray | Board Guide Board Lock Mounting Flange | Tin | All | 1.063 in | 27 mm | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Solder | Board to Cable/Wire | Board Edge Right Angle Through Hole | Header | Latch Lock | Automotive | 48 |
