OSTTH02 Series

Catalog

TERM BLOCK PLUG 2POS 90DEG 3.5MM

Part	Housing Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Contact Material	Material Flammability Rating	Torque - Screw	Torque - Screw	Positions Per Level	Pitch	Pitch	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Positions	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Contact Mating Finish	Features	Voltage - UL	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
On Shore Technology Inc. OSTTH022150	Brass	5 mm	6 mm	Brass	UL94 V-0	1.7 Lb-In	0.2 Nm	2	3.5 mm	0.138 "	Free Hanging (In-Line)	28 AWG	16 AWG	Plug for Unshrouded Header	2	1	115 °C	-40 C	Nickel	Interlocking (Side)	300 V	Screw
On Shore Technology Inc. OSTTH022160	Brass	5 mm	6 mm	Brass	UL94 V-0	1.7 Lb-In	0.2 Nm	2	3.5 mm	0.138 "	Free Hanging (In-Line)	28 AWG	16 AWG	Plug for Unshrouded Header	2	1	115 °C	-40 C	Nickel	Interlocking (Side)	300 V	Screw

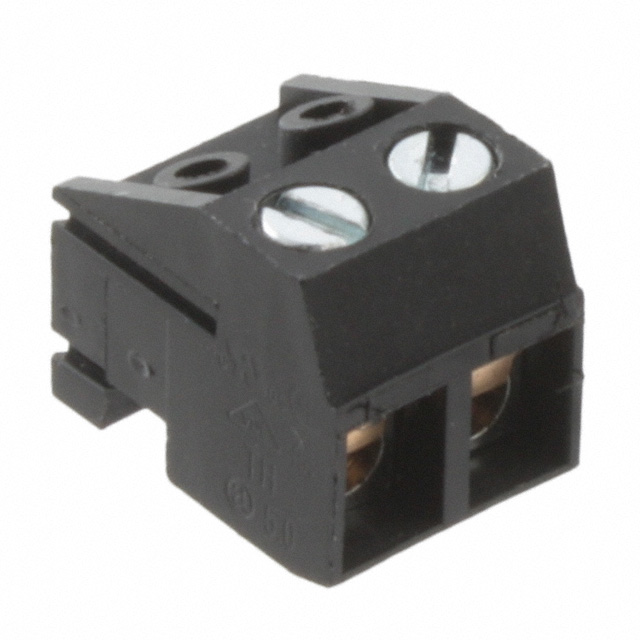

On Shore Technology Inc. OSTTH020100	Brass	5 mm	6 mm	Brass	UL94 V-0	3.5 Lb-In	0.4 Nm	2	5 mm	0.197 in	Free Hanging (In-Line)	22 AWG	14 AWG	Plug for Unshrouded Header	2	1	115 °C	-40 C	Nickel	Interlocking (Side)	300 V	Screw	1.5 mm˛	0.34 mm˛	Black	0.34 mm²	1.5 mm²
